Assembly Instructions for:
31600 Motor Carrier
PO Box 8, 644 2 nd Street
St. Paul Park, MN 55071
Form 12.121
Phone: (651) 459-9795
E-mail: [email protected]
On the Web: www.garelick.com
Revision Date: 08/07
Page 2

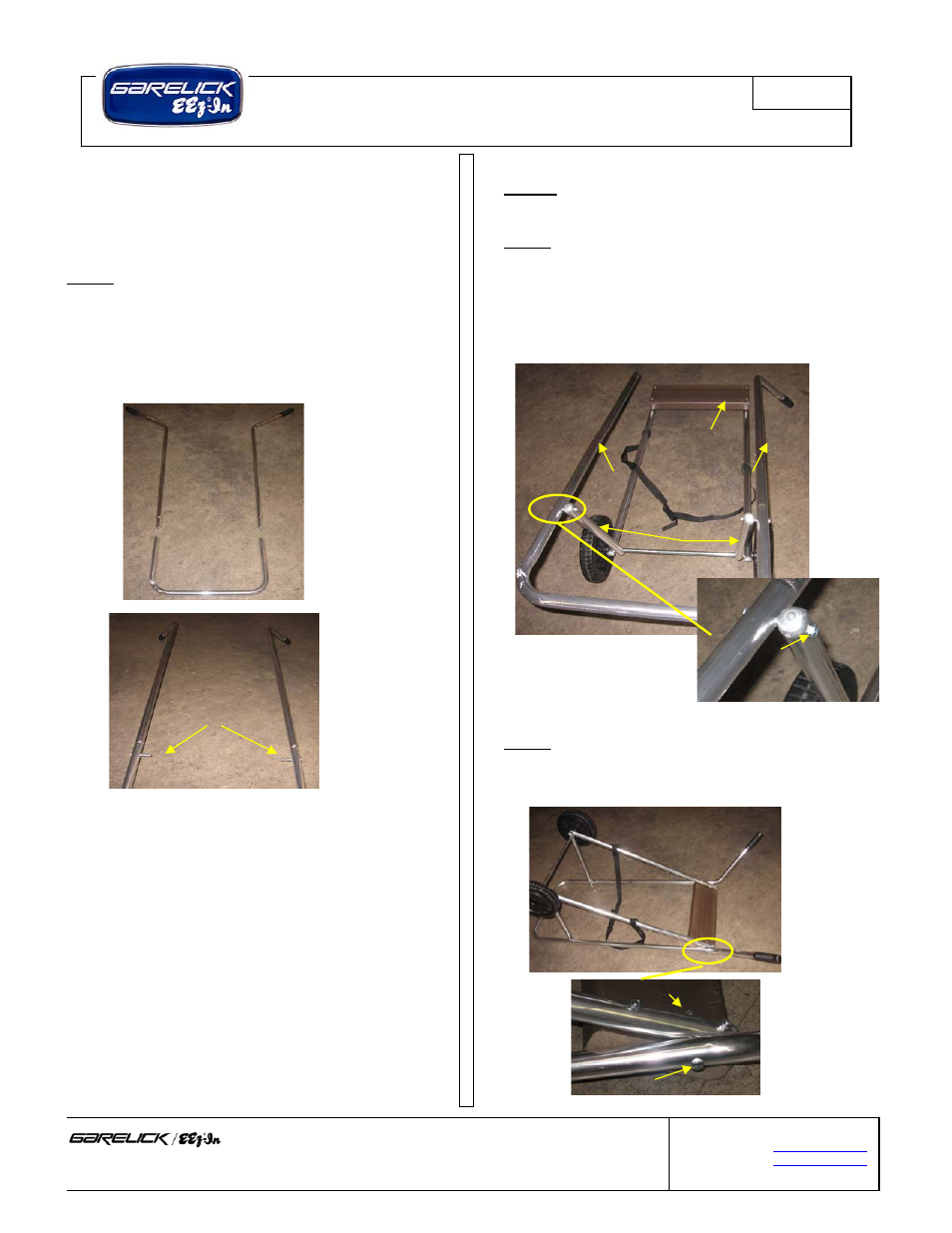

Step 5: Handle Assembly
Insert handles into short bottom U tube.
Align holes in assembly so that the handles will
point AWAY from each other and insert bolts.
NOTE: DO NOT add fasteners yet.
NOTE: Rigidity of cart is obtained through the following
assemblies; some force will be needed to align certain
holes.
Step 6:
Slide handles assembly into upright support assembly.
Insert bolts in bottom brace and finger tighten
fasteners.
NOTE: Handles will rest on outsides of upright support
tubes. Make sure plastic block is facing up as shown.
Step 7:
Align holes to fasten handles to upright support. (May
need to turn assembly “up-side-down”)
Insert bolt and finger tighten fasteners.
Bolts
Handles
Short U Tube
Block
Handle Assembly
Bottom Brace
Locknut
Locknut
Bolt
