Refer to Fig. 4
9. Mount the standoff bar (F) to the ladder by locating a
point where it abuts the pontoon log below its major
diameter. This will force the standoff to remain in the open
position when the ladder is in use. Check to make sure
there is enough clearance to fold the standoff bar flat to
the ladder verticals for stowage without contacting a step.
NOTE:
If you are unable to position the standoff below the
centerline of the pontoon and you must position the
standoff above the centerline, then reverse the standoff so
it folds down instead of up. This will force the standoff to
remain in the open position when the ladder is in use.
10. Drill a crosshole through the ladder with a 17/64"
diameter bit at the point where the standoff’s pivot hole
contacts the ladder vertical. Secure the standoff in place
with a screw (B) and locknut (C).
Refer to Fig. 1
12. Place the ladder in the “UP” and “STORED” position.
13. Locate the securing strap (H) in a place where it will be
easy to attach and remove.
IF TRAILERING YOUR BOAT, MAKE SURE THE LADDER IS
TIED SECURELY IN PLACE WITH AN ADDITIONAL LINE
OR STRAP FOR ADDED SAFETY.
OPERATING INSTRUCTIONS
Refer to Fig. 1
TO OPEN
Release securing strap. Lower the standoffs. Lift the outside
ladder vertical enough to clear the mounting bracket.
Swing the ladder over to the other mounting bracket.
Guide the ladder’s rollpin into the bracket’s grooves.
Gently let the ladder flip over and fall into the water. The
ladder is ready for boarding.
TO STOW
Lift the ladder up out of the water. Lift the outside ladder
vertical enough to clear the mounting bracket. Swing the
ladder over to the other mounting bracket. Guide the
ladder’s rollpin into the bracket’s grooves. Secure the
ladder in place with the securing strap.
Installation Instructions – “Swinger” Ladders
Form 12.242

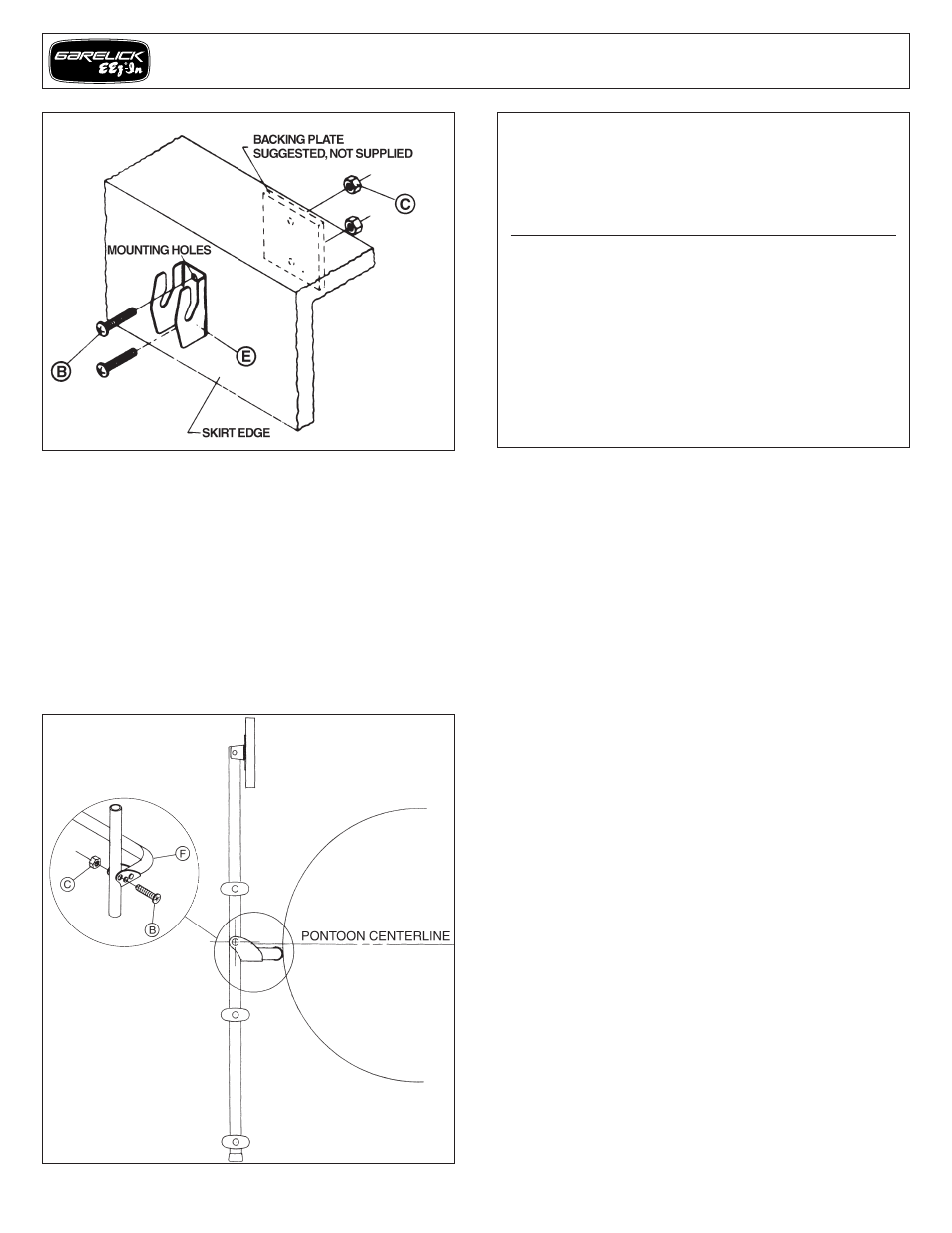

FIG. 4
Parts List
“Swinger” Ladder
Ref. Factory No.
Letter Part No. Req. Description
A 50.579 1 Pivot bracket
B 03.079 10 1 ⁄
4
-20 x 1 1 ⁄
2
" s.s. machine screw
C 03.221 11 1 ⁄
4
-20 s.s. locknut
D 03.082 1 1 ⁄
4
-20 x 1 3 ⁄
4
" s.s. machine screw
E 50.576 2 Mounting bracket
F 50.844 1 Standoff Bar
H 45.205 1 Velcro Strap
FIG. 3
