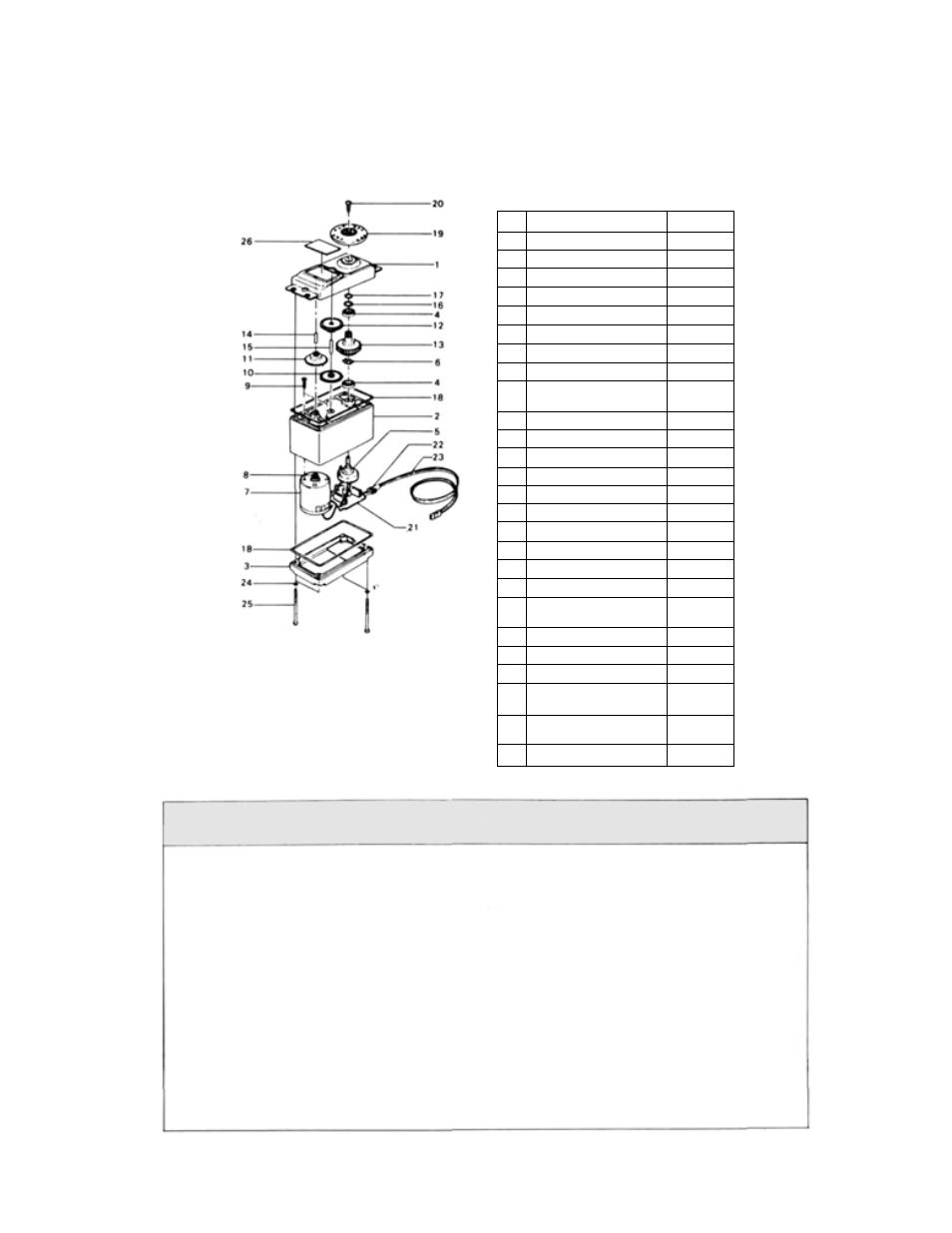

•FP-S9201 EXPLODED VIEW
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Part Name
Upper case
Middle case
Bottom case
Ball bearing L1060
VR
VR drive plate
Coreless motor
Pinion gear
Flat head Phillips screw
1.6x2.5
1st gear
2nd gear
3rd gear
Final gear
2nd shaft
Intermediate shaft
Spacer washer
Seal ring
0-ring 32.6 fiber black
Splined horn D
Binding head tapping
screw 1.6x10 black
S9201 amp
Grommet
SPBG, WRB-300B
0-ring for 1.6mm dia
screw
Pan head Phillips screw
2x27.5
S9201 nameplate
Part No.
S05770
S05780
S05790
S04130
I39995
S02753
S91215
S05530
J51008
S02751
S02471
S02807
S02809
S01351
S04287
S02486
S09415
S90420
S01239
J55204
AS11 28
S90045
AT2238
S90410
J50085
S60089
FACTORY REPAIR SERVICE
To insure prompt service, please follow the instructions given below.
1. Charge the batteries for at least 18 hours prior to shipment.
2. Return the system only. Not your complete installation. Remove the servos from their mounts and
remove the foam padding from the receiver.
3. Plugs or other modifications which interfere with factory test procedures will be returned to factory
standard at your expense.
4. Carefully pack all components individually, using sufficient packing material to prevent damage during
shipment.
5. Include a brief but thorough explanation of all problems and service required and tape it to the back
of the transmitter. Place a label describing the function of the servo on each servo.
6. Be sure to include your full address and tel. No., zip code inside the box as well as on the outside.
7. Include a packing list of all items being returned, and double check to make sure that all items are
packed.
8. Upon receipt of your equipment at the Futaba factory, an estimate of the cost of repair (over $25.00
only) will be sent to you. Your equipment will then be repaired and returned to you upon receipt of
payment or C.O.D. (cash).
This factory repair service applies only to the continental U.S.A., Hawaii, and Alaska.
