ADJUSTMENTS AND FLIGHT TECHNIQUES
TRIM
Trim Authority
When Trim adjustments are too sensitive (Ex:
One notch on the trim lever in either direction is
too much) the Trim Rate (Authority) can be
reduced, allowing finer adjustments.
ATL
This type of trim is most useful on the Throttle
channel. When the ATL function is used, the trim
lever will affect only the extreme LOW throttle
servo position. The servo position at HIGH throt-
tle is unaffected by the trim. Therefore, the idle
speed can be easily adjusted, while the full throt-
tle opening remains the same.
Cross Trims
Whether or not the Throttle (CH3) and Elevator
(CH2) trim levers are "crossed" can be selected.
Trim Memory
Trim settings can be memorized by the com-
puter, allowing the trim levers and knobs to be
returned to neutral position. The trim settings
can be left stored on the same program while
flying other models, and may also be copied to
other programs in the transmitter memory.

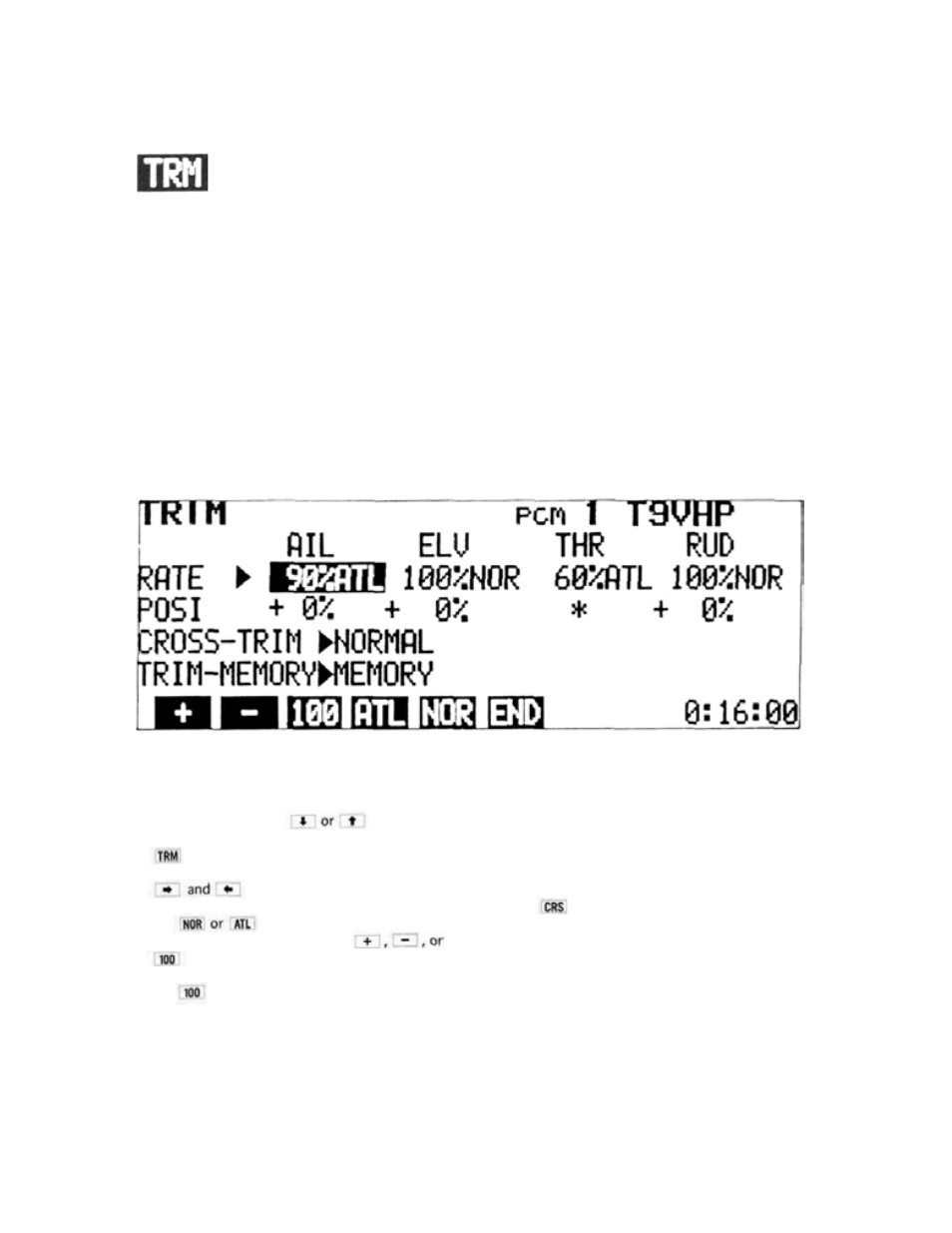

Setting Method
1) Select the EDIT screen and move the cursor
to Line 2 with the cursor key,
and display the TRIM screen by pressing the
program key.
2) Move the cursor to the RATE line and use the
cursor keys to select the chan-
nel to be set. Select normal trim or ATL with
the program key and set the
Trim Rate (Authority) with the
3) The trim position will be displayed on the
POSI line (except in the ATL mode).
4) If "crossed" trim levers are desired (Elev. trim
lever controls throttle trim and the normal
throttle trim lever controls elev. trim), move
the cursor to the CROSS-TRIM line and press
the program
key.
program key. Trim throw can be ad-
justed from 30% to 100% of normal. Pressing
the
key will return the rate to 100%.
[44]
