Move the cursor to the RATE line with the

cursor key. Set the Idle Up

Rate Knobs on the top left of the transmit-

ter to "0".

7) Set the rate for the desired throttle opening

at full LOW position of the T/C stick, using

To refine the shape of the Idle Up curve

below the Idle Up Point, move the cursor

to the CURV position and set the response
curve shape with the

program

key. Press the

key to return to a stan-

dard linear curve.

the program

key.

(When

the Idle-Up switch is ON.) Initially set the
rate for about 40% carburetor opening on

IDL1 and about 60 to 70% on IDL2 (actual

opening, not the computer display figure).

8) The

rates can be trimmed with the Idle Up

Knobs. The total rate set including the trim

amount is displayed in ( ). A buzzer sounds
when the knob is turned to the center posi-
tion (Trim = 0).

10) The Idle-Up Delay is set by moving the

cursor to the DELY position and setting the

Delay amount with the
key (Only Idle-Up 1 has a Delay feature).

• The curve at Idle-Up can be confirmed by turn-

ing on the IDLE-UP 1 and IDLE-UP 2 Switch.

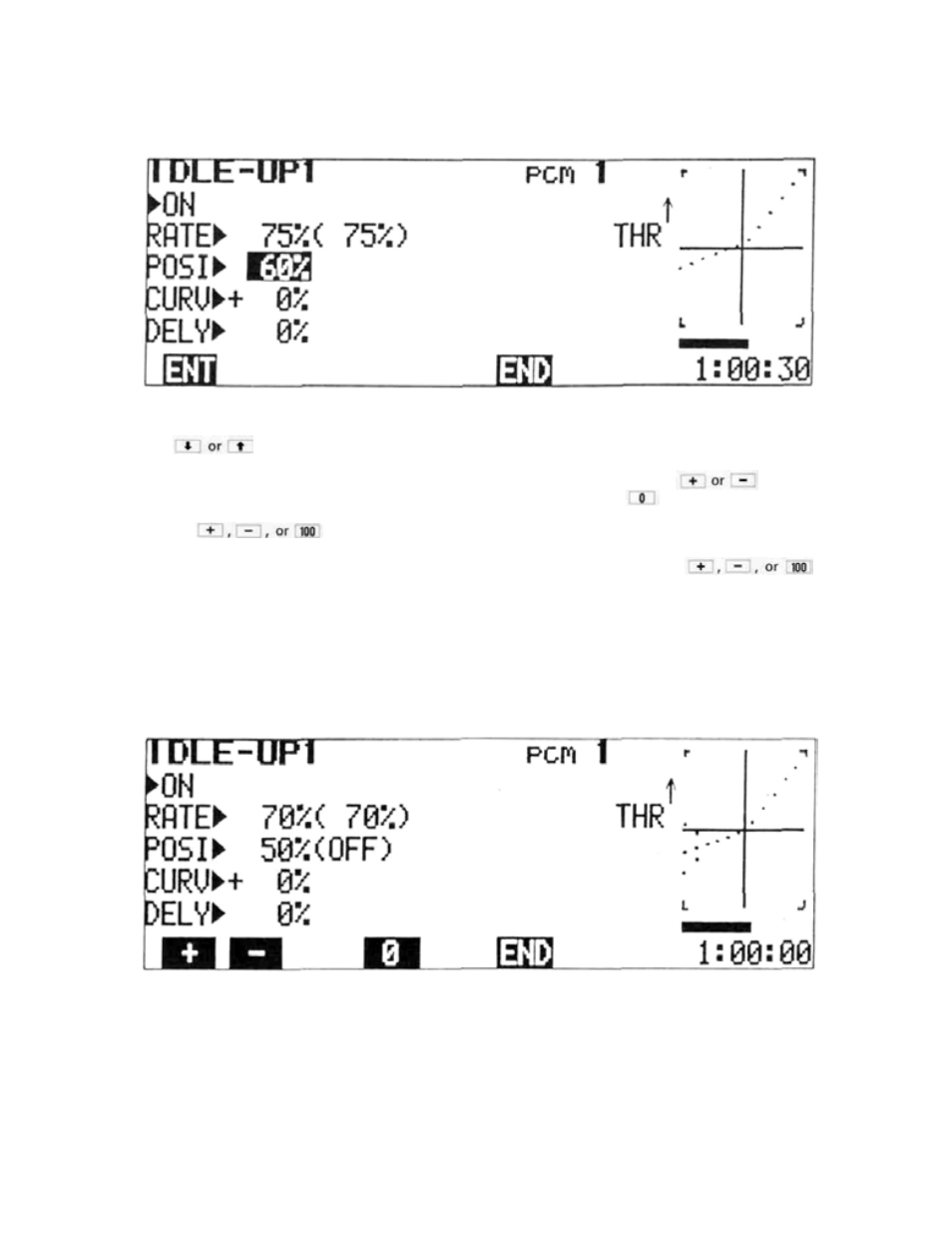

• Idle-Up rate setting example.

Idle-up 1 rate 50%
Idle-up 2 rate 7t)%

Position 50%

NOTE: Throttle mixing cannot be used in the

BASIC mixing mode.
