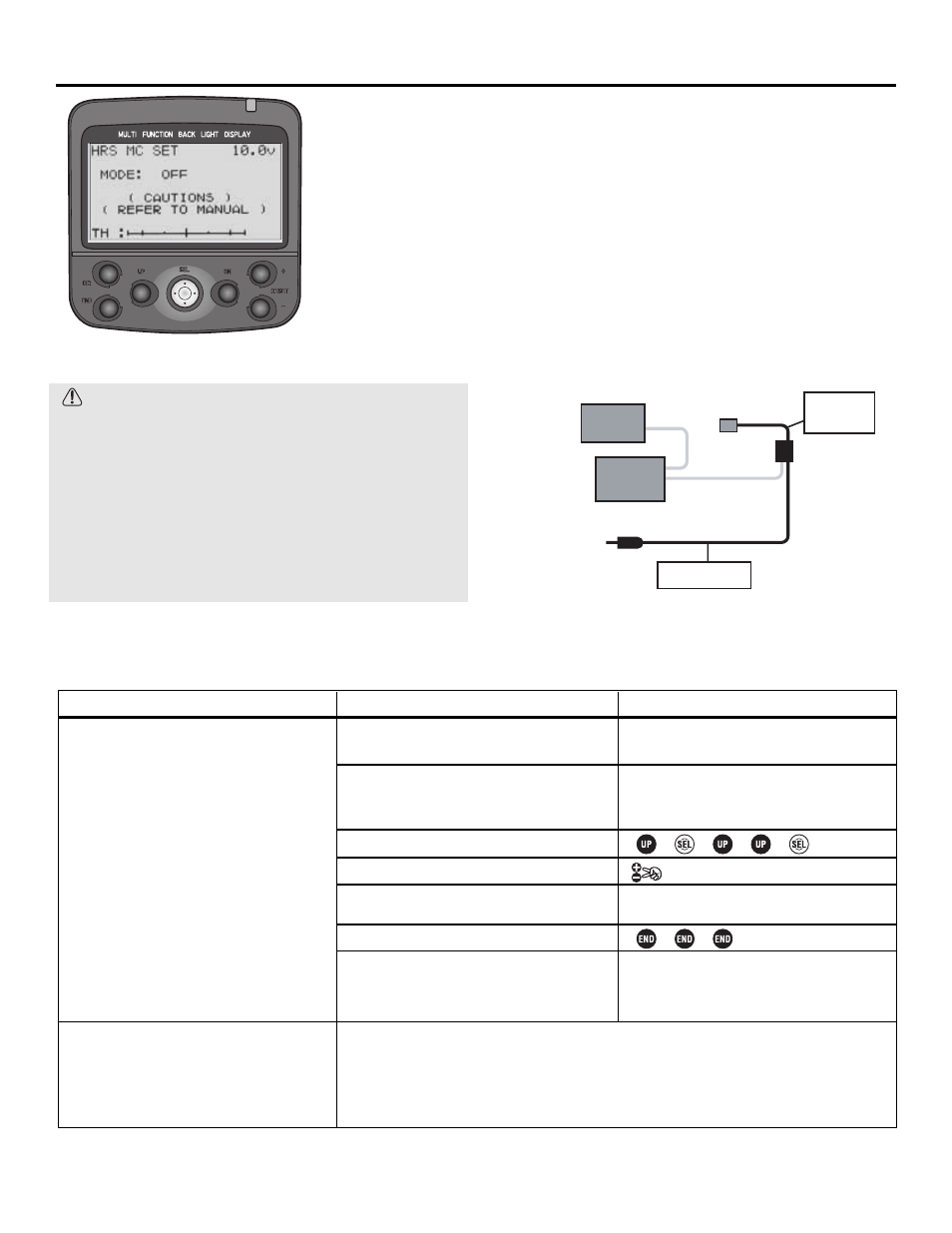

Fine Tuning ESC Readability (for HRS receivers ONLY)
MC-SETUP
Level
LV3 Only
DEFINITION: Adjusts frame rate of transmitter output to throttle channel for
setting up non-Futaba ESCs with HRS systems. HRS frame rate is faster than
many speed controls can properly read to complete their auto setups.
Important: Always try to setup your ESC normally first.
AVAILABLE FOR: HRS receivers ONLY.
ADJUSTABILITY: N/A.
INTERACTION: Must be used only when you are using an HRS receiver and the
ESC fails to set up normally. When setting up, do not use receiver; use only with
the proper cords (not included), connecting the speed control as shown below.
DESIRED END RESULT: Quick, easy setup of non-Futaba ESCs with
HRS receivers.
CAUTIONS:
•
ONLY use when you will be using HRS
receivers/modulation.
•
MUST use the two-way cord and DSC cord to connect
ESC directly to transmitter to complete this setup.
Reciever is not plugged into the ESC at this time.
•
Transmitter switch MUST be turned off after setup is
executed or the mode cannot be reset and the system
can not transmit properly. Warning will display
“
CAUTION! NOW MOD OFF”.
ESC
To DSC jack
(Transmitter)
(Not connect)
ESC
battery
DSC cord
Two-way
cord
44
GOAL:
Complete auto-setup of a non-Futaba ESC
that is not setting up properly on its own
when in use with an HRS receiver, while
using
LV3. (If using LV1 or LV2, first select
level
LV3, see p. 12.)
Where Next:
STEPS:
Be sure transmitter is in HRS mode. Be
sure battery is plugged in and ESC is on.
Turn transmitter off. Set up DSC/two-way
cord. Transmitter will power itself
up automatically.
Select
MC-SETUP
function.
Activate amp setup.
Follow manufacturer’s auto-setup instructions
for ESC.
Close function and menu.
TURN TRANSMITTER OFF.
(Transmitter can not transmit until power is
cycled.) Disconnect two-way cord and DSC.
INPUTS:
See modulation, p. 16.
See setup diagram above.
for at least one second.
Adjust subtrim until motor is not spinning at neutral (
SUB-TRIM): See p. 22.
Setup ABS braking (
ABS): See p. 24.
Adjust throttle/ESC speed to minimize wheel spin (
TH-SPEED): See p. 23.
Setup throttle acceleration for spin-free starts (
TH-ACCEL): See p. 26.
