Remote Panel Option

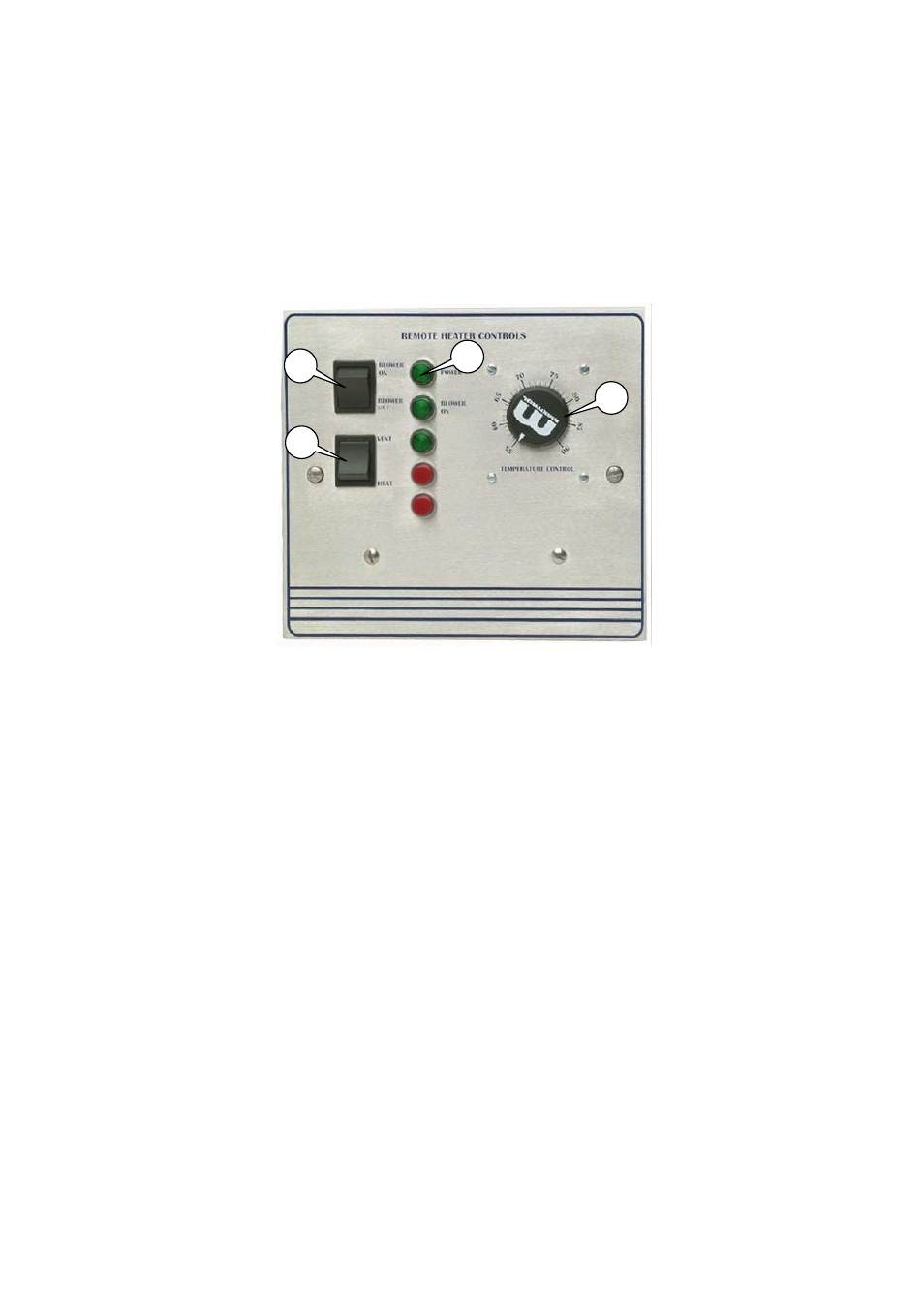

The Remote Panel is a device used to control the operation of the heater from a remote location. This
unit is available in both a “2 Position” or “3 Position” configuration and with or without a cooling output. It
also will accommodate both the Maxitrol discharge temperature dial and the Maxitrol space sensing
Selectrastat. It is important to understand the following Remote Panel controls and uses:
1. Blower On/Blower Off Switch - Used to control blower operation and tempering mode of unit.
The Blower On position sends power to the blower motor and the heater begins to ventilate. The
Blower Off position turns the blower and heating functionality off. This switch is disabled when
the “2 Position” remote panel is ordered and fan power is then controlled by the pre-wire
package.
2. Heat/Vent Switch – This switch is is used to control the tempering mode of the unit. The VENT
position will prevent the burner from operating and the heater will deliver untempered air. The
HEAT position will force the burner on and the unit will heat the incoming air. This switch
becomes a Heat/Vent/Cool switch when the cooling interlock is ordered. This option provides a
120V cooling output from the remote panel.
3. Lights- Displays the current status of unit features. The light definitions are as follows:
POWER - Illuminated when there is power to Remote Panel.
BLOWER ON - Illuminated when the blower motor is powered and airflow is present.
HEAT ON - Illuminates after pilot flame has established and main valve is powered.
LOW TEMP - (Optional) Illuminated when the Freeze-stat turns off blower.
CLOGGED FILTER – (Optional) Illuminated when the Intake Filters are Dirty.
4. Temperature Control – Controls the discharge temperature of a standard unit. The temperature
dial is replaced with Maxitrol Selectrastat in Space Heating applications and is used to control the
space temperature.
