PETROL BRUSH CUTTER

USER'S MANUAL

9

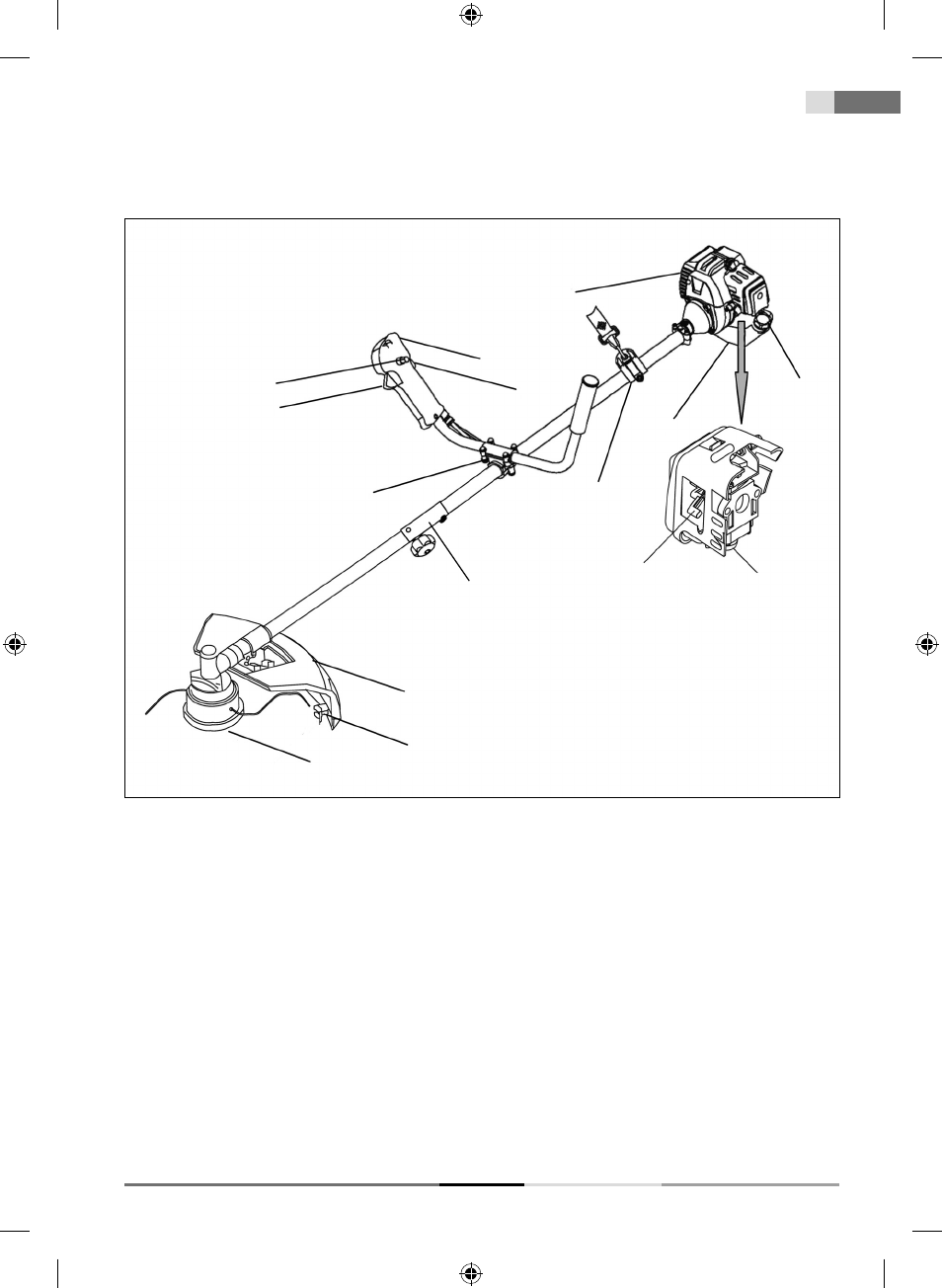

4. DESCRIPTION OF THE MACHINE

Description of the machine

1. Metal three tooth blade /

semi-automatic string trimmer head

2. Trimmer line cutter
3. Protective safety guard
4. Split shaft coupler
5. Handle

mount

6. Throttle trigger lock
7. Throttle trigger

8. Power

switch

9. Throttle safety switch
10. Engine
11. Fuel tank cap
12. Fuel tank
13. Shoulder strap hitch
14. Choke control lever
15. Fuel primer bulb

Included contents:

Brush cutter, string trimmer head, metal three tooth blade, shoulder strap, calibrated fuel mixing container,
tool set

1

2

3

4

5

6

7

8

9

10

13

12

11

15

14
