CHRISTIE DIGITAL SYSTEMS P35GPS Projector B-18
March, 2004
B-10: O
U T E R
T
I M I N G
B
E L T
T
E N S I O N E R
A
S S E M B L Y

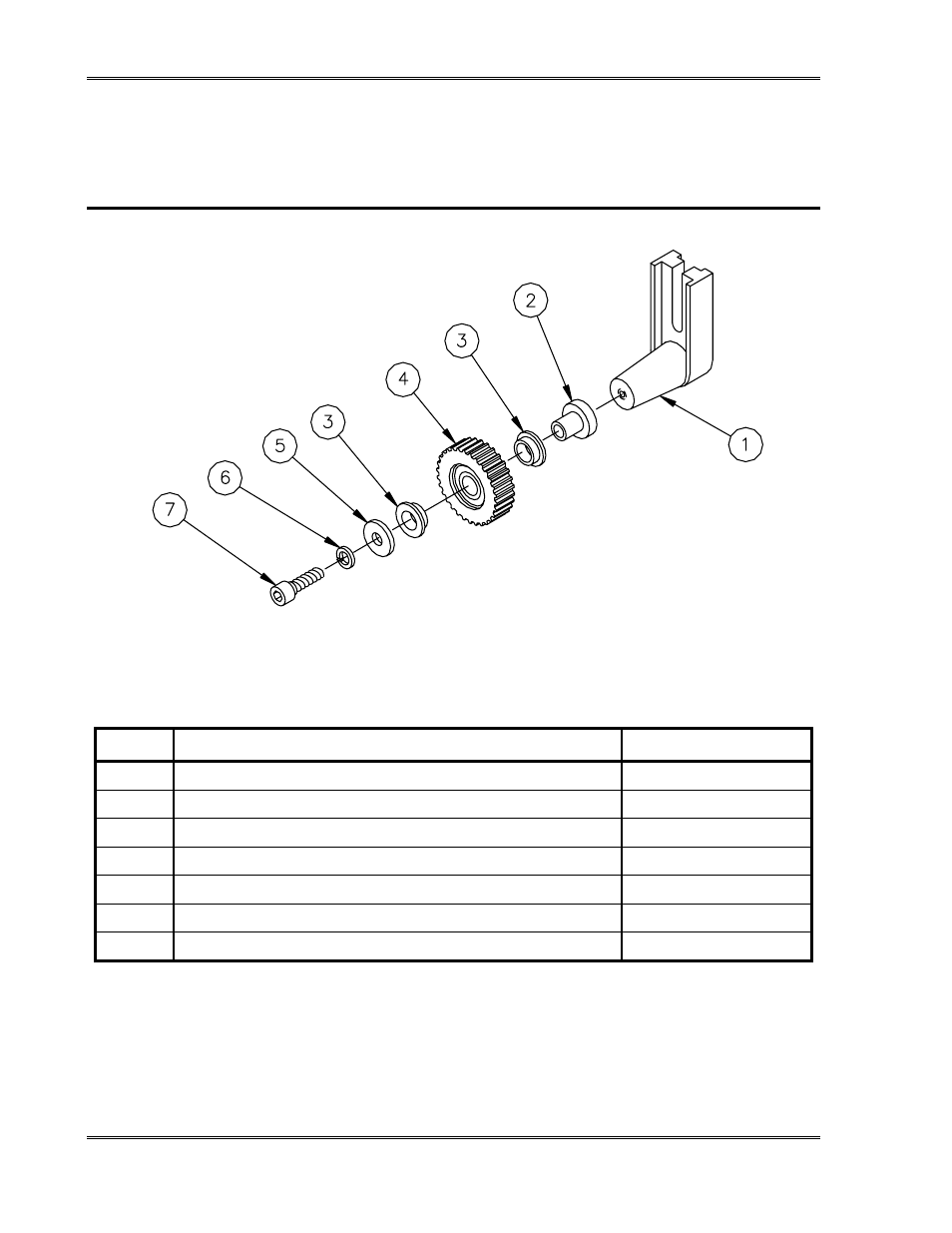

Figure B-10: Outer Timing Belt Tensioner Assembly (P/N 196055-001)
# Item Description Part Number
1 Base, Inner Belt Tensioner 194905-001
2 Standoff 119060P001
3 Roller, Isolator 121120-001
4 Roller, Non-Flanged Idler 194895-001
5 Cap 119150-001
6 Washer, Split, 0.25 in (0.635 cm) ID 598931-086
7 Screw, SHC, ¼-20 x 1.0 in (2.54 cm) L 515500-105
Table B-10: Outer Timing Belt Tensioner Assembly Parts List
