Christie Digital Systems P35GPS-MT User Manual
Page 19
P 3 5 G P S D u a l L e n s T u r r e t P r o j e c t o r
CHRISTIE DIGITAL SYSTEMS P35GPS Projector
3-4
March, 2004

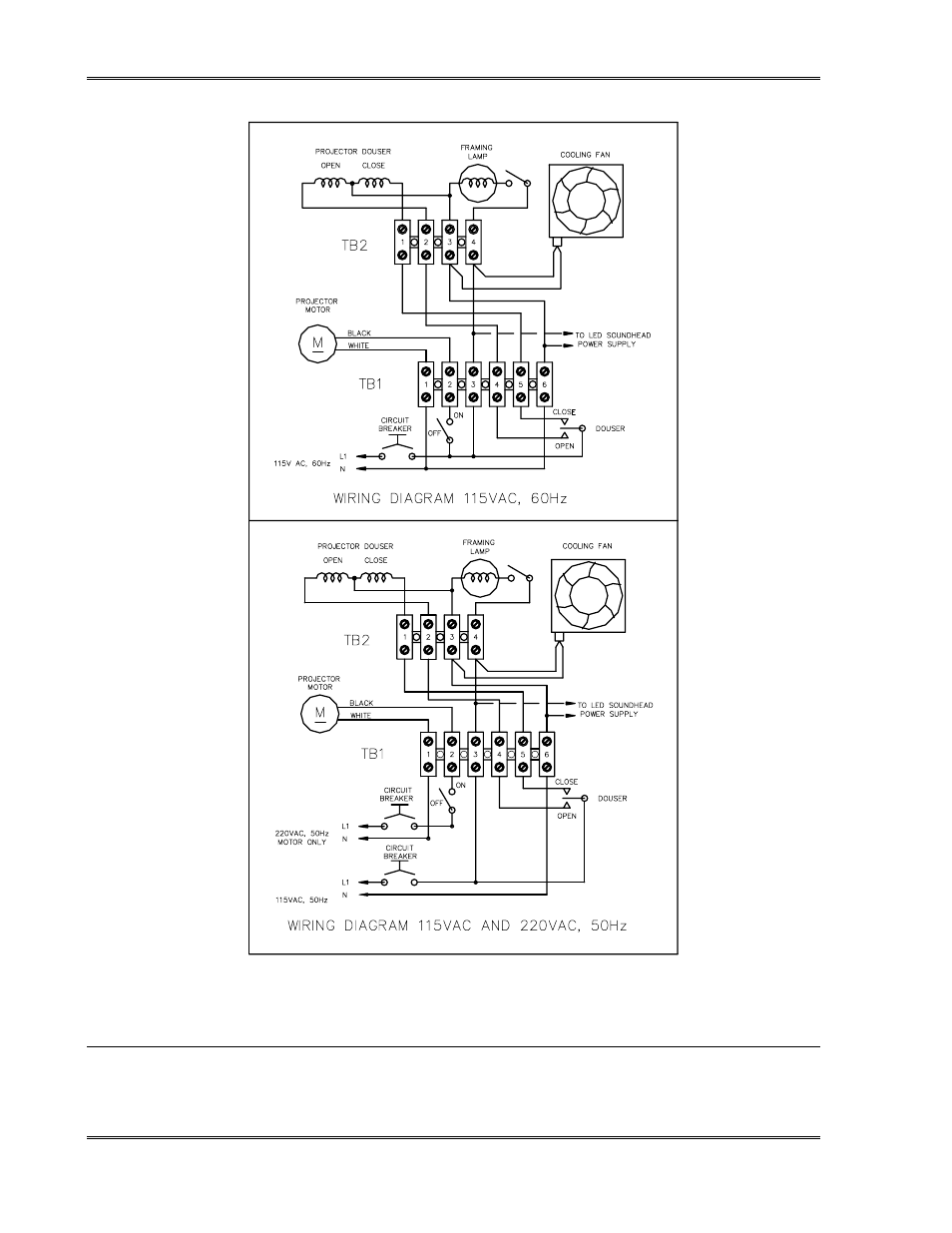

Figure 3-3: Projector Wiring Diagram (50- and 60-Hz models)
3 . 3 . 2 . A - C P
R O J E C T O R
W
I R I N G
A-C wiring to the projector requires stranded, 14-gauge wire. Be sure to follow local and
national electrical codes for A-C wiring. The terminal connection numbers in the table in
Figure 3-4 refer to terminals TB-1 in Figure 3-3.
