CHRISTIE DIGITAL SYSTEMS P35GPS Projector B-10
March, 2004
B-5: J
A C K S H A F T
A
S S E M B L Y

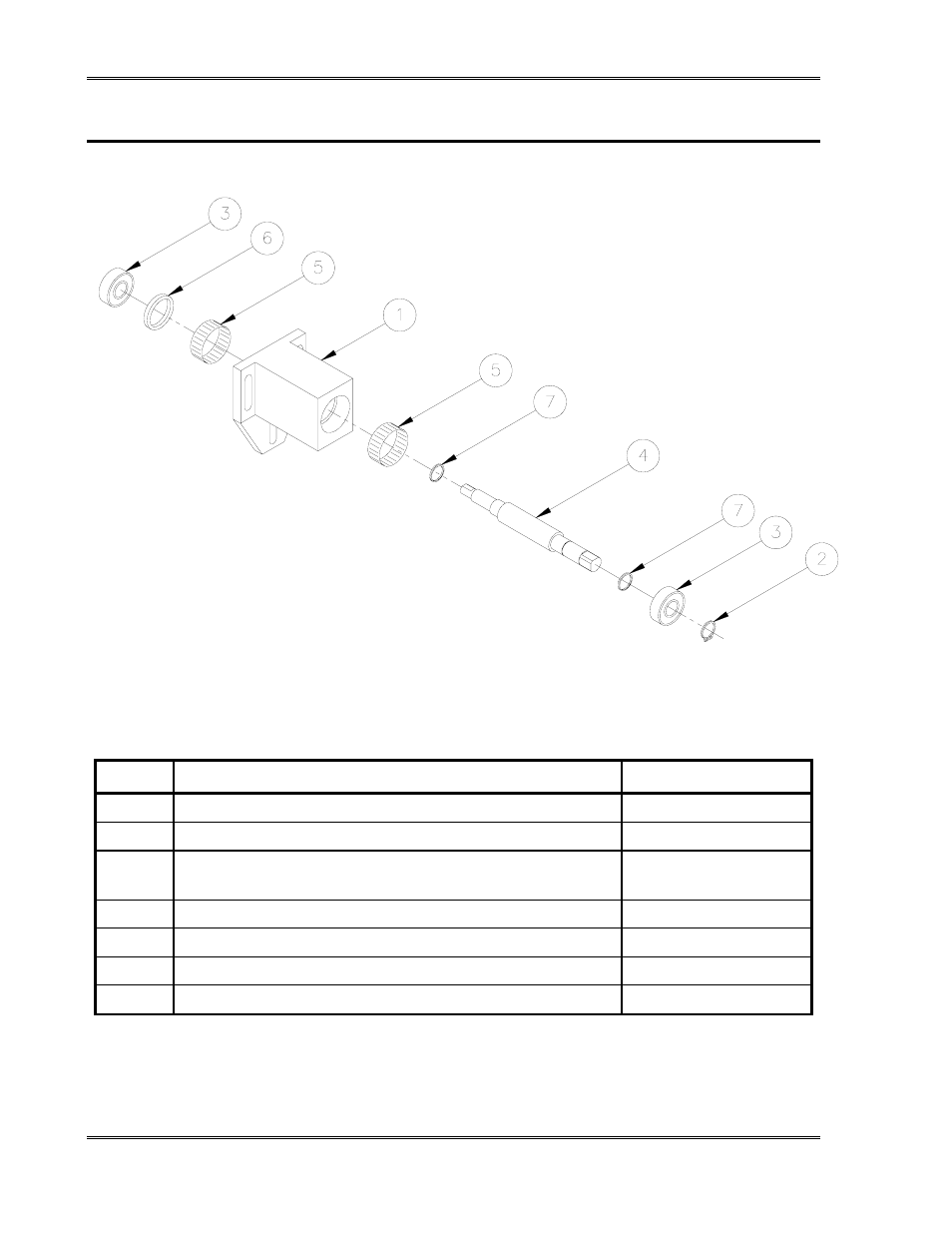

Figure B-5: Jackshaft Assembly (P/N 194810-001)
# Item Description Part Number
1 Housing, Jackshaft 194766-001
2 Ring, Retaining 598931-448
3 Ball Bearing, 0.375 in (0.9525 cm) ID x 0.875 in
(2.2225 cm) OD x 0.2812 in (0.714248 cm) THK 598931-607
4 Jackshaft 194809-001
5 Tolerance Ring AN 087037-S 598931-599
6 Spacer, Jackshaft Housing 194806-002
7 Washer, Wave .397 ID x .484 OD x .009 in THK 598931-192
Table B-5: Jackshaft Assembly Parts List
