JOURNAL ROLL REPLACEMENT AND OTHER MAINTENANCE OPERATIONS
Journal
REPLACING THE JOURNAL PAPER ROLL
1. Open the Paper Cover.
2. Depress the [JF] key to advance the
journal tape until unprinted part
of paper comes out of the Journal
Paper Guide (the other side of the
Paper Inlet).
3. Lift the printed journal together
with the Journal Receiving Shaft
and cut the journal at the edge of
the Journal Paper Guide.
4. Remove the printed journal out of
the Journal Receiving Shaft by
sliding the roll outward.
5. Replace the existing journal paper
roll with a new one if not enough
unprinted portion remains.

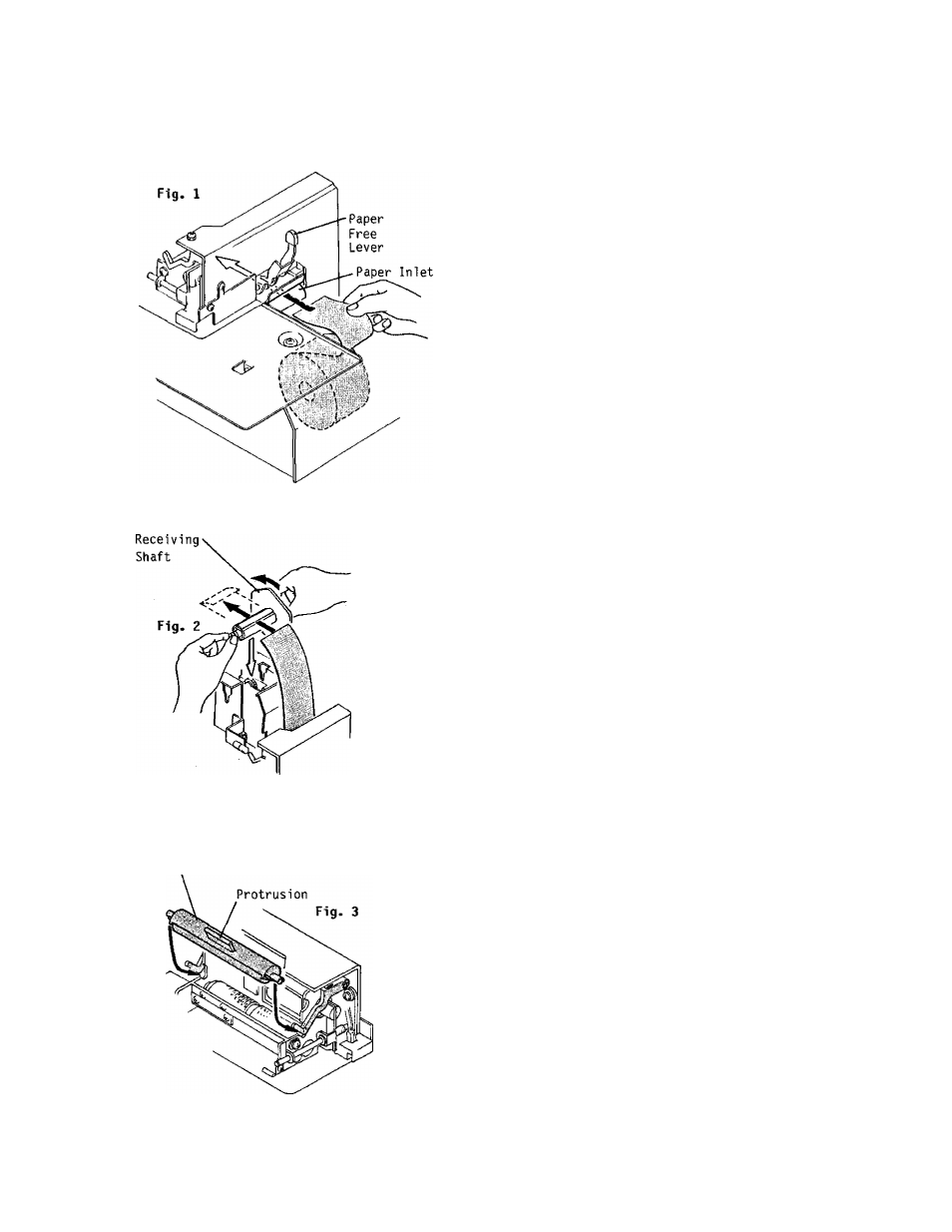

6. Fold the end of the paper squarely
about 6 inches and insert it into
the Paper Inlet. (Fig, 1)
7. Depress the [JF] key to advance the
tape about 8 inches.
8. Insert the end of the tape into the
slot of the Journal Receiving Shaft
and wrap it on the shaft twice to
secure the tape. (Fig. 2)
9. Place the Journal Receiving Shaft
into the receptacle so that the
shaft gear engages with the journal
take-up motor gear.
REPLACING THE INK ROLLER
Ink Roller Case
When the print data are too light to
read, it is time to replace the ink
roller.
1. Open the Paper Cover.
2. The Ink Roller Case is located at
the rear side of the paper inlet.
3. To remove, hold the protrusion of
the Ink Roller Case and pull it up.
4. Install a new Ink Roller Case into
the receptacle by following the
reverse order to removing. Press
it in until a "click" is heard.
(Fig. 3)
