13. PAPER ROLL REPLACEMENT AND OTHER
MAINTENANCE OPERATIONS
Journal
Winding Reel

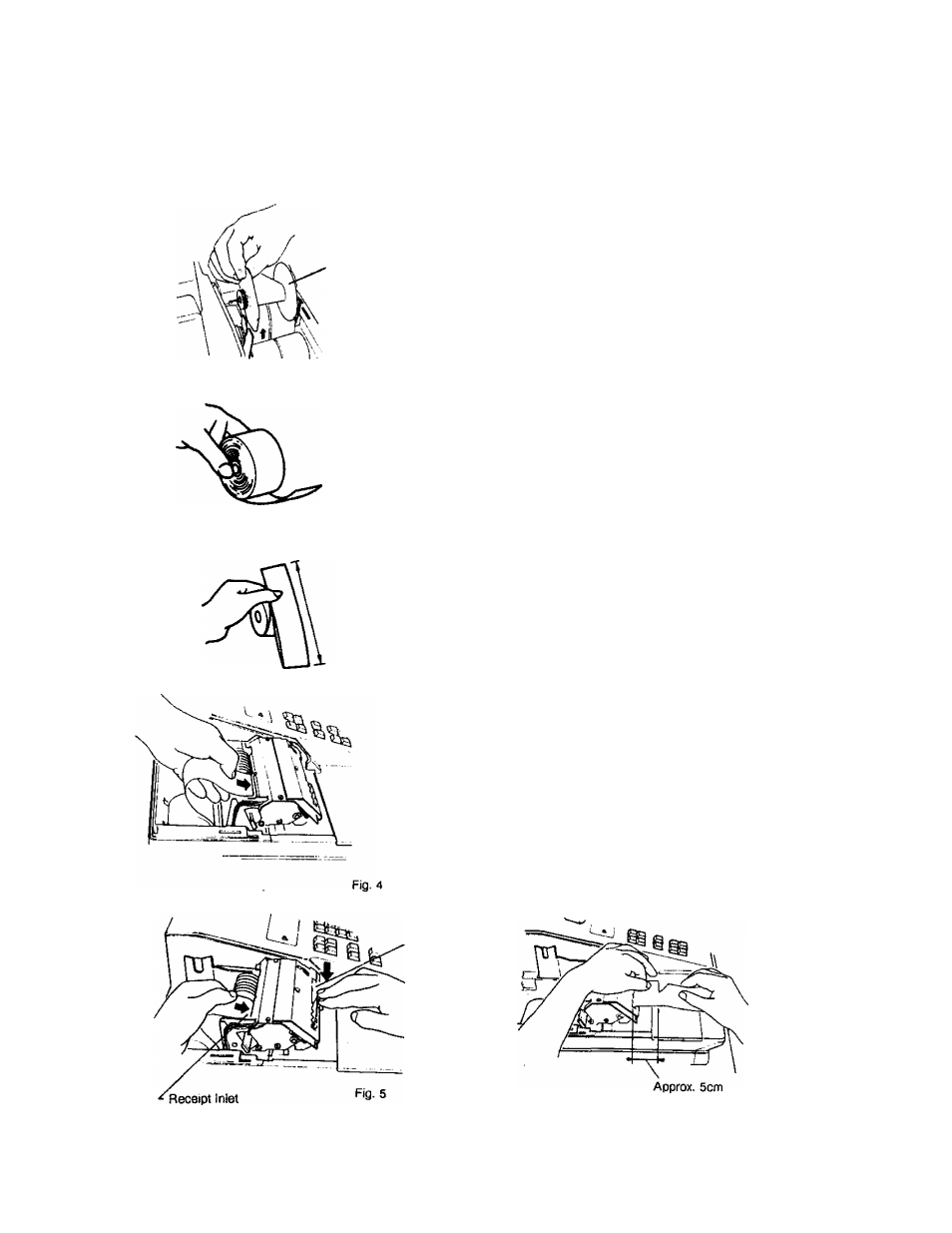

Fig. 1
Fig. 2
15 to 20cm
Fig. 3
13.1 INSTALLING THE RECEIPT
PAPER
1.
2 .
3.
4.
5.
6 .
7.
8
.
9,
Turn the Mode Lock to the
power ON. 'REG” position with the
Remove the Paper Cover, and remove the Journal
Winding Reel (Fig. 1).
Hold a new paper roll in the direction shown in Fig. 2
so that the paper end will be fed from the bottom.
Fold the paper end as shown in Fig. 3 to ease the
insertion.
Place the paper roll in the outer holder of the two roll
holders (Fig. 4).
Insert the paper end into the Receipt Inlet, feed the
paper in while pressing down the Free Lever (or feed
the paper in while pressing the [RF] key). (Fig. 5)
When the whole folded portion has come out, tear off
the unnecessary part with an appropriate end length
remaining (approx. 5 cm or 2 inches). (Fig. 6)
Go on to INSTALLING THE JOURNAL PAPER steps
if necessary, or go on to Step 9 below if not.
Attach the Paper Cover. Please note the paper end
must be seen outside the cover.
10. Press the [C] key to clear the paper-end condition,
and depress the [NS] key to issue a receipt to check
if the paper has been properly set.
NOTE: The [RFJ or [JFJ keys function only when both
receipt and journal paper rolls have been placed
in their respective holders.
