Connecting your HD-STB

3. Audio Connection

This HD'STB can support tour different way of audio connection. Each of the audio

connection deliver the same audio sound. You can select desired audio connection

followed by below Audio Connection Diagram,

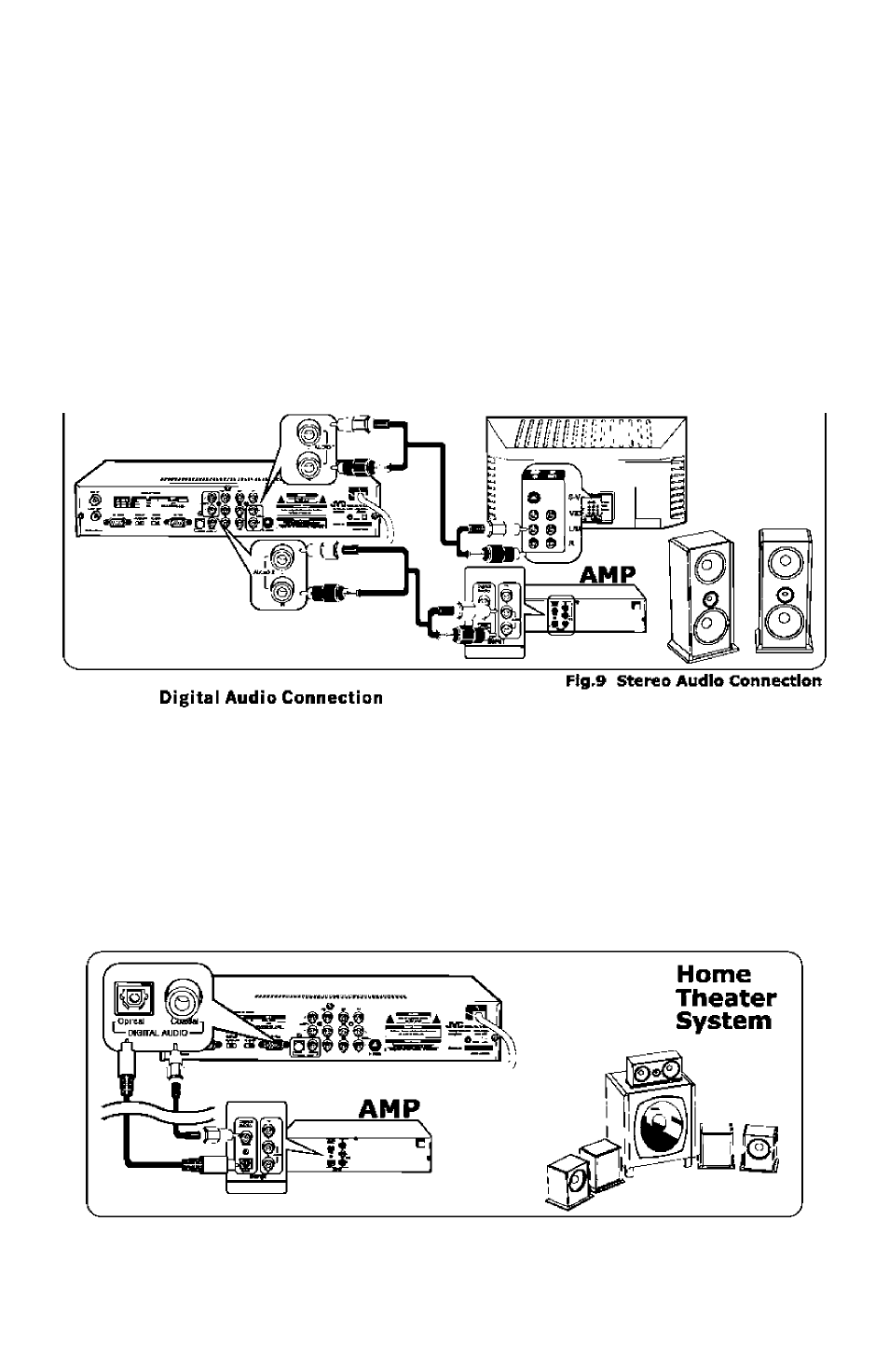

Stereo Audio Connection

The Audio 1 and Audio 2 are deliver analog stereo sound or Dolby Digital Downmixed
2 Channel analog stereo sound.
Connect Audio Cable to the Audio 1 or Audio 2 terminal on the rear of the HD STB.
Connect the other end of the Audio Cable to the conventional TV Audio Input or
Stereo Amplifier Audio Input. ( Refer to Fig. 9 )

The Optical Digital Audio and Coaxial Digital Audio are deliver Dolby Digital 5.1
digital sound or PCM digital sound.

If you have Home Theater System and it can received Digital Audio, then you can

connect Digital Audio.

For the Optical Digital Audio connection. Connect the Optical Digital Audio Cable
(Available in Local Store) to the Optical Audio terminal on the rear of the HD STB.
Connect the other end of the Optical Digital Audio Cable to the Optical Audio Input

terminal on the Home Theater System.

For the Coaxial Digital Audio connection. Connect the RCA Cable to the Coaxial

Audio terminal on the rear of the HD-STB. Connect the other end of the RCA Cable to

the Coaxial Audio Input terminal on the Home Theater System,

Fig. 10 Digital Audio Connection
