Connecting your HD-STB
Connecting to a Conventional TV with S-Video
Connect a S Video cable to the S Video terminal on the rear of HD-STB.
Connect the other end of S-Video cable to the S-Video input terminal on the TV.
Setting up the Display Switch to SD and Mode Switch to Ml. ( Refer to Fig. 7 )

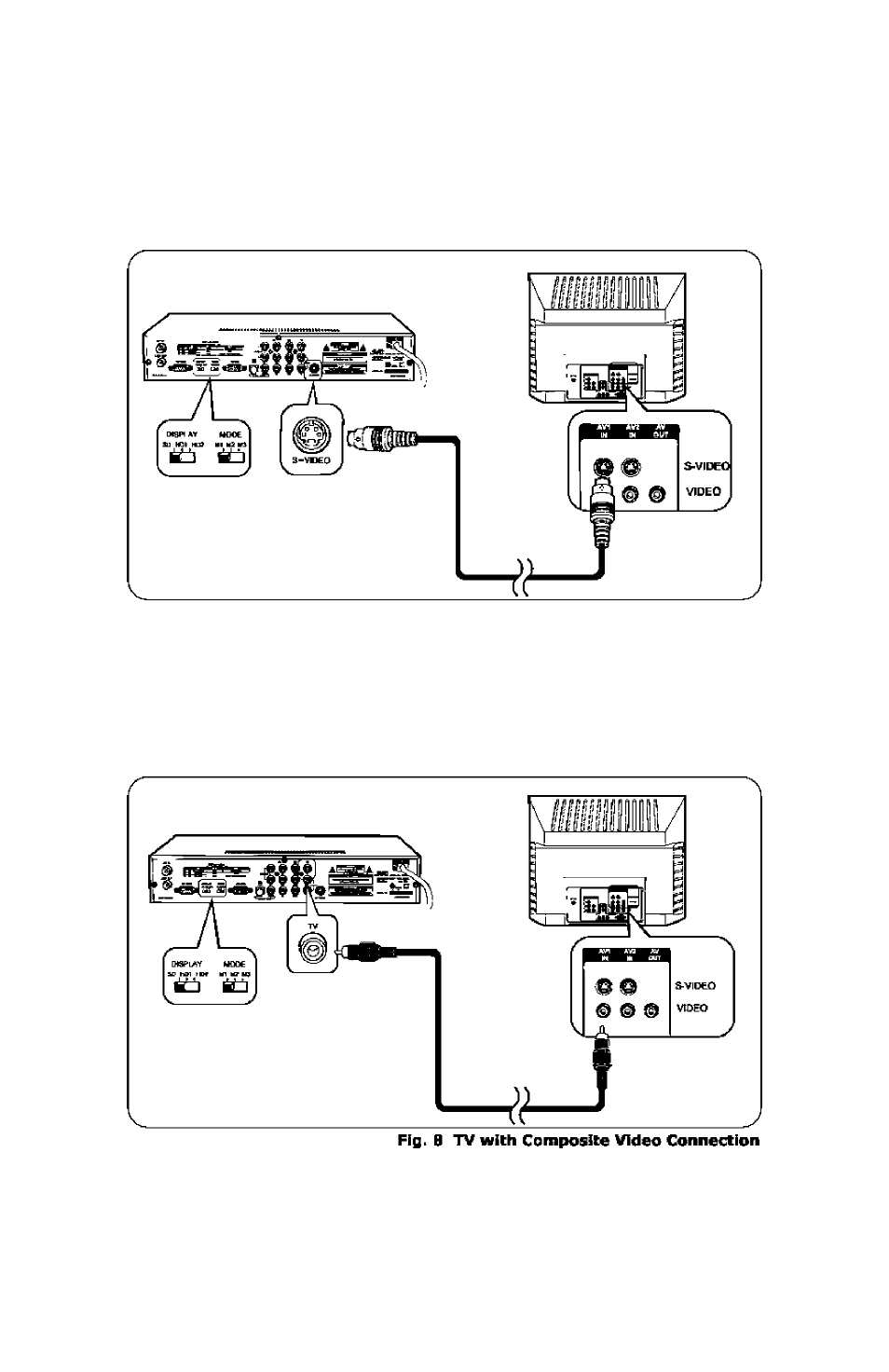

Fig.7 TV with S-VIdeo Connection
Connecting to a Conventional TV with Composite Video
Connect a Video Cable to the TV Video terminal on the rear of the HD STB.
Connect the other end of Video Cable to the Video In terminal on the TV. Setting up
the Display Switch to SD and Mode Switch to Ml. ( Refer to Fig. 8)
12
