Battery Pack
Release Button

UONtTOfl Switch

(PusMo-Talk)
Switch

TX POWER HILO
Switch

AC Adaptor/
Charger Jack

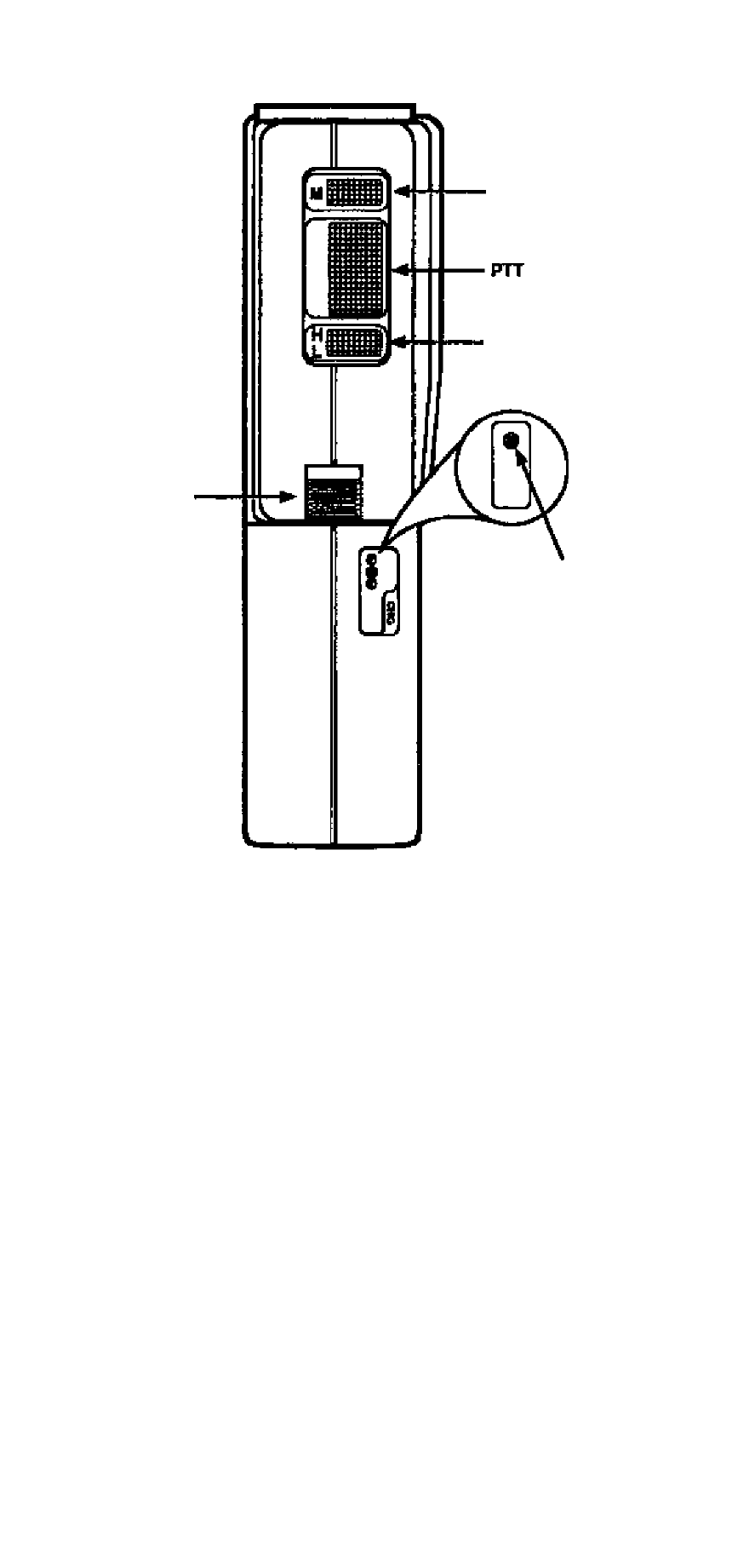

Side Controls and Connectors

Battery Pack Release Button - To remove the Battery

Pack, push up on the release button and slide the Battery
Pack away from the radio.

Monitor Switch - Press to set the Auto-squelch feature ON

or OFF,

Push-to-Talk (PIT) Switch - Press and hold to talk.

Release to listen for a reply.

TX Power HI/LOW Switch - Press to set the Transmit
output power to HIGH (5W) or LOW(IW).

AC Adaptor/Charger Jack - Connect AC Adaptor/Charger
here
