BATTERY PACK
Installing the battery pack
Match the concave part at the
bottom of the radio to the
convex part at the top of the
battery pack.
Turn the battery pack clock­
wise until it clicks.
Be sure the pack and trans­
ceiver are locked together.

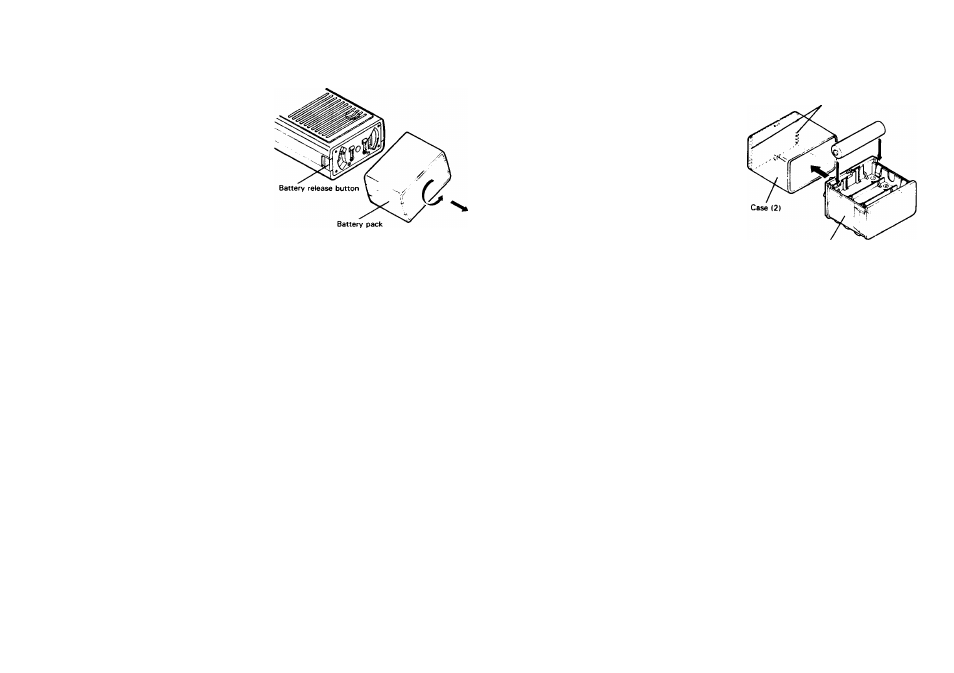

Removing
Pressing the battery release
button, turn the battery pack
counterclockwise.
Ni-Cd BATTERY PACK (PB-2)
NOTE:----------------------------------------------------------------------------------------------------
This battery pack has not been charged at the factory in order to pro­
vide you with the greatest number of charge/discharge cycles. You
must charge the battery before use. The battery pack will require
several charge/discharge cycles before you can expect to see the
maximum operating period between charges. If the battery will be
stored for greater than 2 months it should be recharged before use.
RECHARGING THE BATTERY PACK
Insert the charge plug from the BC-2 into the receptacle on the
rear of the battery pack. Then plug the BC-2 into the AC line.
The LED on the BC-2 will illuminate to show that the pack is
charging. The LED will remain on as long as the BC-2 is con­
nected to the AC power source and the battery, indicating
that the pack is still being charged. Do not allow the battery to
charge for greater than 15 hours. The useful life and battery
performance will be reduced if you exceed the recommended
charge period.
NOTES:--------------------------------------------------------------------------------------------------
• Turn off the power switch before charging.
• Recharging should be done within an ambient temperature bet­
ween 10°C~40°C (50°F~104°F). Recharging performed out
of this range may not fully charge the battery.
MANGANESE or ALKALINE BATTERIES
Load 6 X R6 (AA) manganese or
alkaline batteries in series in the
supplied battery case. (Be sure to
observe the polarities.)
(We recommend use of high-
perfomance manganese batteries.)
Battery pack (1) can be inserted in­
to the case (2) only in a specific
direction. Check the shape (top and
bottom) after moving the stopper
on the rear side, then insert the bat­
tery correctly. Inserting the battery
by force without checking the
shape may damage the case.
Battery pack ( 11
OPERATING TIME
(PB-1)
Transmitting........................................... 1 minute
Receiving............................................. 3 minutes
AF OUTPUT....................................0.35 W/8 fl
•Battery voltage is measured at transmis­
sion (Hi).
Ni-Cd
30mAh рВ-2) / battery Low \ Ni-Cd battery 7.2V
drin ^^*tery 8 4 w (Manganese
^ ouomAh (PB-91 / battery Low
Power) 1 SOOmAh (PB-4)
-)V-
BATT A lit voltage indicator
• Lower limit voltage range for transmission
Manganese battery (except Alkaline manganese battery) is
suitable only for LOW power transmission.
Recharge the Ni-Cd battery pack when the ВАТТ indicator
comes on.
We recommend use of the PB-3 or PB-4 Ni-Cd battery pack
for long transmission or extended operation.
