SPEAKER MICROPHONE
SMC-30
SWIVEL MOUNT
BH-5
TELESCOPING ANTENNA
RA-3 (144 MHz)
SOFT CASE
SC-13
MICRO HEADPHONES
HS-7
MICRO HEADPHONE
HS-8
MOBILE MOUNTING
BRACKET
MB-4
FILTERED CIGARETTE
LIGHTER CORD
PG-3E
PROGRAMMABLE TONE
DECODER UNIT
TSU-4
SOFT CASE
SC-12
(for PB-2/3)
DC CABLE
PG-2V
POWER SUPPLY
Ni-Cd RECHARGEABLE
BATTERY PACK
PB-1
12V BOOmAh
Charge with
PB-7/8 only.
PB-2
8.4V SOOmAh
Ni-Cd RECHARGEABLE
BATTERY PACK
PB-3
7.2V BOOmAh
Charge with
PB-7/8 only.
Ni-Cd RECHARGEABLE
BATTERY PACK
PB-4
7.2V leOOmAh
Charge with
PB-7/8 only.
COMPACT CHARGE
BC-8
(for PB-1/2/3/4)
AA MANGANESE/
ALKALINE BATTERY
CASE
BATTERY CHARGER
BC-2
(for PB-2 only)
NOTE:----------------------------------------------------------------------------------------------
Some optional accessories may not be available in your areas.
Some cars may not be suitable to hook the MB-4 into the window.
HMC-1 vox headset cannot be used.

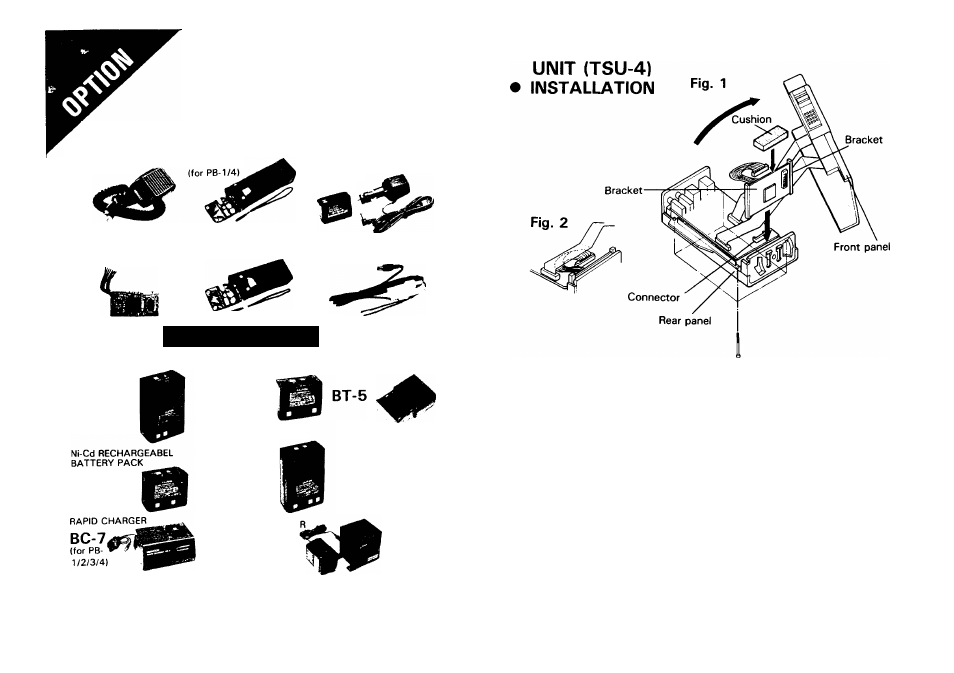

PROGRAMMABLE TONE DECODER
1. Remove the four phillips head screws from the rear panel of
the radio.
2. Gently remove the front panel. The panel should be rotated
away from the PTT switch side.
3. Remove the foam cushion attached to the bottom of the
set. Install the tone squelch unit between the bottom of the
set and the main circuit board as shown in Fig. 1.
4. Attach the cable from the TSU-4 as shown in Fig. 2. The
cable should be routed under the ribbon cable that goes to
the front panel.
5. Remove the backing from the foam cushion that was pro­
vided with the TSU-4 and attach the cushion to the edge of
the TSU-4.
6. Replace the covers and tighten screws to complete the in­
stallation.
19
