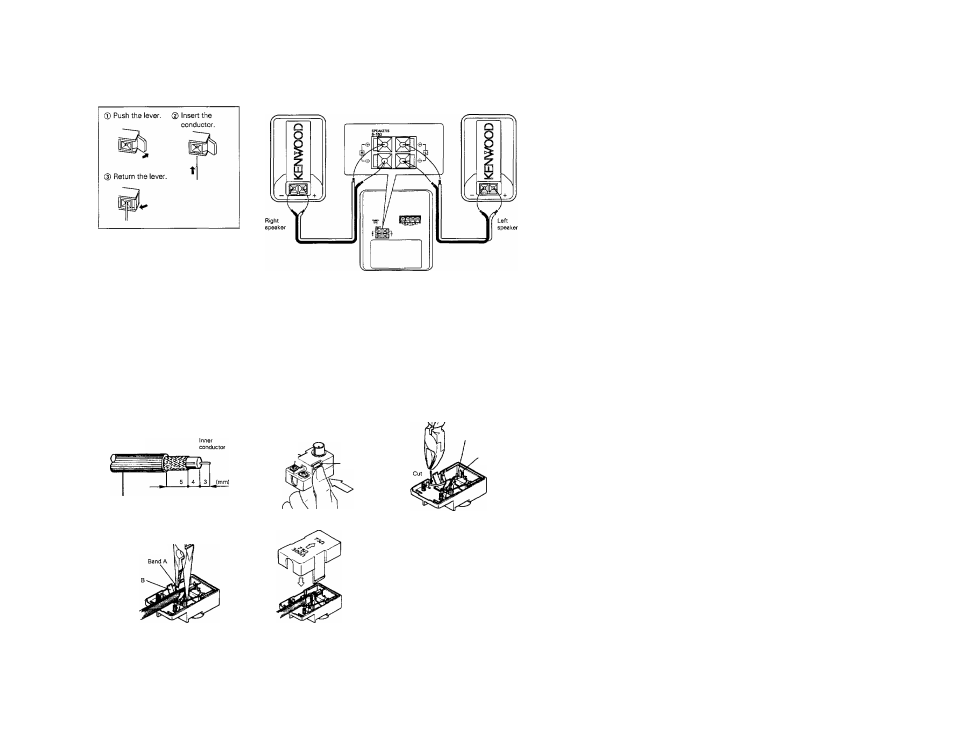

Connection of front speakers
Never short-circuit the + and - speaker cords,
if the speaker cords are connected with reversed polarity,
the sound becomes unnatural with ambiguous acoustic
image positioning.
Be sure to connect the speaker cords correctly,
Left
speaker Right
speaker
The right and the left speakers are the same.
75 Q, coaxial cable connection (For U.K. and Europe]
© Arrange the coaxial cable as il­
lustrated.
Outer shield
(Braid)
RG-6 (5C-2V) or RG-59 {3C-2V)
(D Open the antenna adaptor.
Press the claws in the direction
of the arrows with the fingers to
release the lock and pull out the
cover.
Claw
Cut off the red wire and remove
it from the clip.
Remove the red wire
Clip
® Insert into the slit on the clip.
Fasten the bands A and B, using
a pair of pliers.
® Close the cover. (6) Connect the adaptor to the an­
tenna terminal.
Note:
To connect the 300 £1 feeder, attach the ring shown in the figure. If the ring is not attached, the sensitivity decreases.
