Connect Gas Supply
Shut off main gas supply valve before disconnecting
the old range and leave it off until the new hook-up
has been completed. Don’t forget to relight the
pilot on other gas appliances when you turn the
gas back on.
The range can be installed using rigid pipe or a CSA
International-certified flexible metal appliance con­
nector. If using a flexible connector, always use a
new connector.
Apply pipe joint compound or Teflon^ tape appropri­
ate for use with LP gas and Natural gas around all
male pipe threads to prevent leaks.

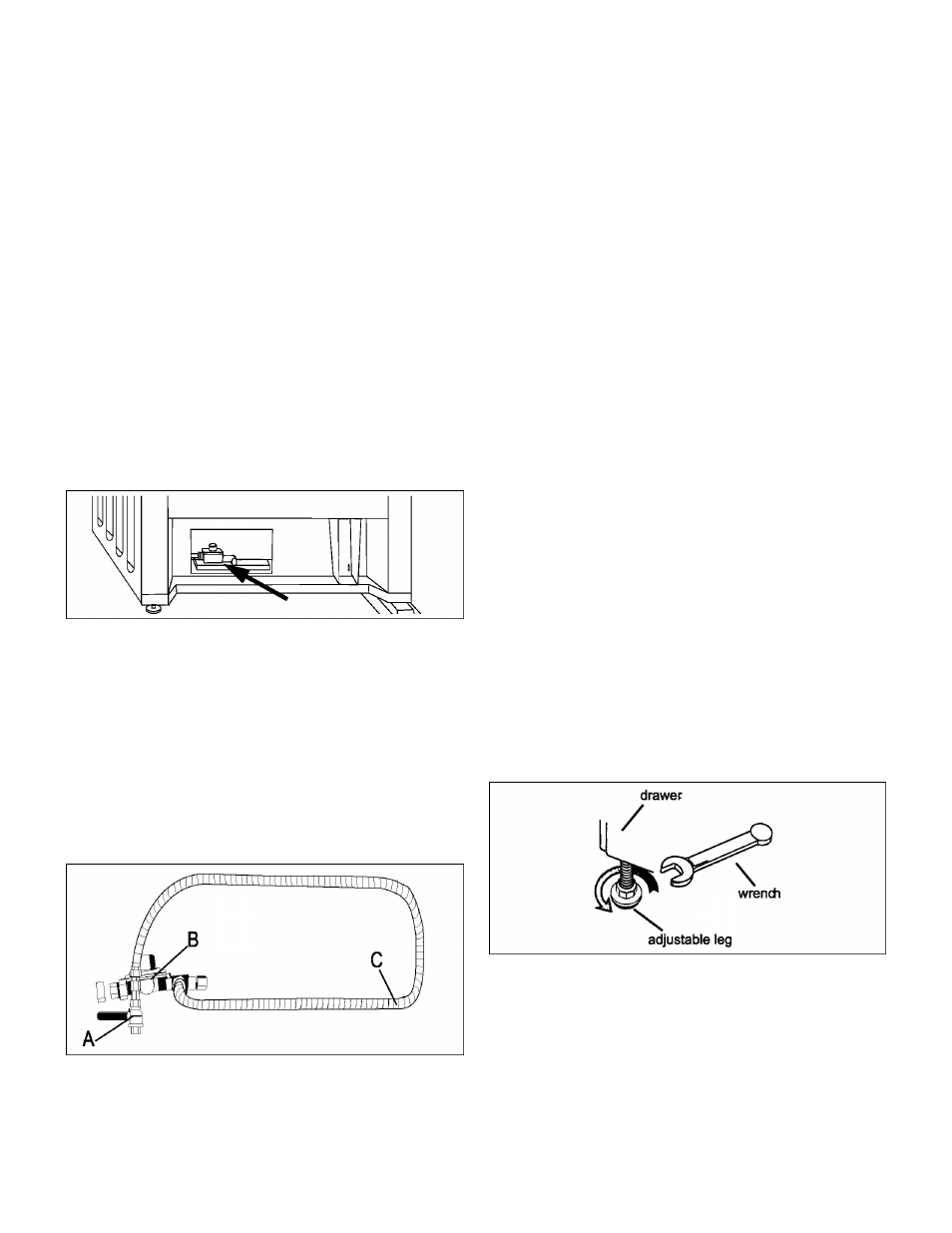

The gas connection is located below the back panel
of the range. It is accessible through the drawer ac­
cess panel or from the back of the range. To reach
access panel, remove drawer.
Important note for LP users: The range is shipped
from the factory for use with natural gas. For use
with propane (LP) gas, your range must first be con­
verted using the LP conversion kit.
Flexible Connector Method
If using rigid pipe, skip to “Rigid Pipe Method” on
page 13.
Attach Connector
Letter
B
Item
Gas Shut Off Valve
Regulator
1. Install male
W'
(12.7 mm) flare adaptor at the
W'
(12.7 mm) NPT internal thread of the range inlet.
Use a backup wrench on the elbow fitting to avoid
damage.
2. Install male (12.7 mm) or %" (19 mm) flare
union adapter on the internal thread of the
manual shutoff valve.
3. Connect flexible metal appliance connector.
Plug in Range Cord
1. Make sure circuit breaker is off and then plug
range cord into electrical outlet.
2. Connect flexible connector at gas inlet valve.
A CAUTION
Before you plug in an electrical cord, be sure all
controls are in the OFF position.
Adjust Leveling Legs
1. Line up range in front of opening.
2. Measure back left corner of opening from floor to
top of countertop.
3. Measure back left corner of range to bottom of
cooktop trim. Adjust leveling leg until this height
is the same as the corner dimension.
4. Repeat in right back corner.
5. Adjust front leveling legs so that the bottom of
the cooktop trim is
W'
(12.7 mm) higher than the
corresponding countertop surface.
Flexible Connector
12
