Adjust Front of Range for Proper Installation
Rigid Pipe Method
1. Adjust front leveling legs so that the cooktop trim rests snugly against the
countertop all the way around.
2. Verify that both front legs are resting solidly on the floor.
3. Use a level to verify that the range is level and plumb.
4. Carefully tip range forward to ensure that anti-tip bracket engages and pre
vents tip-over.
The gas connection is complete. Proceed to “Test for Gas Leaks” on page 21.
If using a flexible connector, return to “Flexible Connector Method” on page 17.
Attach Rigid Pipe
Table 5: Rigid Pipe Method
Letter
Item
A
Elbow; Connect to regulator here
B
Pipe Nipple
C
Union
D
Elbow
E
Gas Shut Off Valve
F
1/2” to 3/4” Gas Pipe

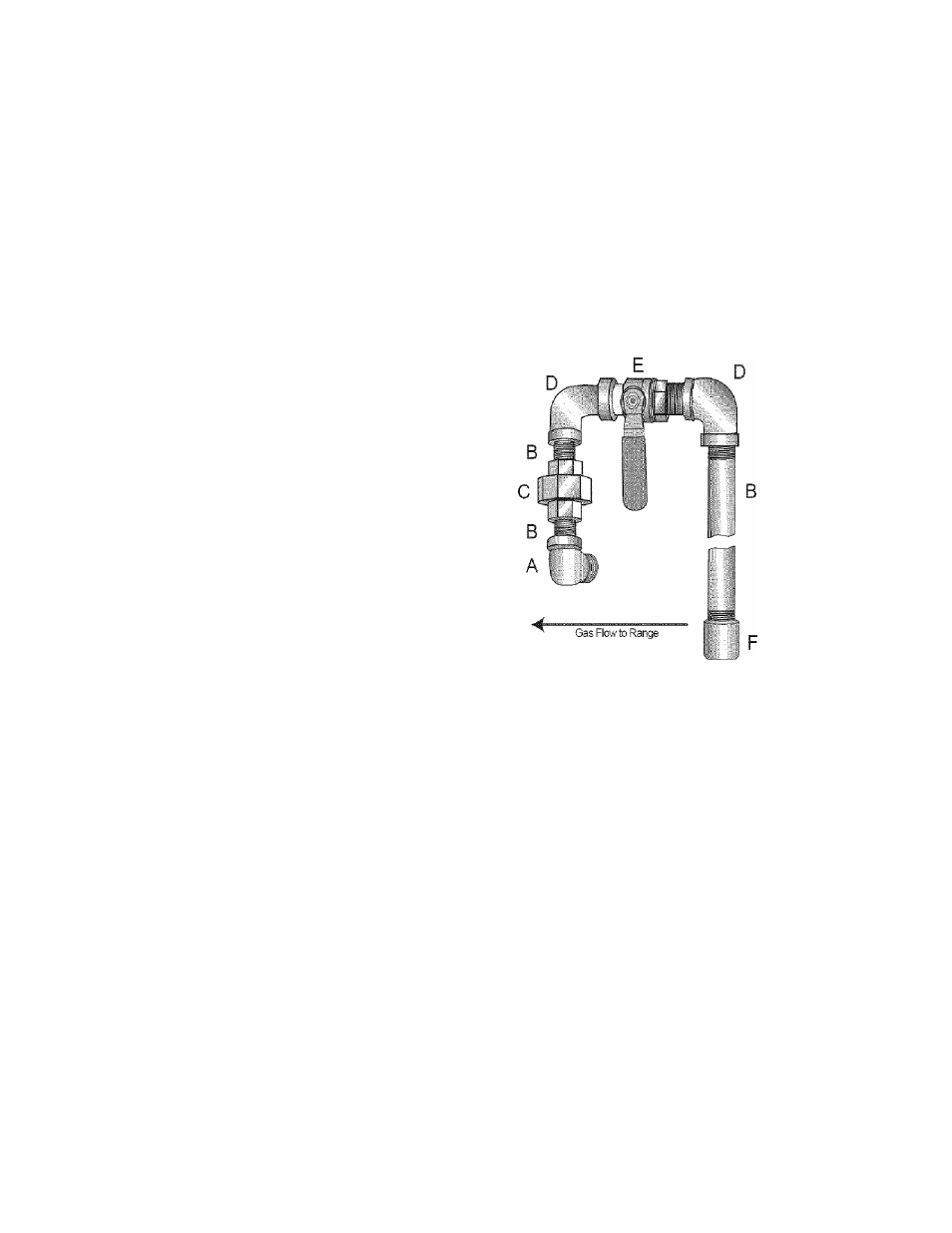

Figure 22: Rigid Pipe Method
The configuration of the rigid pipe connection will vary depending on the location
of the gas pipe stub. See Figure 22: Rigid Pipe Method for examples.
Adjust Levelling Legs
