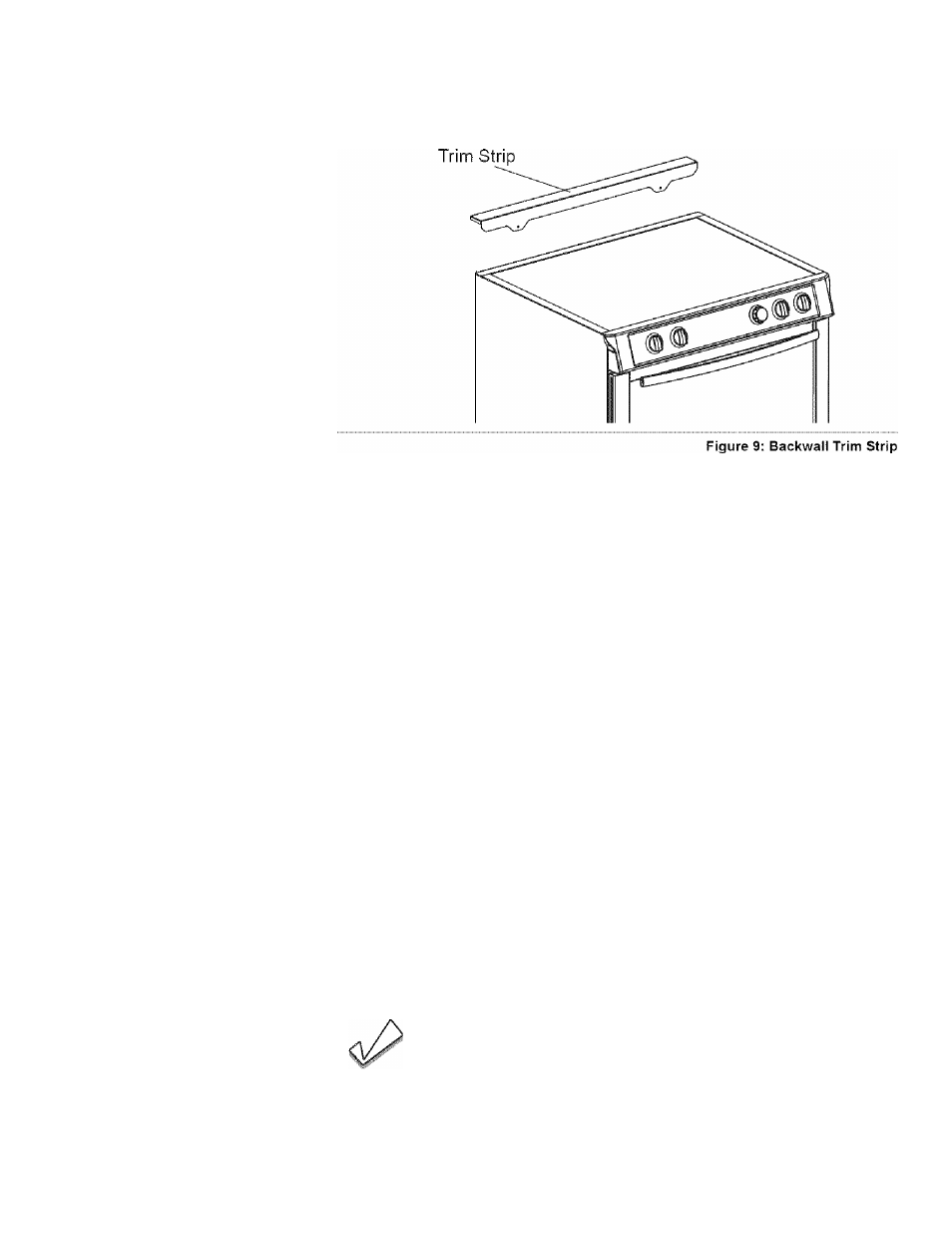

Install 2 screws through holes in trim and in range backwall. See Figure 9: Back

wall Trim Strip and Figure 10: Install Backwall Trim Strip

Installation

Backwall

■X

Back of Range

■ X

Figure 10: Install Backwall Trim Strip

Connect Electric

There are two possible electrical connections:

1. Four wire range cord

2. Three wire range cord

The four wire range cord connection is the recommended method, but where local
codes permit, three wire connections are also acceptable.

Note:
In Canada, the range is shipped from the factory with the range cord

already installed. Continue to “Connect Gas Supply” on page 16

For installations other than those in Canada, connect the range cord at the termi
nal block (See next page for detailed instructions). Access the terminal block by
removing the cover in the lower right hand corner of the range back panel.

English 11
