Installation
3, Remove top nut, star washer, and round washer from each post.
Note:
DO NOT remove last round washer, last nut or internal wiring leads.
4. Remove screw from bottom end of ground strap.
5, Remove ground strap from center post, rotate so that wide end is at top and
attach wide end to range through hole below junction box. Attach green wire
on top of ground strap. Tighten Screw,

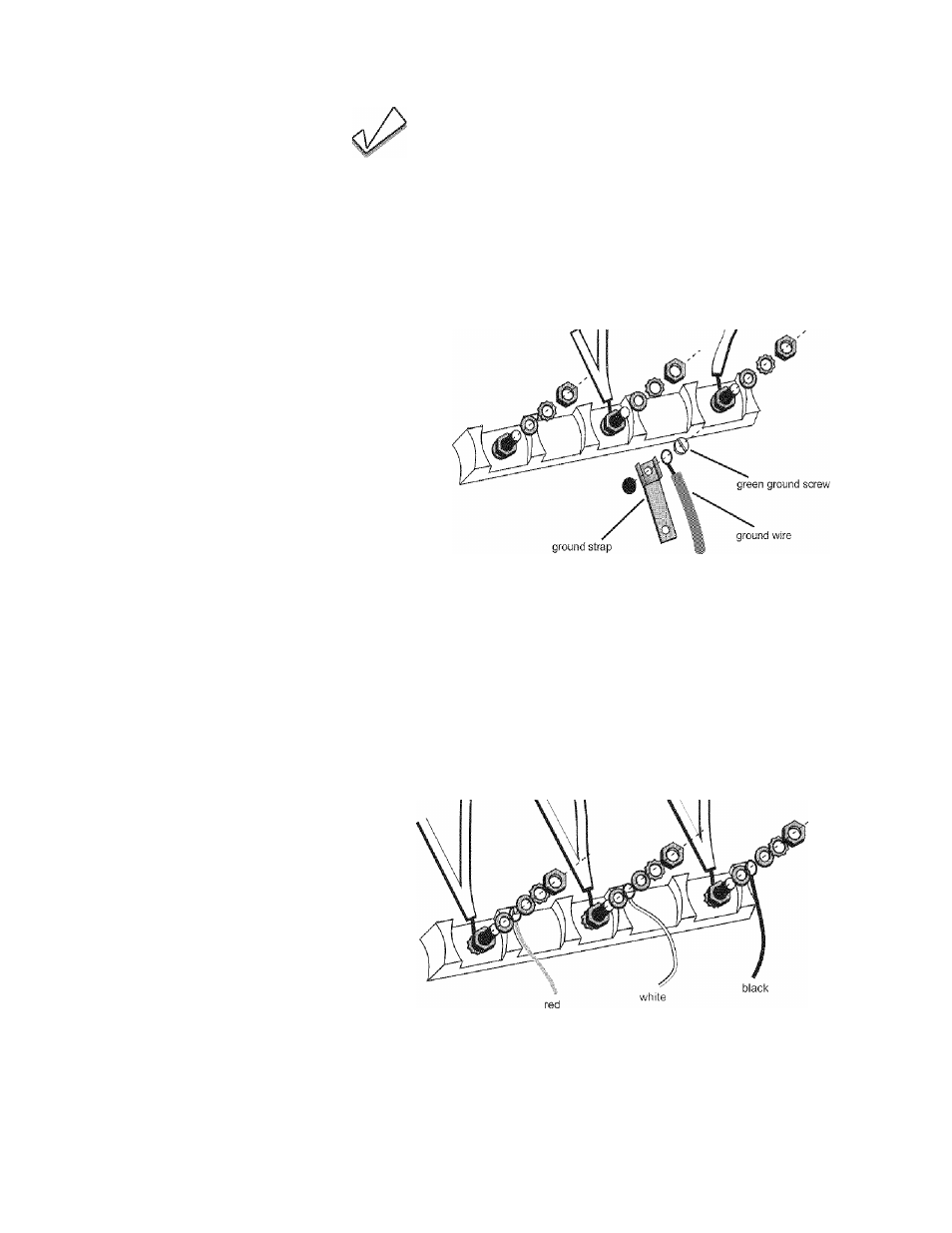

Figure 14: Four Wire Range cord Connection - Ground Strap and Wire
6, Attach red wire, round washer, star washer and nut IN THIS ORDER to left
post.
7, Attach white wire, round washer, star washer and nut IN THIS ORDER to cen­
ter post.
8, Attach black wire, round washer, star washer and nut IN THIS ORDER to right
post.
Figure 15; Four Wire Range Cord Connection (continued)
9, Tighten all connections securely and replace terminal block cover.
