Flexible Connector Method

Installation

The range is shipped from the factory for use with natural gas. For use with pro

pane (LP) gas, your range must first be converted using the LP conversion kit.

If using rigid pipe, skip to “Rigid Pipe Method” on page 19.

Attach Connector

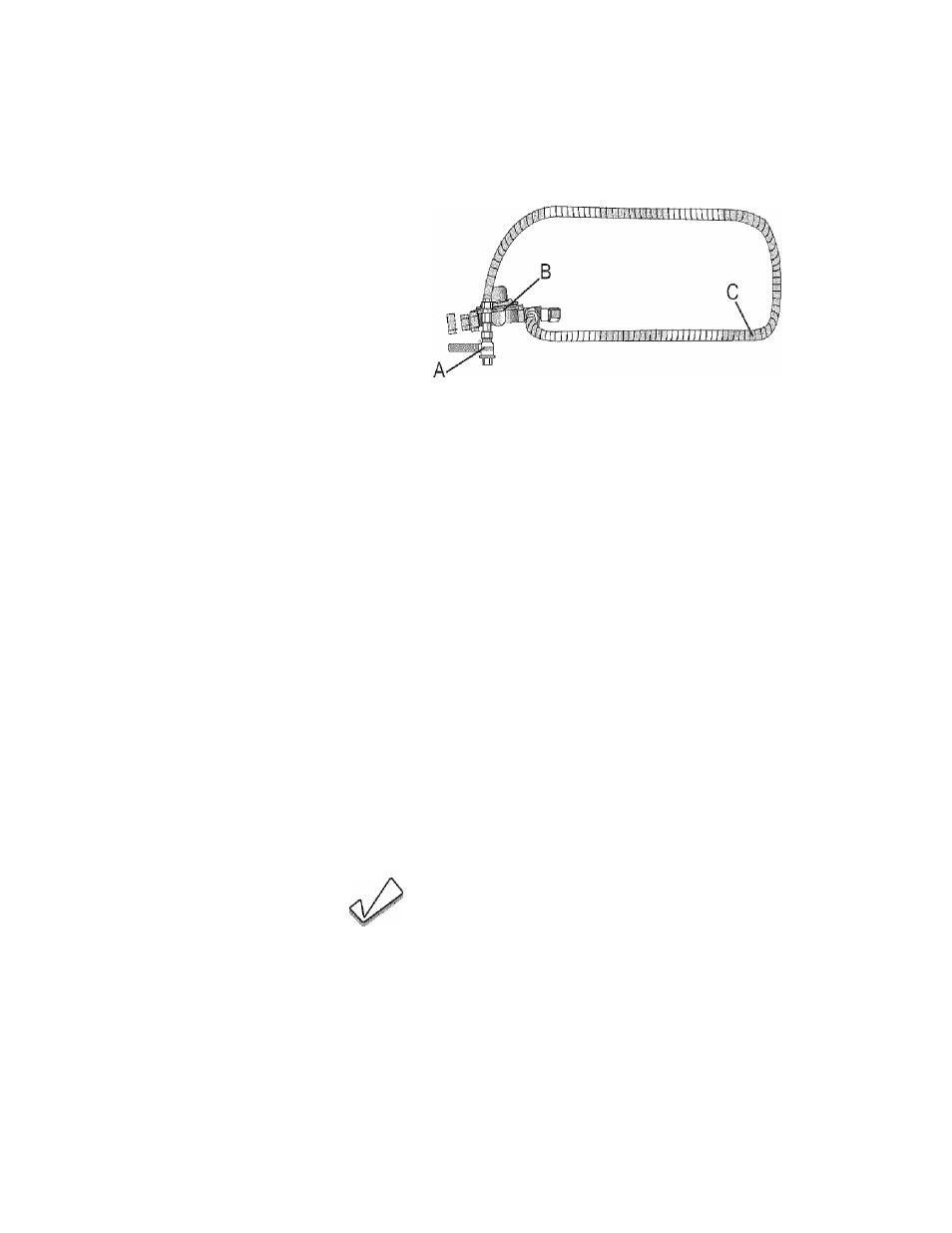

Figure 20: Flexible Connector Method

Table 4: Flexible Connector Method

Letter

Item

Gas Shut Off Valve

Regulator

Flexible Connector

1. Install male 1/2” flare adaptor at the 1/2” NPT internal thread of the range

inlet. Use a backup wrench on the elbow fitting to avoid damage.

2. Install male 1/2” or 3/4” flare union adapter on the internal thread of the man

ual shutoff valve.

3. Connect flexible metal appliance connector.

Plug in Range Cord

1. Make sure circuit breaker is off and then plug range cord into electrical outlet.

2. Connect flexible connector at gas inlet valve.

Caution:

Before you plug in an electrical cord, be sure all controls are in the

Off position.

Adjust Levelling Legs

1. Line up range in front of opening.

2. Measure back left corner of opening from floor to top of countertop.

3. Measure back left corner of range to bottom of cooktop trim. Adjust leveling

leg until this height is the same as the corner dimension.

4. Repeat in right back corner.

5. Adjust front leveling legs so that the bottom of the cooktop trim is Vi" higher

than the corresponding countertop surface.

English 17
