Connecting Your Equipment

Connecting Additional Amplifiers (VSX-D810S/D850S only)

This receiver has more than sufficient power for any home use, however it is possible to add additional amplifiers to
every channel Make the connections shown below to add amplifiers to power your speakers Always make sure that
the receiver is switched off and unplugged from the wall outlet before making or changing any connections

The arrows indicate the direction of the audio signai

VSX-D810S/D850S

MEMO:
To hear sound only from the pre-outs, disconnect any speakers that are connected

directly to the receiver (Using the SPEAKERS button to switch off the speakers also

mutes the pre-outs, you must set it to either A, B, or A+B )

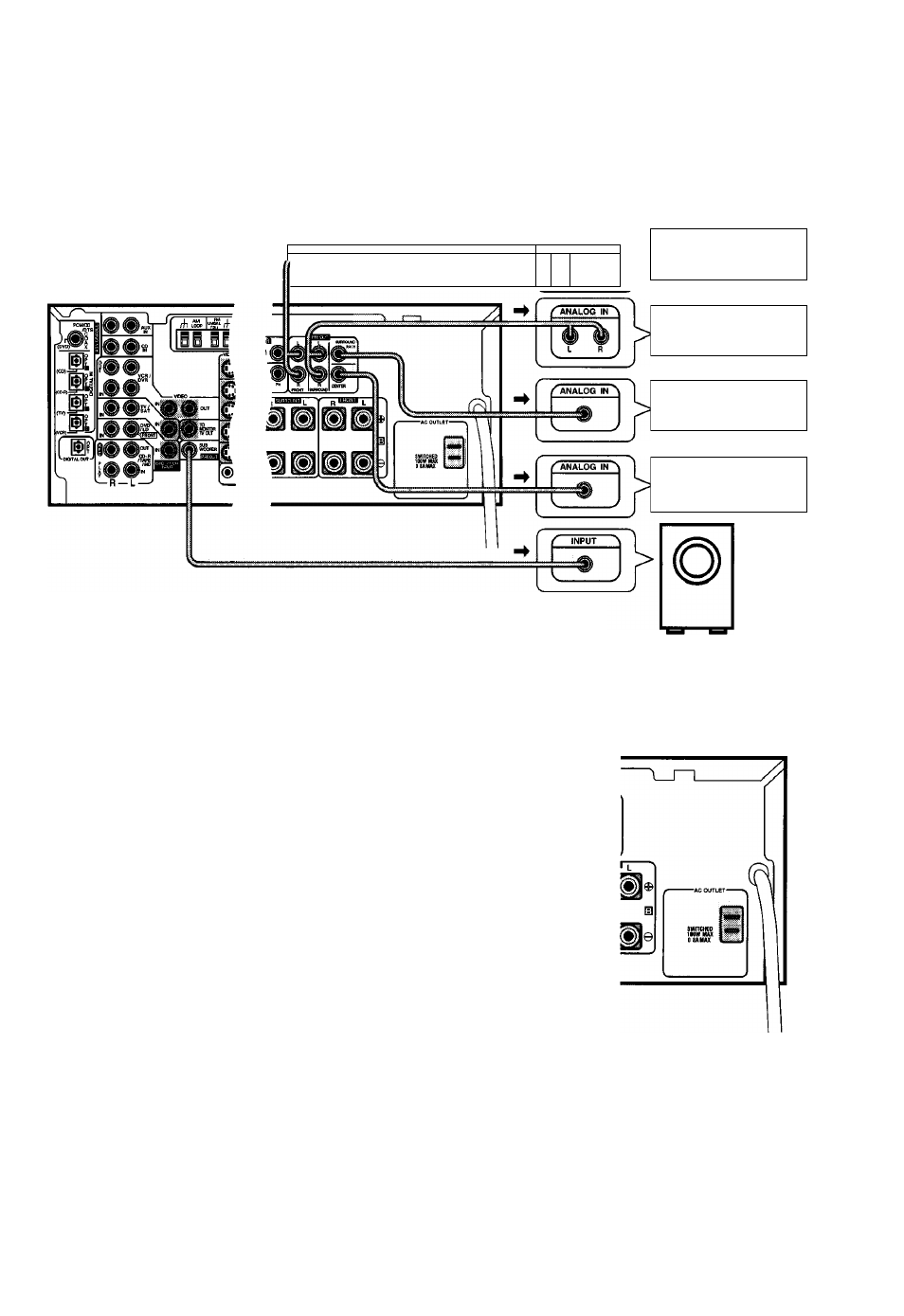

Front channel
amplifier

Surround channel

amplifier

Surround Back

channel amplifier

Center channel
amplifier

Powered
Subwoofer

AC Outlet [switched 100 W (0.8 A) max]

Power supplied through this outlet is turned on and off by the receiver's POWER

switch
Total electrical power consumption of connected equipment should not exceed

100 W (0 8 A)

CAUTION
Do not connect a heater, TV, etc Also, make sure no exposed speaker wire is
touching the rear panel, this may cause the receiver to turn off automatically

MEMO:

• This unit should be disconnected by removing the power plug from the wall

socket when not in regular use, e g , on vacation

• Do not connect appliances with high power consumption such as heaters,

irons, or television sets to this AC OUTLET in order to avoid overheating and
fire risk This can also cause the receiver to malfunction

CAUTION:

DO NOT CONNECT A MONITOR OR TV SET TO THIS UNIT'S AC OUTLET

POWER-CORD CAUTION
Handle the power cord by the plug Do not pull out the plug by tugging the cord and never touch the power cord

when your hands are wet as this could cause a short circuit or electric shock Do not place the unit, a piece of

furniture, etc , on the power cord, or pinch the cord Never make a knot in the cord or tie it with other cords The

power cords should be routed such that they are not likely to be stepped on A damaged power cord can cause a fire

or give you an electrical shock Check the power cord once in a while When you find it damaged, ask your nearest
PIONEER authorized service center or your dealer for a replacement
