Connecting Your Equipment

Connecting Speakers (VSX-D810S/D850S)

A full complement of seven speakers is shown here but, naturally, everyone’s home setup will vary Simply connect

the speakers you have in the manner described below The receiver will work 'with just two stereo speakers (called
“front” speakers in the diagram) but we recommend you use at least three speakers To get the most out of the VSX-

D810S/D850S models hook up all seven speakers, including a surround back speaker, the latest advancement in
home theater You can only hook up one speaker here as the surround back channel is mono on the VSX-D810S/

D850S models This is actually 6 1 ch sound but we usually refer to it by its regular name, 7 1 ch sound The two are

essentially the same thing both offering surround back sound If you don’t hook up a surround back speaker you can
use that speaker terminal to hook up your subwoofer

Make sure you connect the speaker on the right to the right terminal and the speaker on the left to the left terminal

Also make sure the positive and negative (+/-) terminals on the receiver match those on the speakers

MEMO:

• The receiver has two speaker systems, A & B A is the main system supporting the full complement of surround

sound speakers If you switch on both A & B speaker systems, only front speakers and the subwoofer will be
audible No sound will come from the center or surround speakers but multi channel sources will be down-
mixed to the active speakers so no sound will be lost Similarly, if you choose just the B system you’ll only hear the

front speakers connected to the B system and multi channel sources will be down-mixed to these two speakers

• Use speakers with a nominal impedance of 8 Q to 16 Q
• If you select subwoofer (SB SUBWF) in the surround back speakers setting mode (see p 17) you can hook a

subwoofer up to the surround back speaker terminals In this case the terminals will be used for this “passive
subwoofer" and no surround back sound will come from these terminals

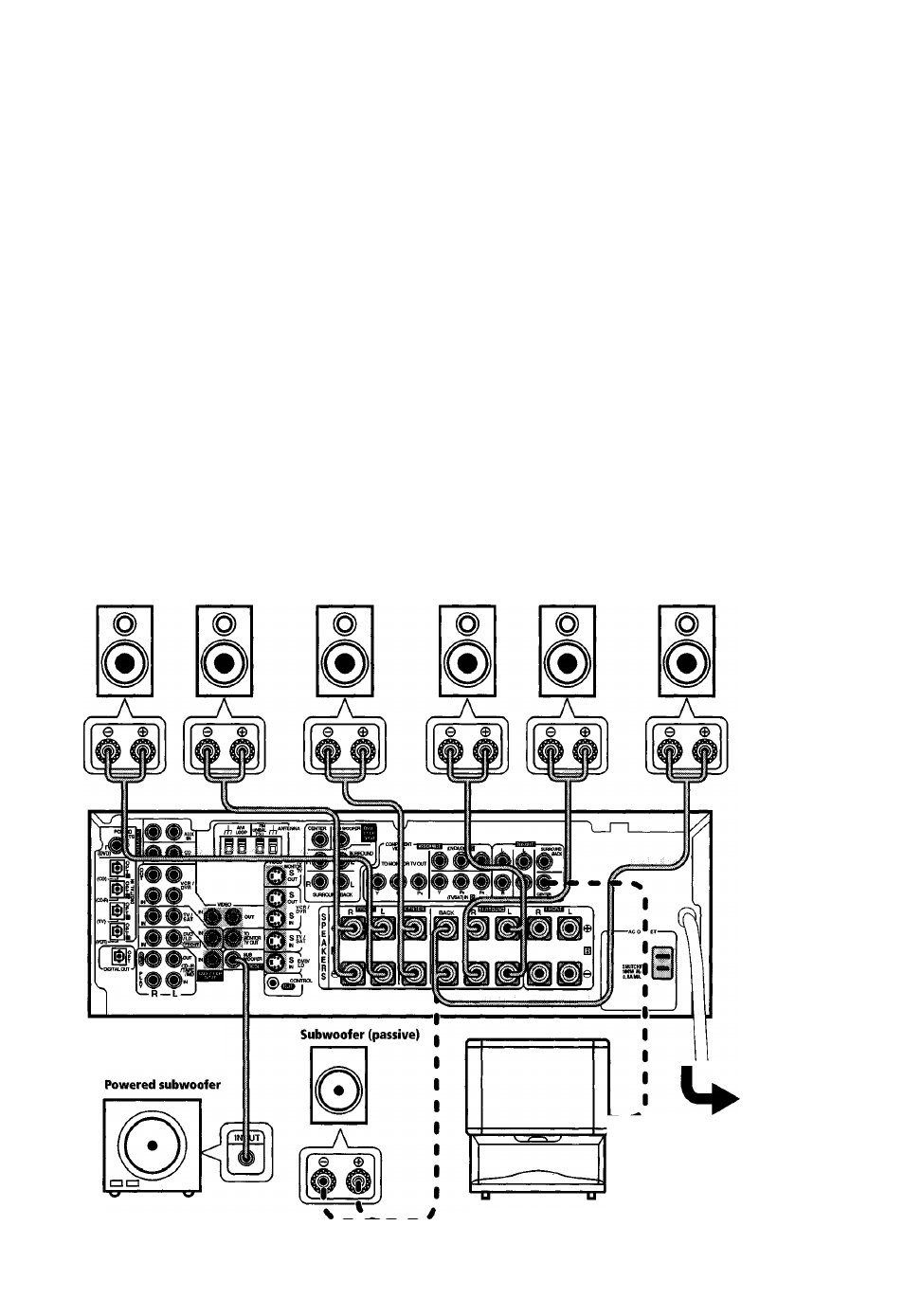

Front Speakers (A)

Center Speaker

SURROUND Speakers

SURROUND BACK Speaker

VSX-D810S/D850S

Be sure to complete all
other connections before
connecting this unit to

the AC power source

When using the speaker on your TV as the center

speaker ('C'), connect the CENTER PREOUT jack on this
unit to the audio input jack on your TV In this case, the
center speaker shown is unnecessary.
