Installation Instructions
^ SEAL THE OPENINGS
Seal any openings in the wall behind the range and in the
floor under the range when hookups ore completed.

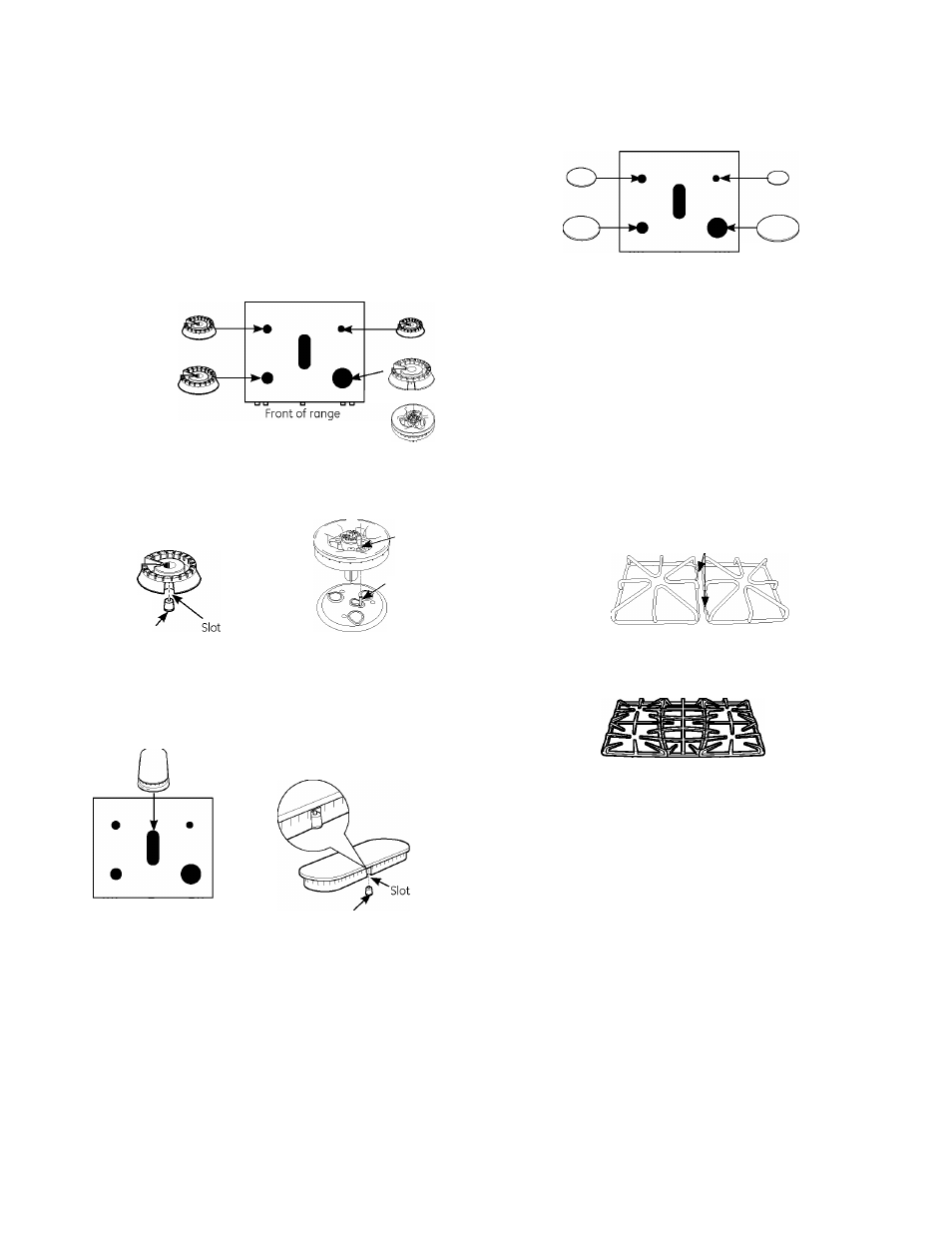

S ASSEMBLE SURFACE BURNERS
m Burner Heads (on some models)
Place burner heads over the electrodes on the cooktop, in
the correct
locations
according to
their size. There
is one small,
one medium,
one large and
one extra-large
burner head..
(on some models)
Make sure the slot in the
burner head is positioned
over the electrode.
(on some models)
Triple flame head
Hole
Electrode
Electrode
Oval (Center) Burner Head/Cap Assembly
Place the oval (center) head/cap assembly over the
electrode on the cooktop.
Oval head and cap
assembly
Make sure the slot in the
burner head is positioned
over the electrode.
Front of range
Electrode
[U ASSEMBLE SURFACE BURNERS
(CONT.)
Front of range
(on some models)
Tri-ring cap
O
(on some models)
Oval (Center) Burner Head/Cap Assembly
Place the oval (center) head/cap assembly over the
electrode on the cooktop.
H Caps
Place the matching size caps onto the burner bases
or heads.
Make sure that the heads (on some models) and caps
are replaced in the correct locations.
Grates
Single Grates
Locator Bumps
Single grates only fit one way. Locator bumps need to
face each other.
Double Grates
7 f \
Left-Front Center Right-Front
Place the left, right and center grates on the cooktop.
These grates are position specific. The undersides of
the left and right grates are marked "LEFT FRONT"
and "RIGHT FRONT." On some models the underside
is labeled "OUTSIDE." Place the middle grate with its
bowed front (on some models) toward the front of the
range.
A
caution
without all burner parts in place.
Do not operate the burner
