Installation Instructions
B Securing the Oven in the Opening
Sliding the Oven Into
the Opening

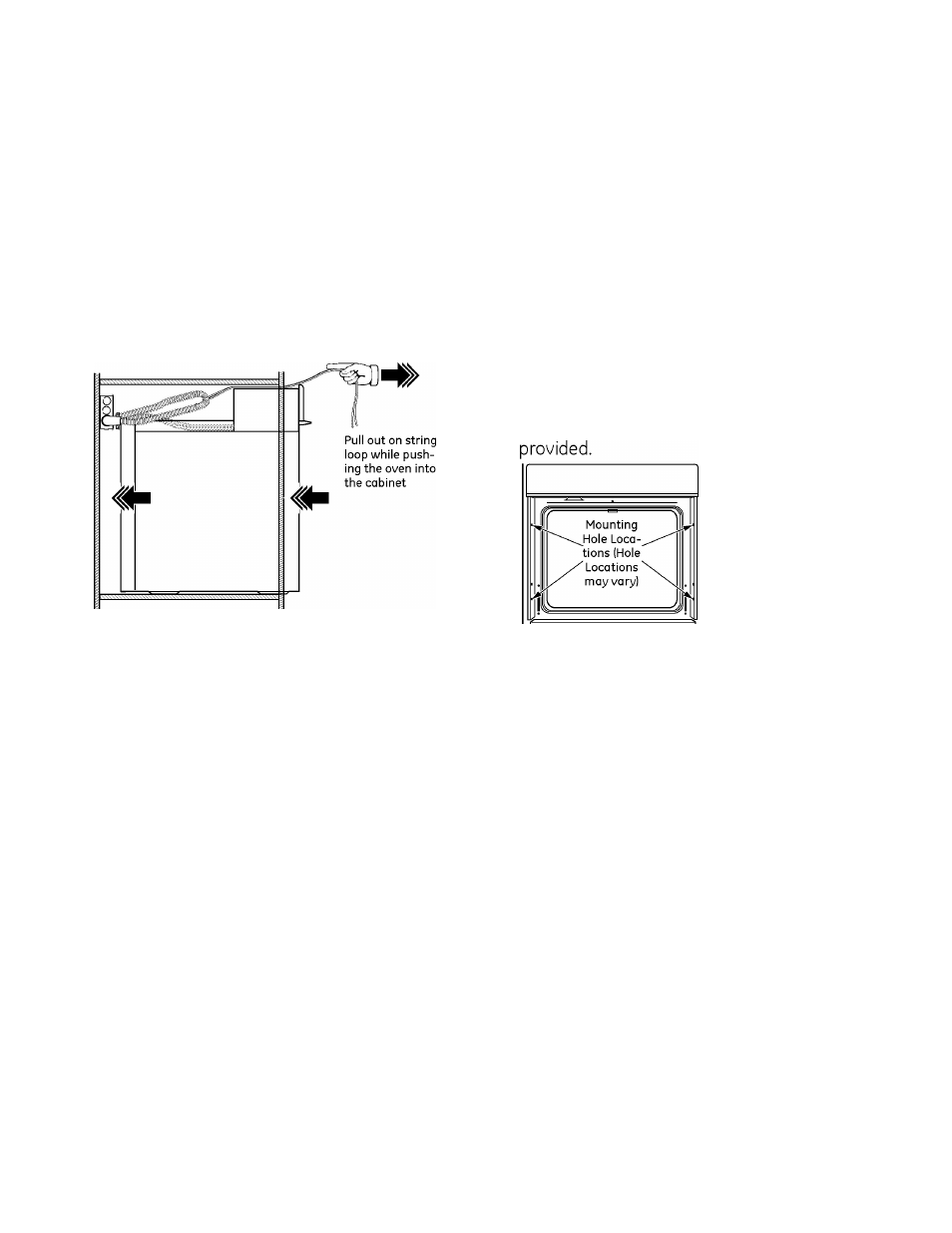

a. Loop (do not tie) a 36" (91 cm) string around
the conduit before the oven is slid into place.
This will keep the conduit from falling behind
the oven.
b. Lift oven into cabinet cutout using the oven
opening os a grip. Carefully push against
oven front frame. Do not push against outside
edges.
c. As you slide the oven bock, pull the string so
that the conduit will lie on top of the oven in a
natural loop.
d. When you ore sure the conduit is out ofthe
way, slide the oven 3/4 way bock into the
opening. Remove the string by pulling on one
end ofthe loop.
C2
Drilling the Pilot Holes and
Mounting the Oven
%
NOTE: Before drilling the pilot holes, make
sure the oven is pushed as far back into
the opening as itwill go
and centered.
a. Drill through the mounting holes (top and
bottom) of the side trim, for the #8 screws
The screws must
be a minimum of
1/4" (0.64 cm) from
the front
ofthe cutout.
A WARNING:^
Mounting screws
must be used. Failure to do so could
result in the oven falling out of the
cabinet causing serious injury.
b. Secure the oven to cabinet with screws pro­
vided.
NOTE: If the cabinet is particle board, you must
use #8 X 3/4" (1.9 cm) particle board screws.
These may be purchased at any hardware store.
11
