10
2. As with the wing and ailerons, use a modeling
knife to make sure the hinge slots are cleanly
cut.

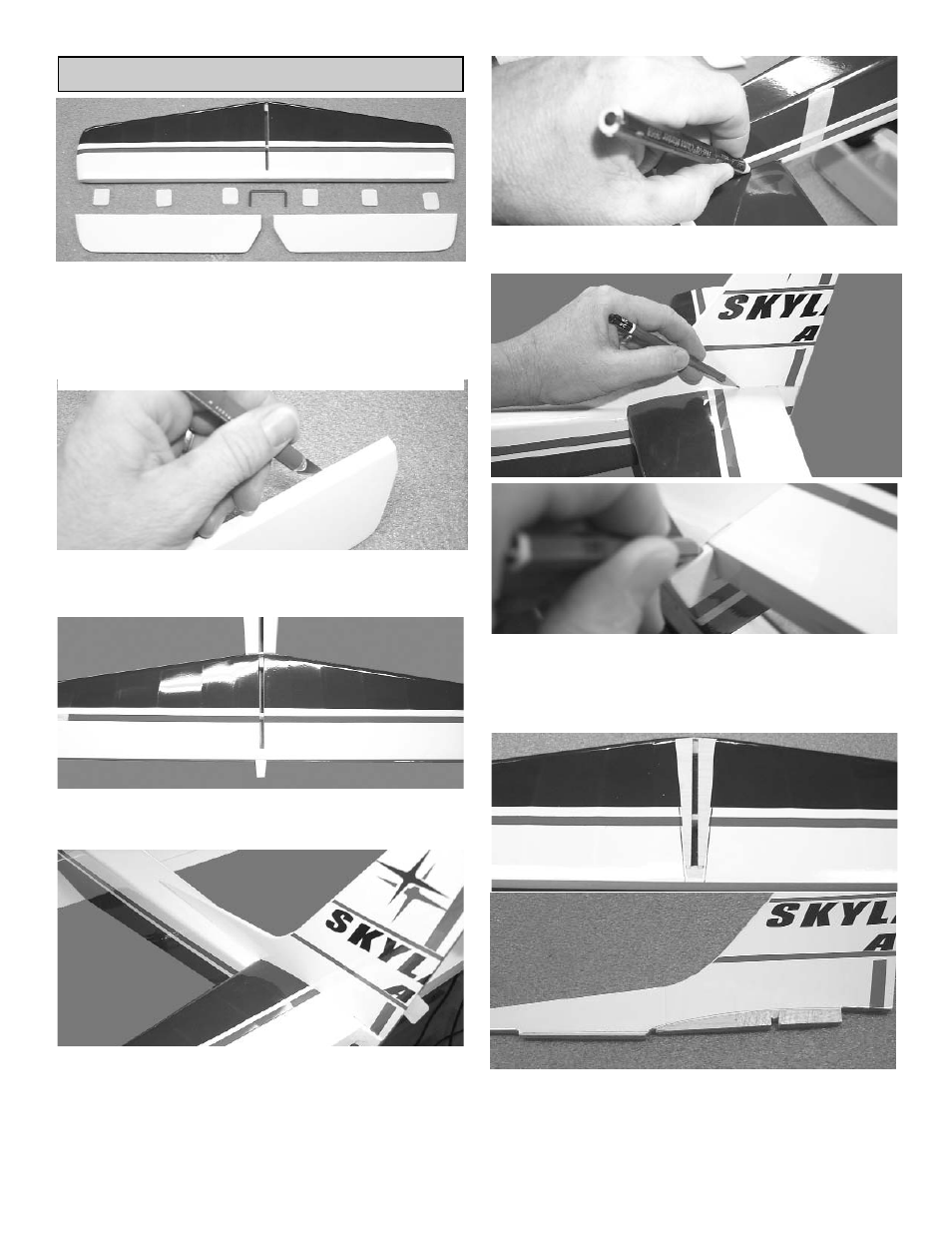

STAB & ELEVATOR INSTALLATION
3. Place the stab on the fuse and align the cen-
ter slot with the front slot and the rear of the
fuselage.
4. Slide the fin into the slot in the fuselage and
the stab.
Push the fin all the way into the slot till it stops.
Tape the fin onto the fuselage.
5. Mark the bottom of the stab along the fuse-
lage.
Mark where the fin sits on top of the fuselage
both in front and rear.
Mark where the fin slides down into the stab
and the fuselage.
6 . Remove the stab from the fuse and, working
1/8" inside the drawn lines, carefully remove
the covering from the bottom of the stab, both
sides of the fin and the top of the fuselage. BE
CAREFUL TO AVOID CUTTING THE WOOD
1. Collect the following parts:
(1) Stabilizer
(2) Elevator
(1) Wing/fuse assembly
(6) Jet hinges
(1) Elevator joiner Wire
