8

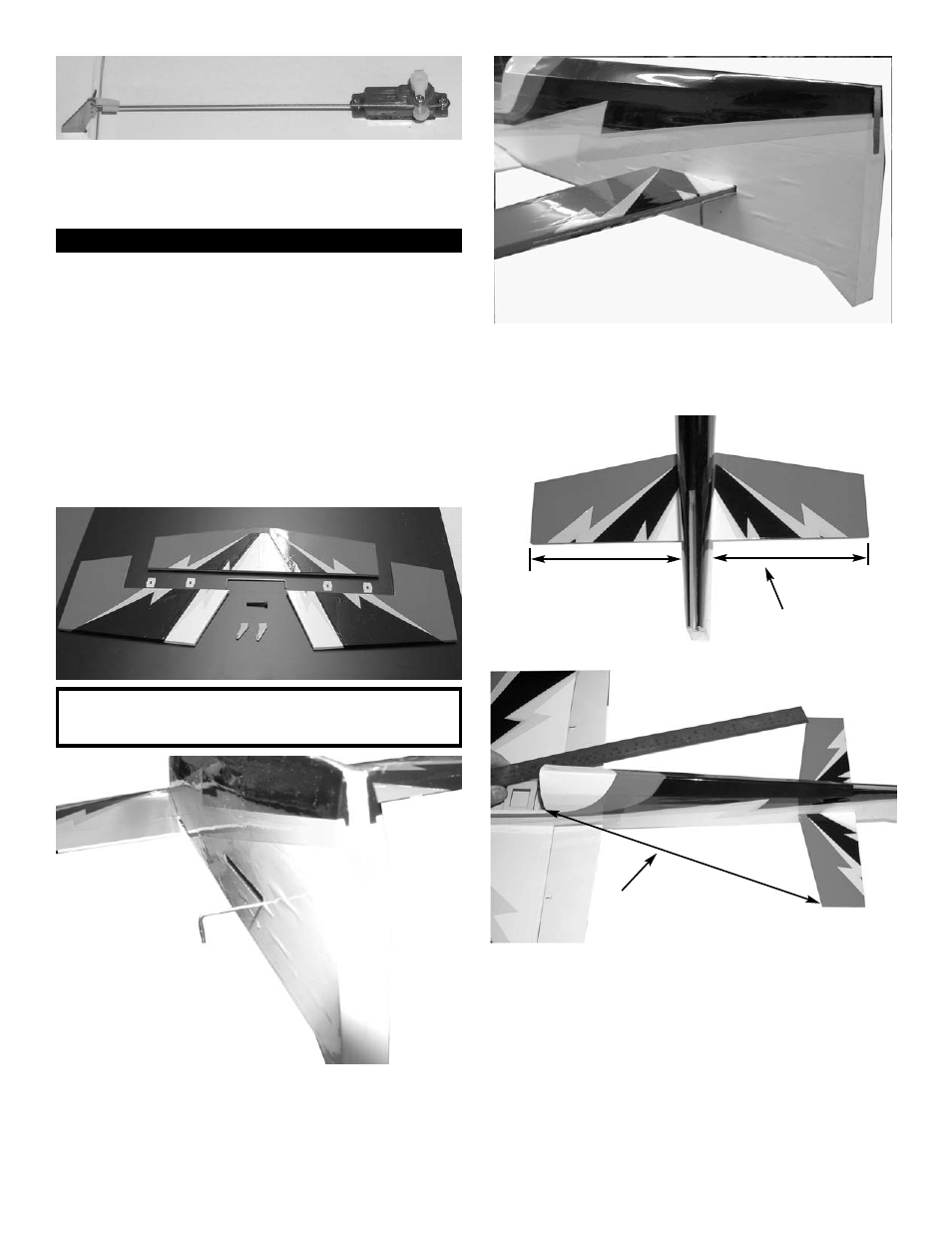

Stabilizer Mount
1. Collect the following items.
(1) stabilizer
(1) right elevator
(1) left elevator
(2) laser cut control horns
(1) fuselage
(1) wing
(1) wing bolts 4-40 x 3/4”
(1) elevator joiner wire
(4) CA hinges
3. Slide the stab into the precut slot in the fuselage.
Measure each side at the trailing edge to make
sure it is centered.
this dimension same
on both sides
equal both sides
Caution:
install the elevator joiner wire first.
2. Slide the elevator joiner wire into the slot for the
stab. You cannot install it after the stab is in
place without cutting the fuselage.
4. Use a ruler and measure from the tip of the stab
to the front of the turtle deck and make sure
the dimension is the same on both sides.
When you have this the same the stab will be
square with the fuselage.
Repeat for the other aileron servo.
