Carl Goldberg GBGA1087 User Manual
Page 11
11

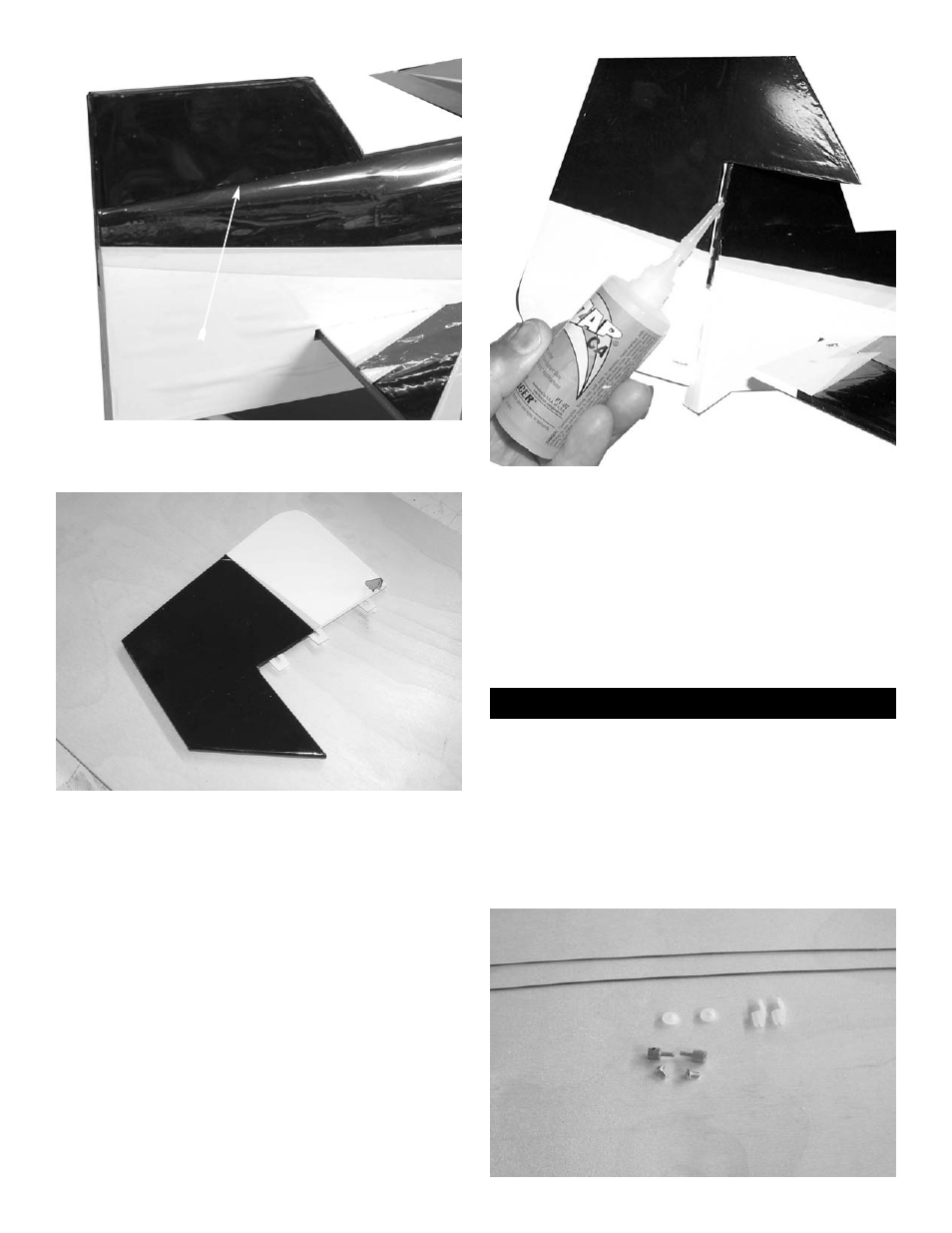

2.
Insert fin in the slot on top of fuselage and glue
in place using thin CA.
Glue Here
3.
Locate the rudder and install 3 CA hinges, do
not glue yet.
Locate the slot for the control horn and remove
covering from pre-cut slot.
Insert the control horn making sure that it
extends 1/32” through the other side and that
the holes are aligned with the hinge line. The
control horn should be on the left side of the
plane.
Glue the control horn in place using thin CA,
glue on both sides.
4.
Install the rudder on the plane using straight
pins to make sure the hinges stay centered
just as we did with the elevators.
Deflect the rudder in one direction to its full
travel and put one drop of thin CA on each
hinge. Move the rudder to full deflection in the
other direction and glue each hinge.
Repeat the gluing so each hinge gets two
drops.
Elevator, Rudder Servo Pushrod Installation
1.
Collect the following items:
(2) servos with hardware(not supplied)
(2) 1/32” x 24”
(2) pushrod connectors
(2) nylon swing in keepers
