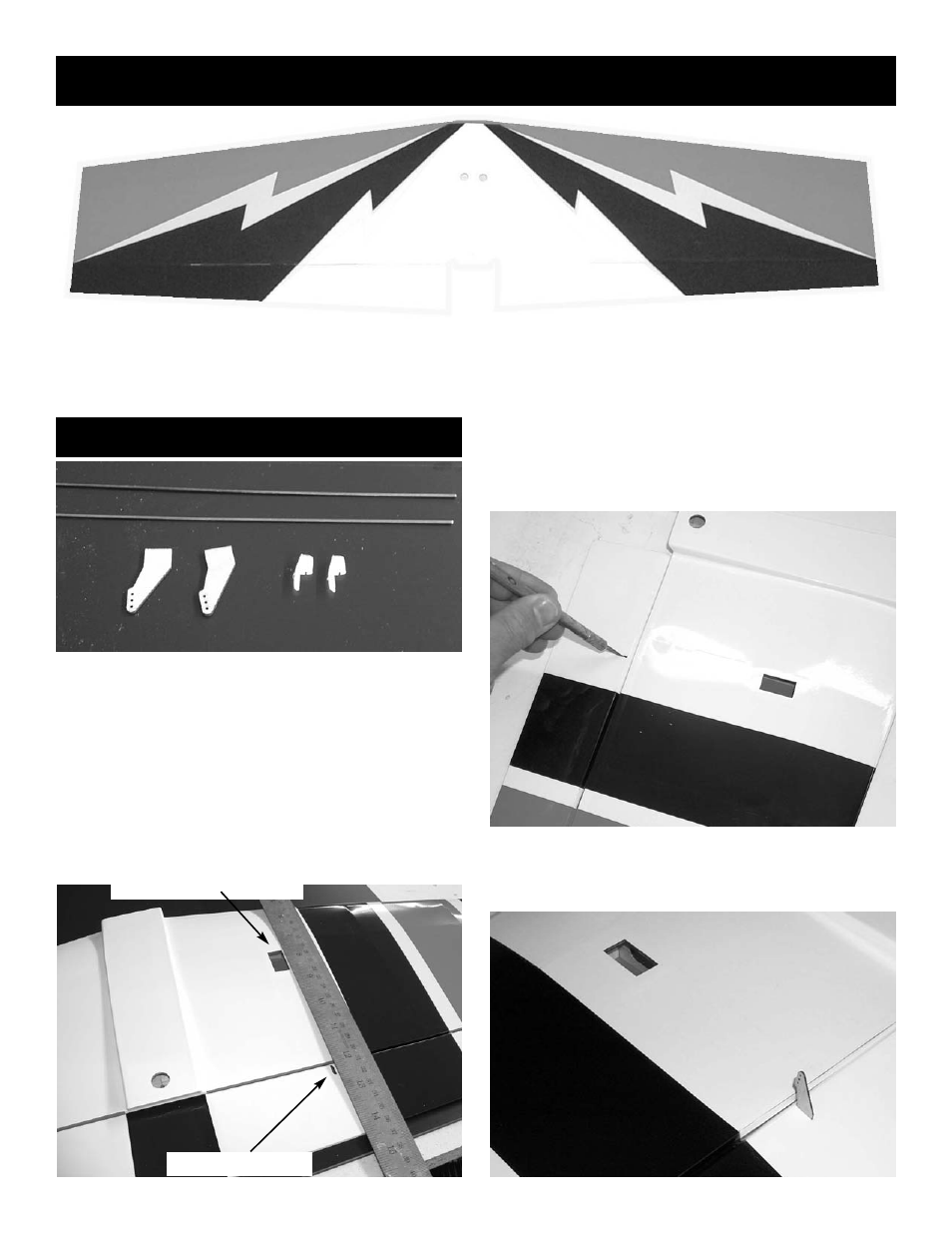

Wing
The wing for the Shock 3D comes pre-assembled with the ailerons already hinged. All that is
required to finish the wing is to install the aileron servos, control horns and attach the pushrods.
AILERON SERVO INSTALLATION
1.
Collect the following parts:
(2) servos with mounting hardware(not supplied)
(1) 6” y-connector(not supplied)
(1) piece of string, soft wire, or cable tie(not sup-
plied)
(2) laser cut control horns
(2) 1/32” x 5-1/2” wire pushrods
(2) mini pushrod connectors
aileron servo cutout
control horn slot
2.
Locate the control horn slot by laying a straight
edge along the outside edge on the servo
opening. The slot is pre-cut in the aileron but
is covered over with the film.
3.
Use an X-acto knife or razor blade and remove
the covering over the control horn opening.
Do this on both sides of the aileron.
