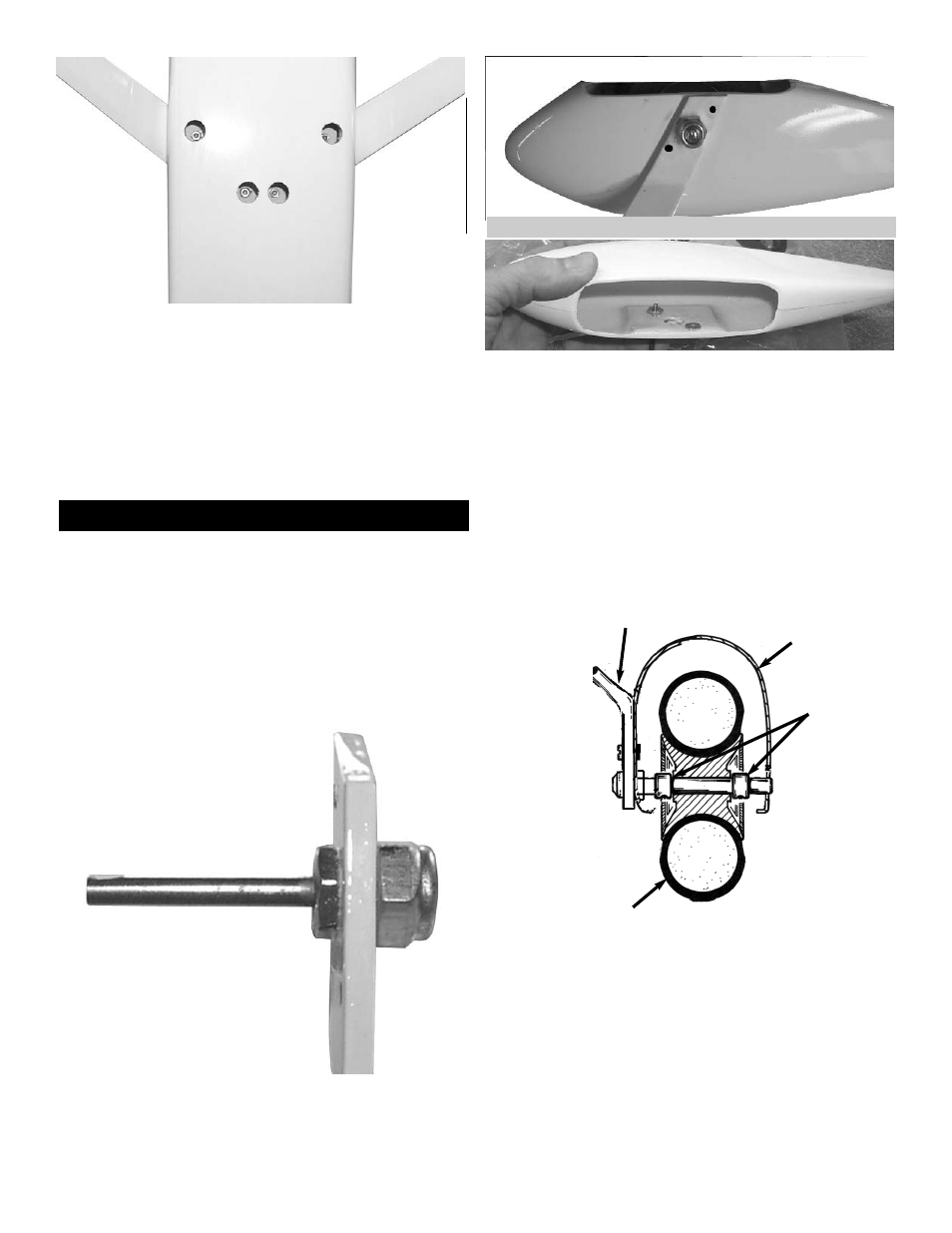

3. Insert the landing gear through the slot on
the side of the fuselage.
4. Using the 8-32 x 1/2” socket head bolts and
thread lock, screw the landing gear into the blind
nuts that are already installed in the fuselage.
Wheel Pants
Collect the following items:
(2) 5-32 x 1-1/4” Axle with Locking Nut
(4) 5/32 Wheel Collars
(4) 4-40 x 1/8” Cup Screws
(4) 4-40 Blind Nuts
(4) 4-40 x 1/2” Button Head Screws
(2) 3-1/4” Wheels
1. Mount the axle to the landing gears.
2. Place the wheel pant onto the axle.
3. Align the bottom of the wheel pant with the
bottom of the landing gear.
4. Mark the hole locations on the wheel pants.
5. Drill 1/8” holes on the marks you just made.
6. Insert the 4-40 blind nuts inside the wheel
pants.
Wheel Collars
Wheel Pant
Wheel
Landing Gear
7. Mount the wheel pants back on the landing
gear along with the wheel collars and wheels.
8. Center the wheel on the axle.
