Provide Power
• For 24 Volt AC power, you must connect the common side of the transformer to the C terminal on the
thermostat sub-base. In dual transformer installations, the transformer common must come from the
cooling transformer.
• For battery power, insert the 2 supplied “AA” type alkaline batteries into the battery compartment located in
the rear housing of the thermostat. Make sure to position the Positive (+) and Negative (-) sides of the batteries
correctly with the +/- symbols in the battery compartment.

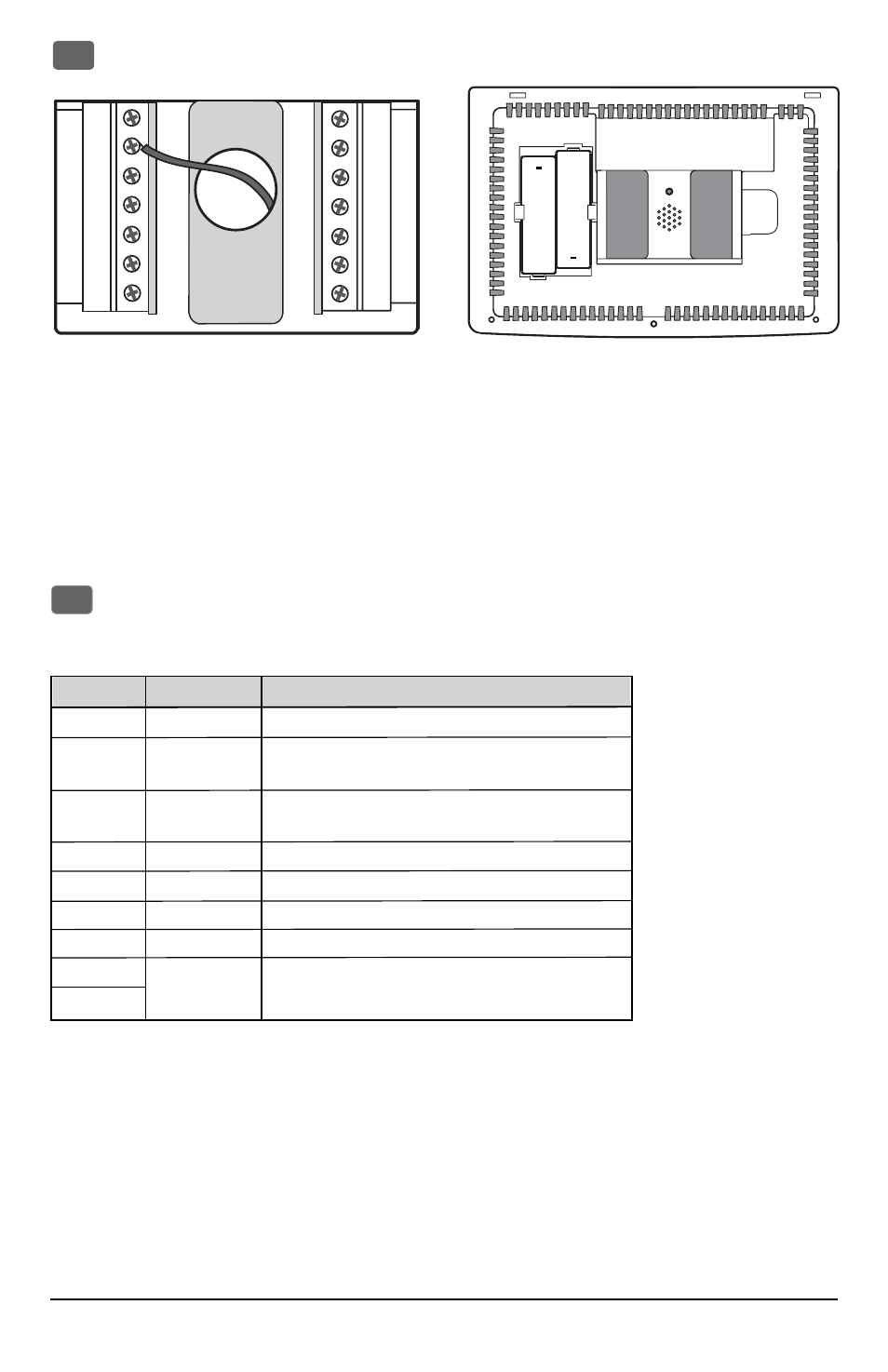

C
+
+
24VAC Power Terminal (C)
Batteries Installed as Shown
2
Wiring Terminations for model 6100
Terminal Function
Description
G
Output
Fan Control
Rc
Input
24 Volt AC Cooling Transformer
(Dual Transformer Systems Only)
Rh
Input
Power Connection (24 Volt AC Heating
Transformer or Millivolt Power Source)
W
Output
1st Stage Conventional Heat
O or B
Output
Reversing Valve (Cool Active or Heat Active)
Y
Output
1st Stage Compressor
C
Input
24 Volt AC Transformer Common
S1
S2
Connecting Your Wires
3
Input
Optional Remote Sensor (Indoor or Outdoor)
