Thermostat Wiring

Install the system thermostats using the instructions
provided by the manufacturer.

Connect the thermostats to the zone panel as shown.

Notes:

• Wiring to the C terminal is required only for

thermostat power.

• E terminal at thermostat 1 controls emergency heat.

See E-Heat Switch Installation Sheet TSB-0708-01
for wiring details.

3.3

Transformer Wiring

Install the transformer using the instructions provided
by the manufacturer. Size the transformer to the damper
requirements. The zone panel has a built-in, self-resetting
fuse. The maximum damper power per panel is 35 VA at
24 VAC.

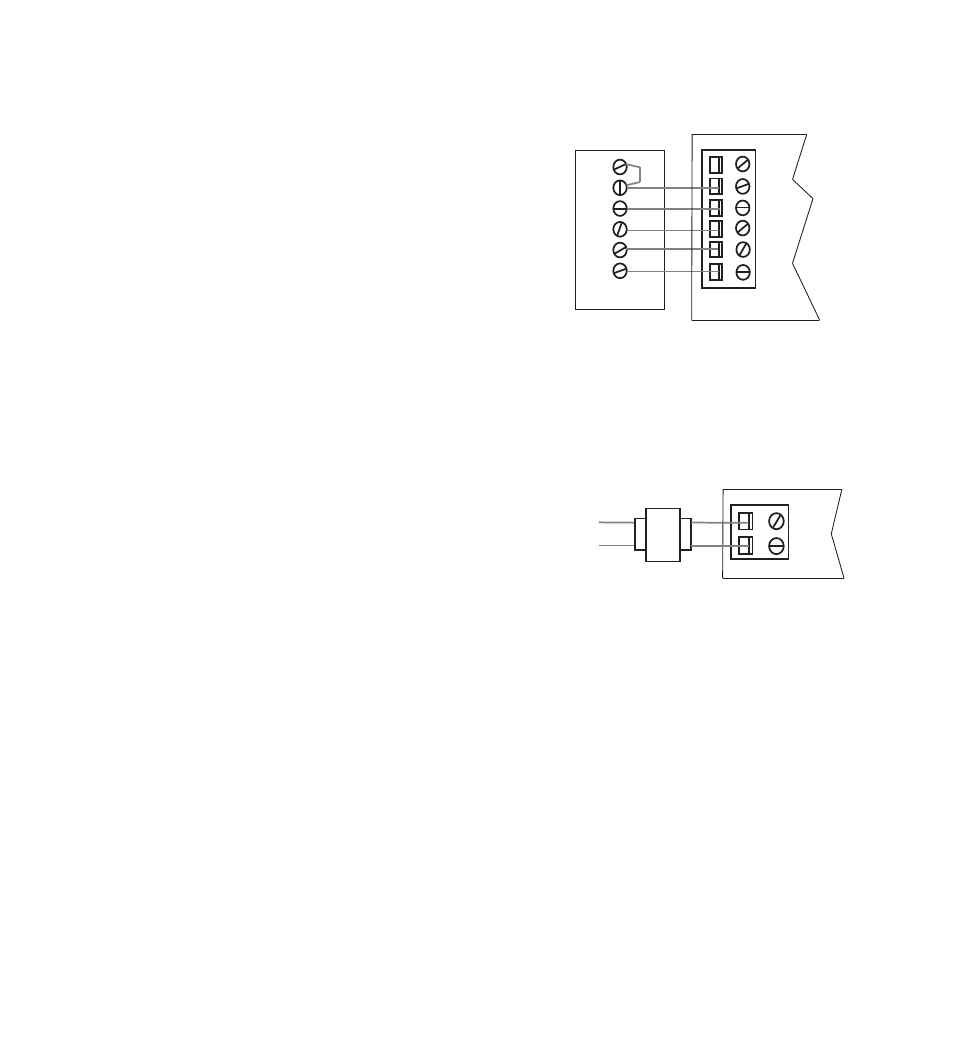

Connect the transformer to the zone panel as shown.

Note: Additional dampers or dampers with a higher current draw will require the use of a separate

slave relay.

E
R
Y
G
W
C

Rh
Rc
Y
G
W
C

Thermostat

Zone Panel

24V
24C

HOT

Dedicated

Zoning Transformer

Zone

Panel
