Braeburn 5000 - Manual (Page 9)

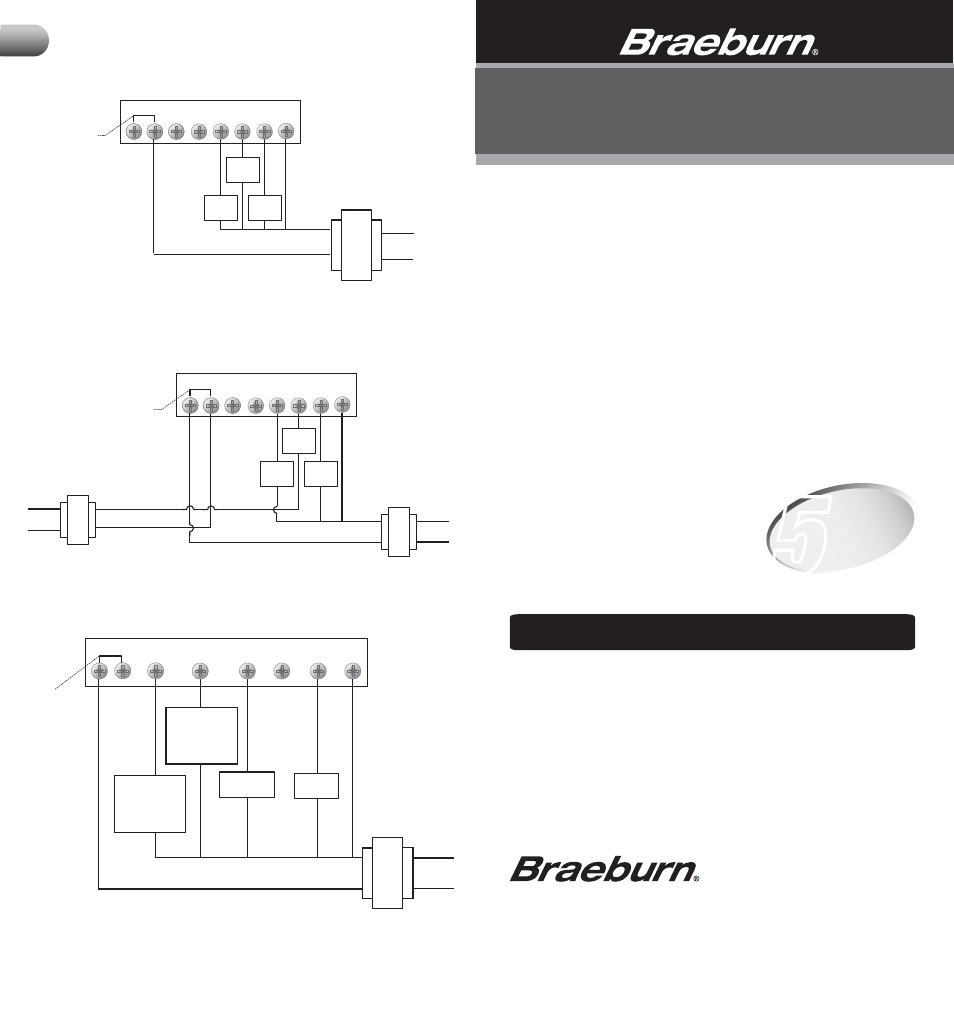

Single Stage Conventional Systems (Dual Transformer)
16
Wiring Diagrams 10
Single Stage Conventional Systems (Single Transformer)
Rc Rh B
Factory Installed
Jumper
O Y W G
Heat
Control
Cool
Control
Fan
Control
C
Transformer Common
(See NOTE 1)
120 VAC 24 VAC
Neutral
Hot
24 VAC 120 VAC
Neutral
Hot
Cooling
Heating
120 VAC
Neutral
Hot
24 VAC
C Rc Rh B
Remove
Factory Installed
Jumper
O Y W G
Heat
Control
Cool
Control
Fan
Control
Transformer Common
(See NOTE)
NOTE: Transformer Common not required for battery-only operation of thermostat.
NOTE: 1. Transformer Common not required for battery-only operation of
thermostat. 2. For heating or cooling only system, ignore opposite connection.
3. For 2-wire 24 Volt AC or 250mV - 750mV millivolt heating systems, ignore
cooling connection and fan control.
Single Stage Heat Pump System
NOTE: 1. Transformer Common not required for battery-only operation of thermostat.
2. For units requiring reversing valve to be energized during heating, connect reversing valve
to B terminal. For units requiring reversing valve to be energized during cooling, connect
reversing valve to 0 terminal.
Compressor
Control
Transformer Common
(See NOTE 1)
B
Reversing
Valve (Active in
Cooling - See
NOTE 2)
O W C
24 VAC
Reversing
Valve (Active in
Heating - See
NOTE 2)
Y G Rc Rh
Factory Installed
Jumper
Fan
Control
Neutral
120 VAC
Hot
©2011 Braeburn Systems LLC • All Rights Reserved • Made in China • 5000-100-009
Braeburn Systems LLC warrants each new Braeburn thermostat against any defects that are
due to faulty material or workmanship for a period of five years after the original date of
purchase by a professional service technician. This warranty and our liability does not apply to
batteries, nor does it include damage to merchandise or the thermostat resulting from
accident, alteration, neglect, misuse, improper installation or any other failure to follow
Braeburn installation and operating instructions.
Braeburn Systems LLC agrees to repair or replace at its option any Braeburn thermostat
under warranty provided it is returned postage prepaid to our warranty facility in a padded
carton within the warranty period, with proof of the original date of purchase and a brief
description of the malfunction. This limited warranty does not include the cost of removal or
re-installation.
This warranty gives you specific legal rights and you may also have other rights that vary from
state to state or province to province. Answers to any questions regarding our limited warranty
may be obtained by writing our corporate offices.
Braeburn Systems LLC
2215 Cornell Avenue • Montgomery, IL 60538
Technical Assistance: www.braeburnonline.com
Call us toll-free: 866-268-5599 (U.S.)
630-844-1968 (Outside the U.S.)
WARRANTY FACILITY: Braeburn Systems LLC
Attn: Warranty Department
2215 Cornell Avenue
Montgomery, IL 60538
Premier Series
Programmable Thermostats
Store this manual for future reference.
LIMITED WARRANTY
5
YEAR
WARRANTY
LIMITED
