PROGRAMMING
cont.
5
NOTE:
To erase all entered programs, current time of day, day of week and other user
settings, gently press the RESET button using a paper clip or a small pencil tip. This will
return all thermostat settings to their default values.
5. Press the or button to change the setpoint temperature to the desired setting in 1˚ F
increments (0.5˚ C), press the PROG button to save. The thermostat will now display the
DAY setpoint time and temperature. Again, you will see the hour portion of the setpoint time
and the AM/PM indicator will be flashing.
6. Follow steps 3 through 5 to set the setpoint times and temperatures for the MORN, DAY,
EVE and NIGHT setpoints for the Weekday group in the HEAT mode.
7. After pressing the PROG button, you will enter the Weekend Program Group. The display
will show SA, SU to indicate the Weekend group is being programmed. The hour portion
of the MORN setpoint time and the AM/PM indicator will be flashing.
8. Follow steps 3 through 5 to set the setpoint times and temperatures for the MORN, DAY,
EVE and NIGHT setpoints for the Weekend group in the HEAT mode.
9. Place the system switch in the COOL mode of operation. The display will show COOL. Follow
steps 2 through 8 to program the setpoint times and temperatures for the Weekday and
Weekend groups in the COOL mode.
3. Press the or button to change the time to the desired hour in 1 hour increments,
press the PROG button to save. The minute portion of the setpoint time will begin flashing.
4. Press the or button to change the time to the desired minute in 10-minute increments,
press the PROG button to save. The SET TEMP will begin flashing.

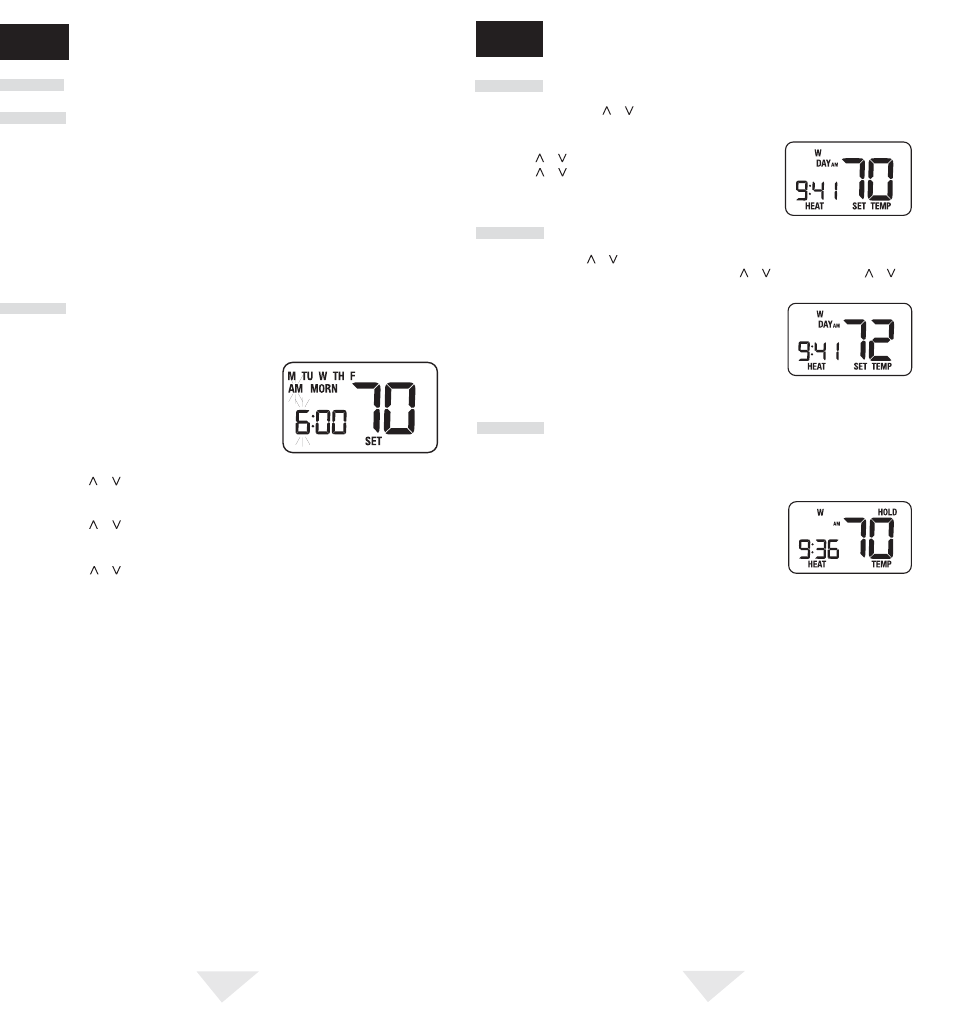

Entering Your Program
1. Place the system switch in the HEAT mode of operation.
2. Press the PROG button to enter Program
setting mode. The MORN setpoint of the Weekday
Program Group will be displayed. The display
will show M, TU, W, TH, F to indicate the
Weekday group is being programmed. The
hour portion of the setpoint time and the
AM/PM indicator will be flashing.
Programming Overview
Your thermostat contains separate Weekday and Weekend Program Groups that allow you to
change the daily setpoint times and temperatures to meet your individual schedule needs.
Weekday - allows you to program all the weekdays (M, TU, W, TH, F will show in display) at the
same time. Allows programming times and temperature settings for four setpoints (MORN,
DAY, EVE & NIGHT) to meet your weekday schedule needs.
Weekend - allows you to program all the weekend days (SA, SU will show in the display) at the
same time. Again allows programming times and temperature settings for four setpoints
(MORN, DAY, EVE & NIGHT) to meet your weekend schedule needs.
4.4.1
4.4.2
4.4 Setting Your Energy Saving Programs cont.
6 7
5.1 Review Set Temperature
5.2 Temporary Program Override
1. Press and hold or button for 3 seconds. The entire display will flash once and the
SET TEMP indicator will be displayed. Release the or button and press the or
button again as desired to adjust the set temperature.
5.3 Extended Hold (Vacation) Mode
1. Press the HOLD button to bypass the program schedule. The current setpoint temperature
will be held either permanently or for 24 hours depending on the setting selection made
in section 4.3.2.
2. Press the HOLD button again to return the thermostat to
normal program operation.
3. The hold period lasts until the hold is released as in
step #2 above, or is limited to 24 hours if the default was
changed in the User Options Settings ( see section 4.3.2).
ADDITIONAL
OPERATION FEATURES
5
2. The display will return to normal operating mode after
15 seconds or you can press the RETURN button.
3. The program indicator (MORN, DAY, EVE OR NIGHT) will
be flashing in the display indicating that a Temporary
Program Override is in effect. The Temporary Program
Override will reset when the next setpoint time occurs or
after 4 hours - whichever comes first.
1. Press and hold the or button. The current setpoint temperature will be displayed in
the place of the current room temperature, and the indicator SET TEMP will be displayed.
2. The display will return to normal operating mode when
the or button is released. Continuing to hold
the or button for 3 seconds or longer will allow the
user to temporarily override the current programmed
setpoint (See Temporary Program Override).
