M1 CHUTE ASSEMBLY & OPERATION
SPLIT TAILGATE

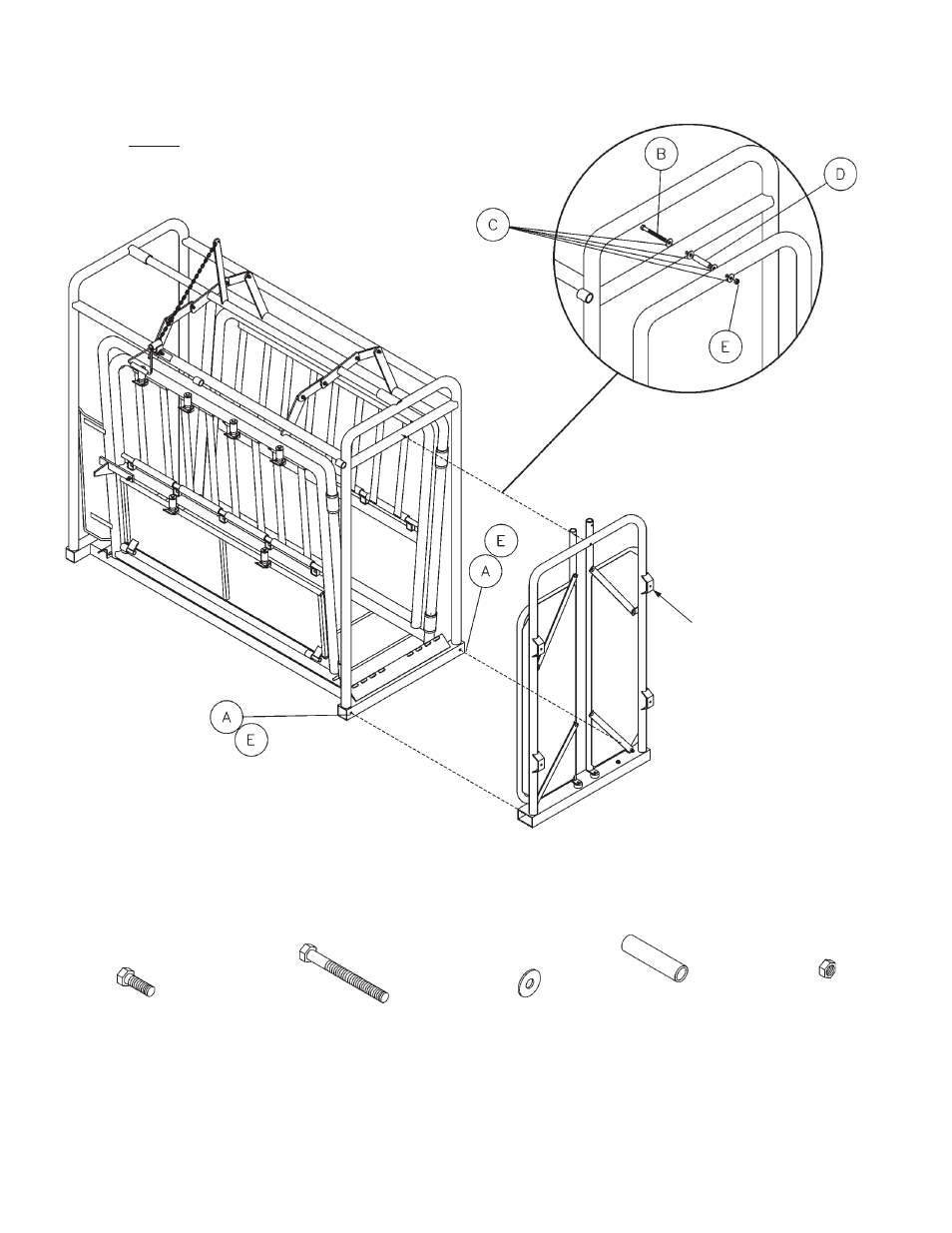

Step 1
Bolt the top of the tailgate frame to
the back of the M1 Squeeze Chute
as shown. Leave finger tight until
the bottom two bolts are attached.
NOTE: This tailgate
frame is correctly
mounted if the four
A.I. Cage brackets
face outward as
shown.
Bolt the bottom of the tailgate
frame to the chute using the
hardware indicated.
A
½” x 1” Hex Bolt
B
½” x 8” Hex Bolt
C
½” Washer
D
3½” Pipe Spacer
E
½” Lock Nut
