F-19765 1 10-5-01

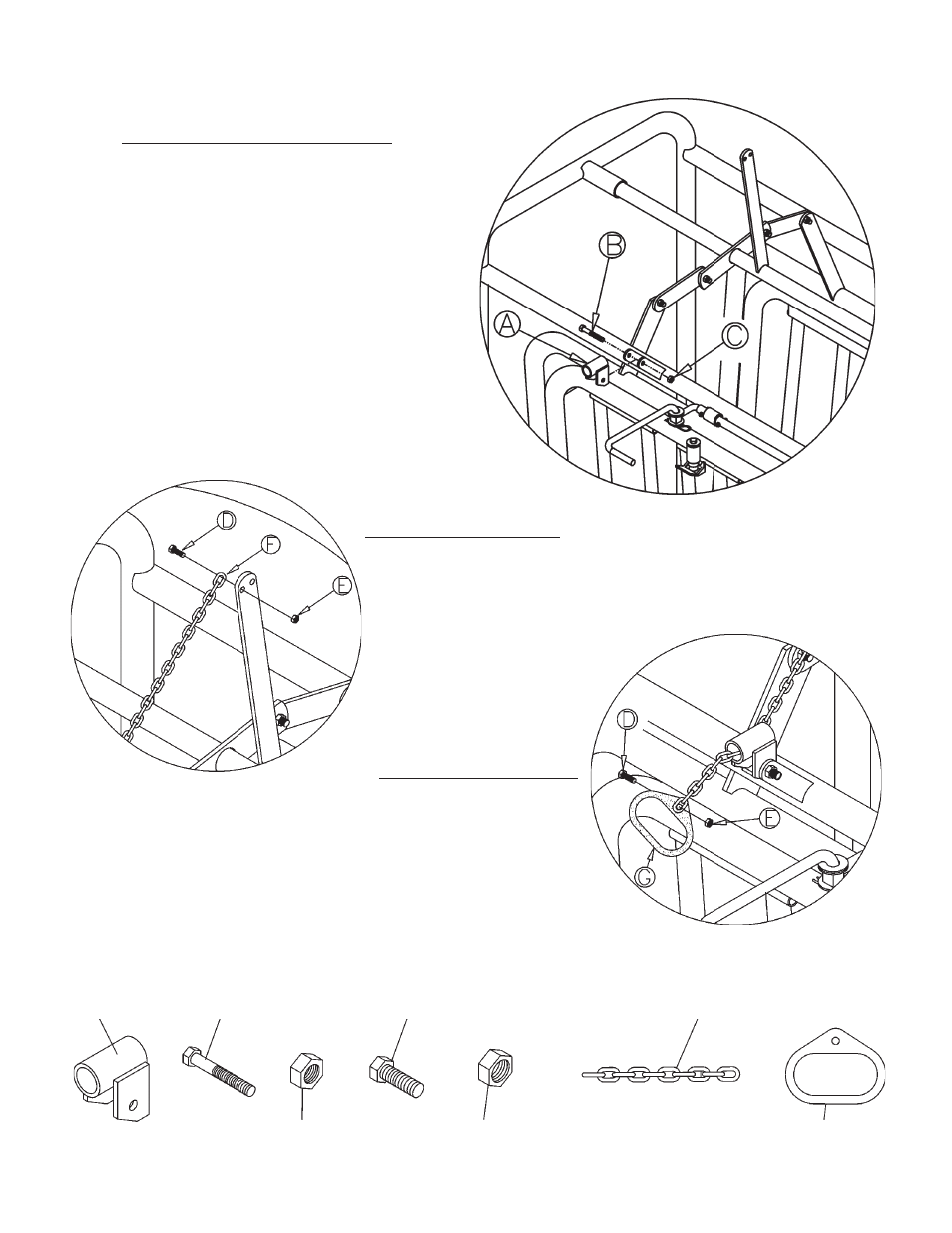

ASSEMBLY OF THE SQUEEZE LATCH AND HANDLE
1.1 SQUEEZE LATCH ASSEMBLY
Determine what side of the squeeze chute
you want to operate from.
Next, Install the squeeze latch into the
bracket located on the top support tube on
the side that you choose to operate from.
1.2 CHAIN ASSSEMBLY
Attach the chain to the
rocker arm lever located
in the middle of the
squeeze chute.
1.3 HANDLE ASSEMBLY
Feed the unattached end
of the chain into the
squeeze latch, then attach
the handle with the
hardware supplied.
Squeeze
Latch
A
Bolt ½” x
3½”
B
C
Nut, ½” Locking
E
Nut, 3/8” Locking
Bolt 3/8” x 1”
D
Chain 3/16” x 36” Long
F
G
Handle
