F-19391-1 2 10-5-01
M1 SQUEEZE CHUTE ASSEMBLY & OPERATING INSTRUCTIONS

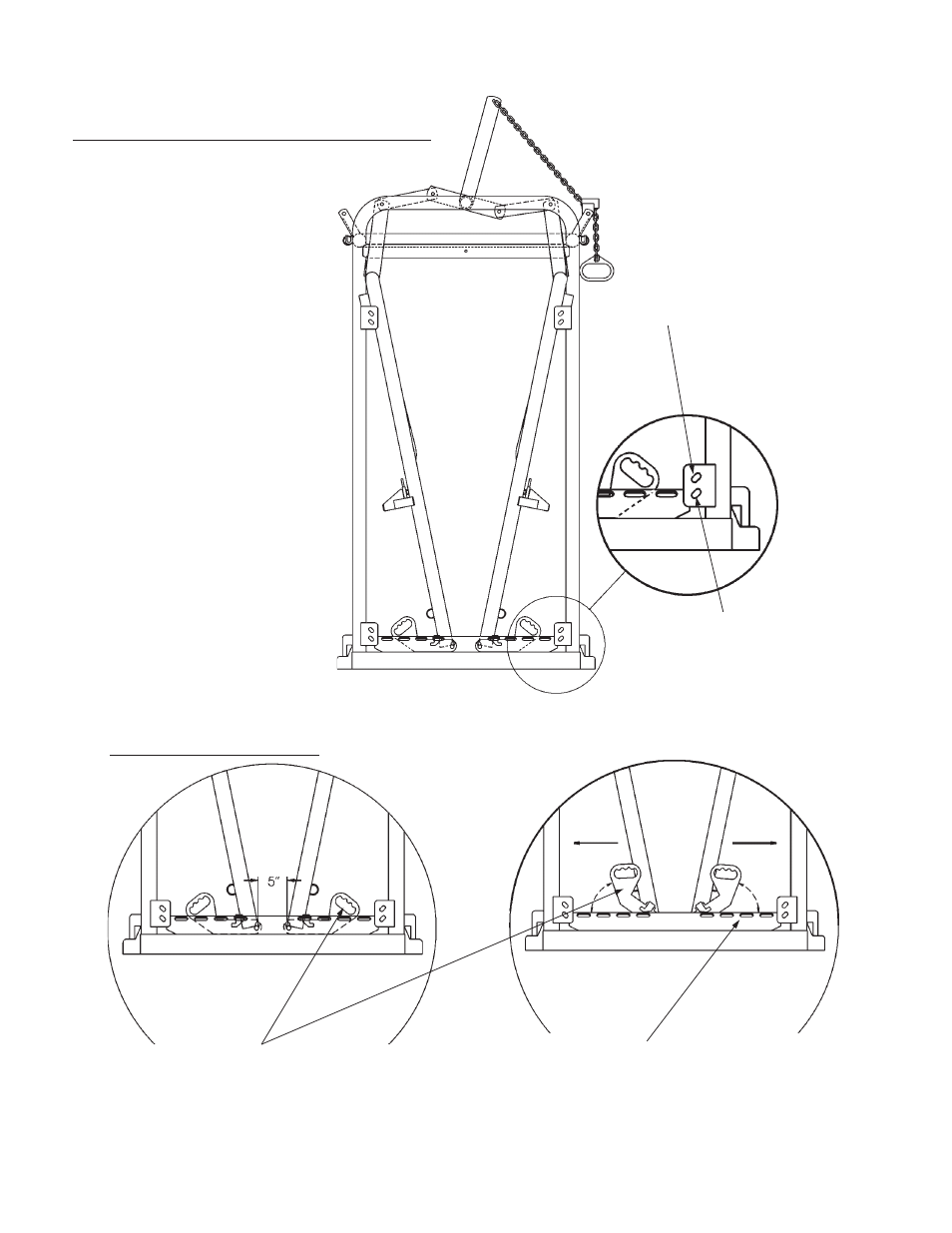

Use the top slot of each
bracket to mount a
self-catching headgate.
Use the bottom slot of
each bracket to mount
a manually-operated
headgate.
2.1 HEADGATE MOUNTING INSTRUCTIONS
2.2 FLOOR ADJUSTMENT
To adjust the bottom floor inward or
outward, lift the floor handle out of
the adjustment slots and move the
floor to the desired setting.
The slide track periodically needs to
be cleaned and greased. This will
help ease the adjustment of the side
inward and outward.
