M1 CHUTE ASSEMBLY & OPERATION

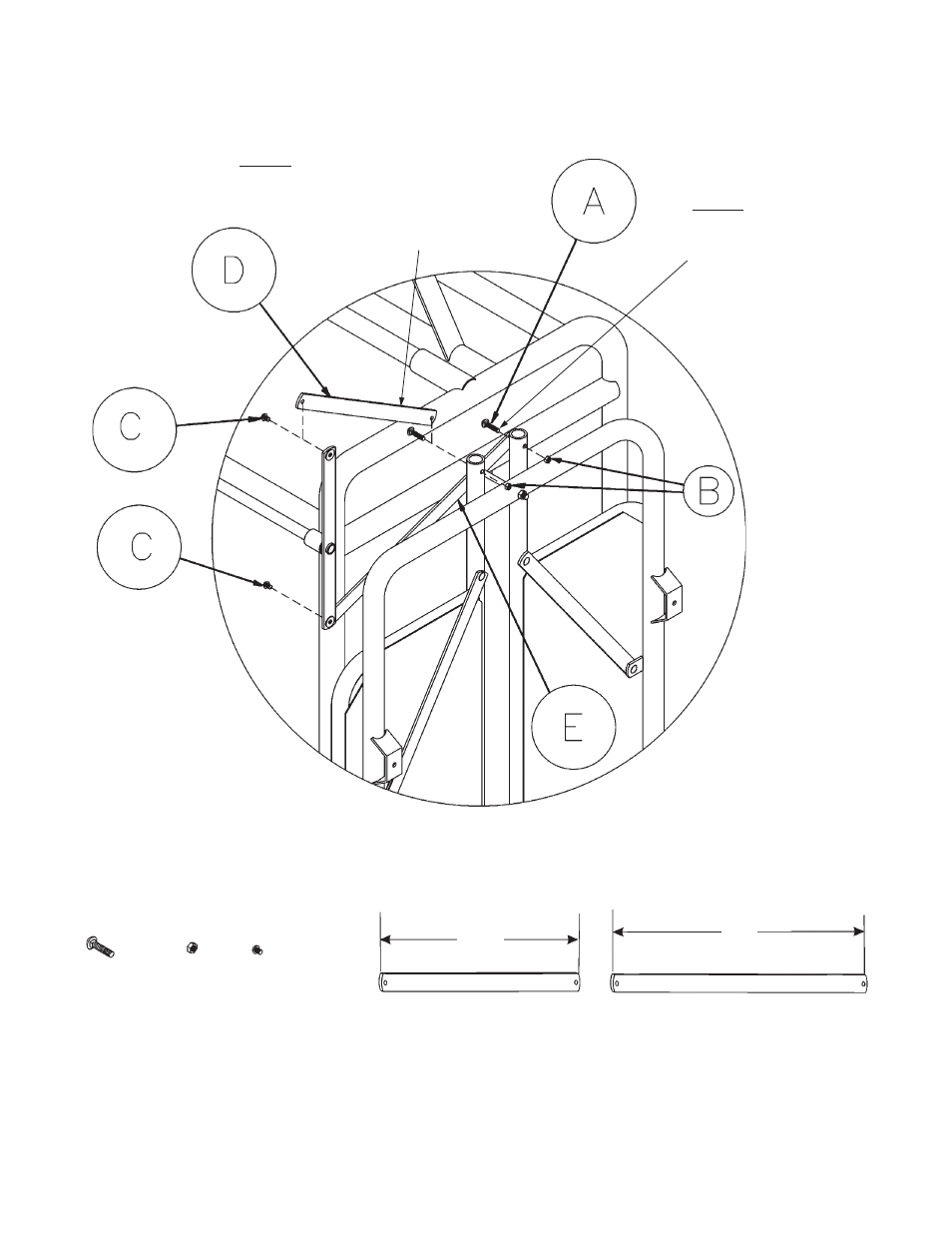

SPLIT TAILGATE
The 28” long tailgate
linkage will attach to
the right tailgate door
and to the bottom of
the rocker arm.
Attach the 20¾” long tailgate
linkage to the top of the
rocker arm. The other end of
the linkage will attach to the
left tailgate door.
A
3/8” x 2½”
Carriage Bolt
3/8”
Lock
Nut
B
C
3/8” x 1/2”
Button
Head
Screw
D
Tailgate Linkage
20¾” Long
E
Tailgate Linkage
28” Long
20¾”
28”
Step 6
Step 7
