ASSEMBLY INSTRUCTIONS
THANK YOU FOR PURCHASING THIS PRODUCT
For questions about this product, or parts inquiries, please contact our Customer Service Center listed below.
Circular Sweep Pen With Alley Series 2
F- 17839-1C
TECHNICAL INFORMATION 70 023
Rev. 4-7-03 9-26-00
CUSTOMER SERVICE CENTER
PO Box 569
Columbus, NE
68602-0569
Ph: 1-800-447-2751
Fax: (402) 563-7447
www.behlencountry.com

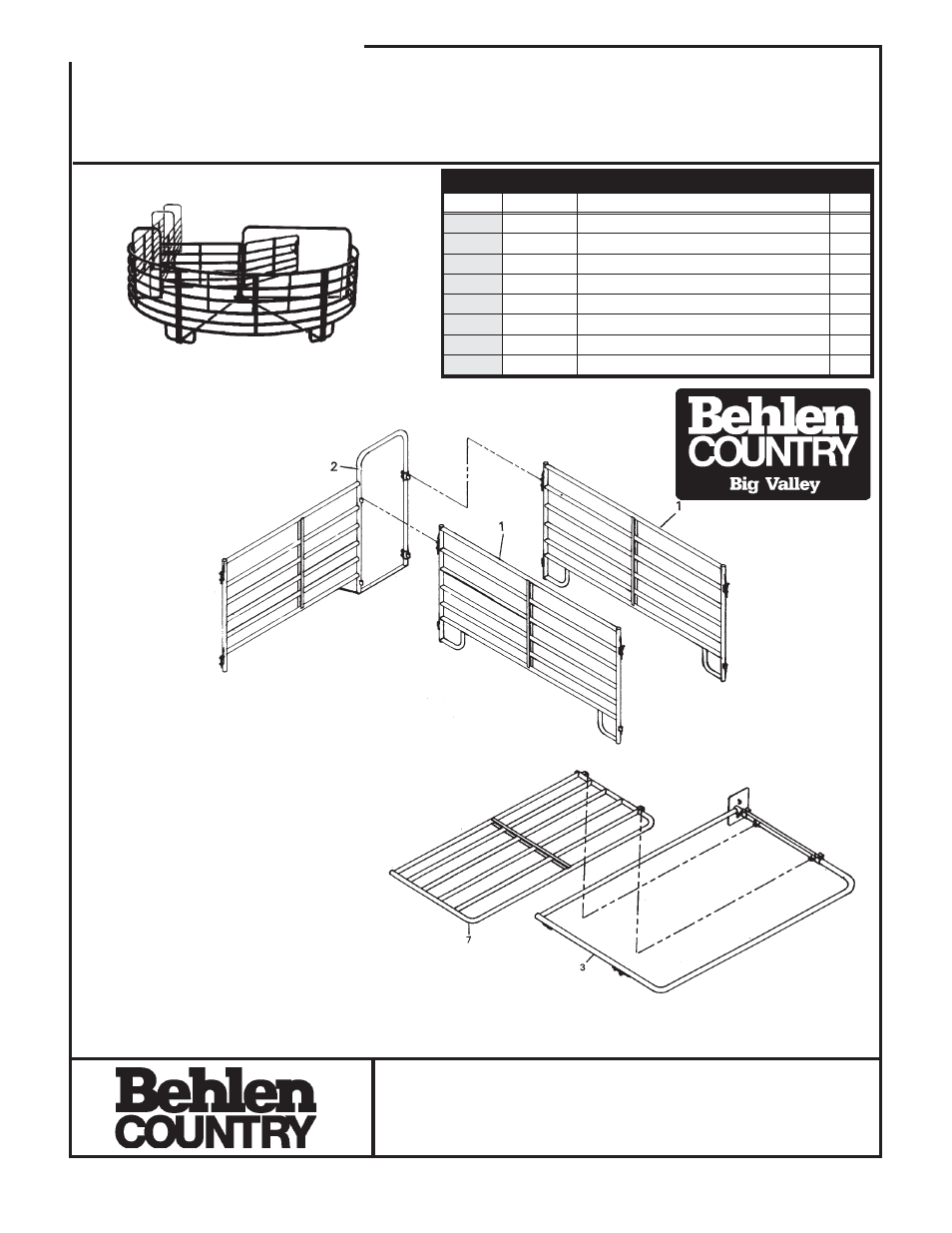

It is important to install the circular sweep system on level ground for
best results. Begin your installation by connecting the straight panel (1) to
the entrance panel (2).
Next, connect the 10’ sweep gate to the main 10’ arch. Attach the
gate using the ½” x 2” hex head bolts and ½” lock nut. The assembly
of the gate to the main arch is simplified by laying the main arch on
the ground and then attaching the gate.
MATERIAL LIST
Ref No.
Part No.
Description
Qty.
1
46160282
10’ Straight Crowd Alley Panel
4
2
46180232
10’ Panel with Alley Frame (Entrance Panel)
1
3
46180222
Arch for Sweep Gate
1
4
46180212
Brace, 10’ Ground Support
2
5
46179572
Panel, Curved 10’
3
6
46112232
Alley Arch (Non-Adjustable)
2
7
46160292
Gate, 10’ Sweep Open System
1
8
46180272
Latch Assy. & Hardware
1
Hardware Pkg.
46900048
