ASSEMBLY INSTRUCTIONS
THANK YOU FOR PURCHASING THIS PRODUCT
For questions about this product, or for parts inquiries, please contact our Customer Service Center listed below.
“V” Trough Grain Feeder
74023337 (4’) & 74033327 (8’)
Hardware Pkg.
74900147
F-19964
TECHNICAL INFORMATION 70 092
Rev. 9-13-06 3-11-03
CUSTOMER SERVICE CENTER
PO Box 569
Columbus, NE
68602-0569 Ph: 1-800-447-2751
Fax: (402) 563-7447
www.behlencountry.com
Assembly Instructions for
“V” Trough Grain Feeders
The 4’and 8’ “V” Trough Feeder is broken down
into 4 main components and requires assembly.
They are as follows:
(1) Top Brace Tube
(1) “V” Trough
(2) “A” Frame

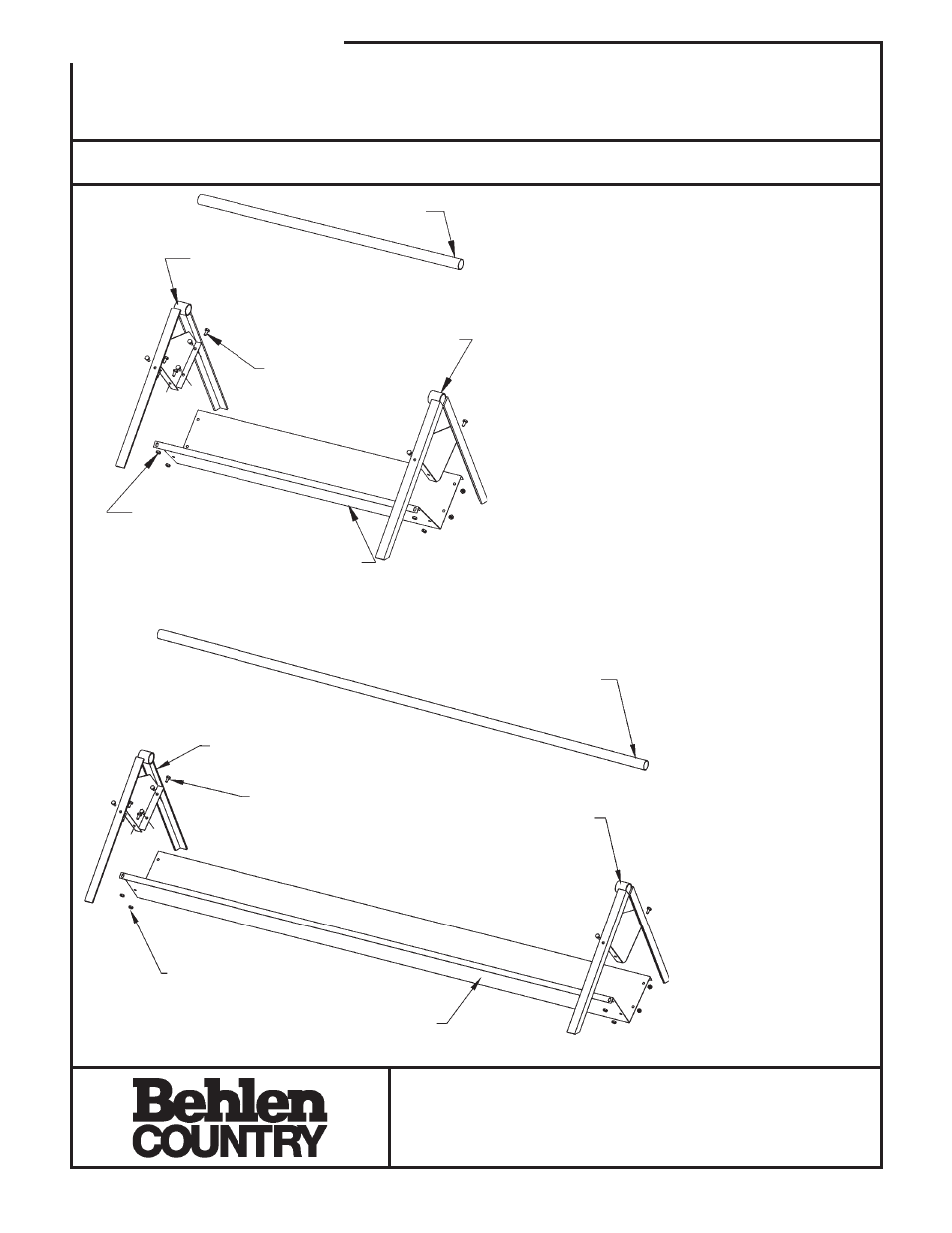

A hardware package is also included. These 4
components bolt together as shown at left.
Step #1 Install one end of the Top Tube into the
top of the “A” Frame. This will be a snug fit.
Step #2 Install the other “A” Frame at the
opposite end of the top tube. You should now
have a freestanding framework.
Step #3 Attach the “V” Trough to the bottom of
the “A” Frame using 5/16” x 3/4” bolts. You may
find it helpful to place a box or something similar
under the “V” Trough while aligning and installing
the bolts. Install 2 bolts with washers at one end of
the assembly and loosely attach a nut with washer
on each.
Step #4 Move to the other end and install all 6
bolts with washers. You
may find it necessary to
snug up the two bolts that
go through the angle iron
legs to better align the
other holes. After all 6 bolts
are in place, attach the
remaining nuts with
washers and ensure all 6
nuts are properly tightened.
Step #5 Move back to the
other end and complete
installing the bolts in the
remaining holes. Attach the
remaining nuts and
washers as needed.
Ensure all 6 nuts are
properly tightened.
Your “V” Trough assembly
is now ready for use.
3188 142
5/16” X 3/4”
L-BOLT
74123317
“A” FRAME
2688 060 5/16” NUT
3948 001 5/16” WASHER
7460 2267
“V” TROUGH
7460 2367
“V” TROUGH
7460 2257
TOP TUBE BRACE
74602377
TOP BRACE TUBE
74123317
“A” FRAME
3188 142
5/16” X 3/4” L-BOLT
74123317
“A” FRAME
74123317
“A” FRAME
2688 060 5/16” NUT
3948 001 5/16” WASHER
