VAX Matrix Switching System—User Manual
27

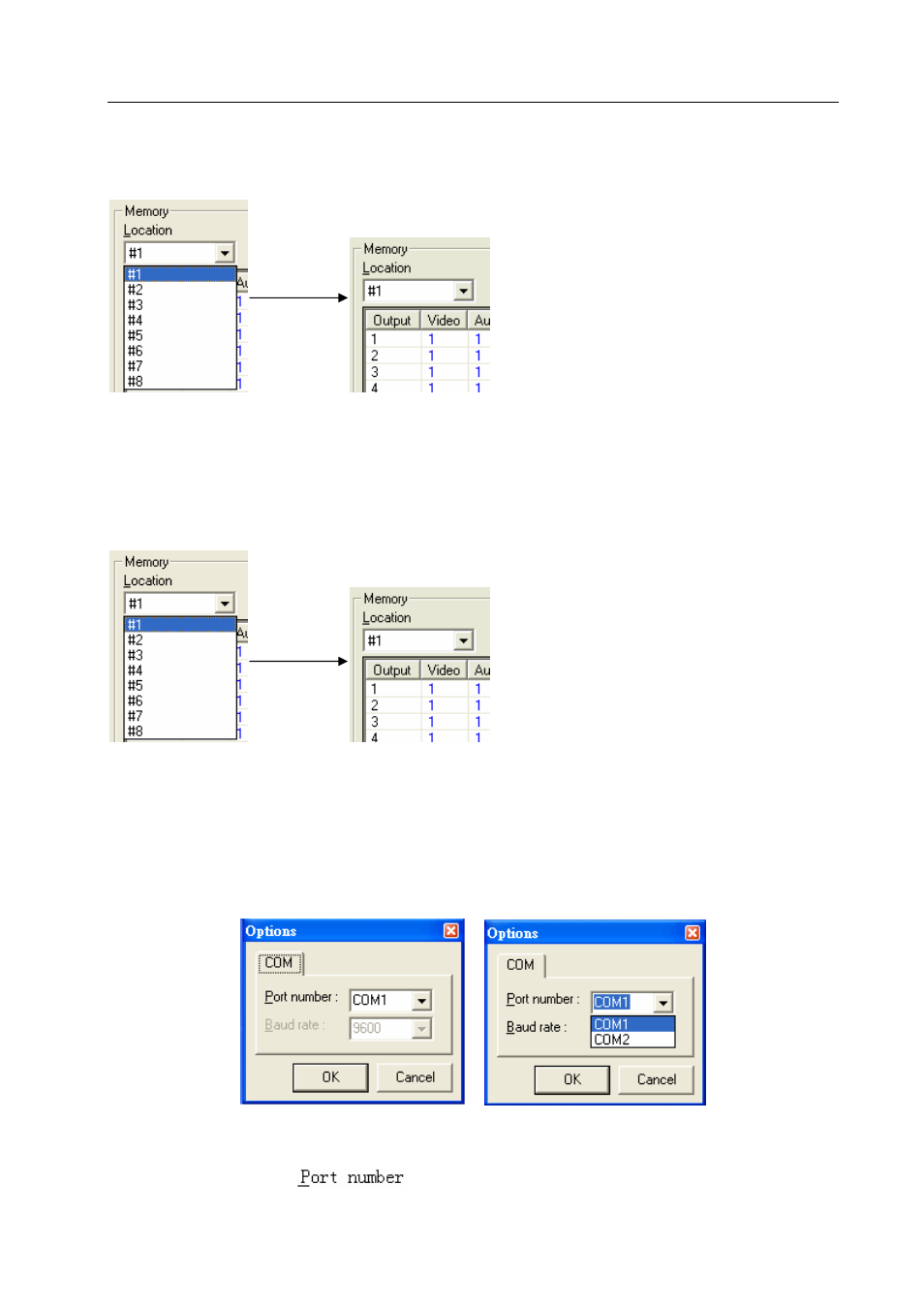

A specific example of the Store Function is described below:
Stores all the present input/output switching relations to Location #1. First, select Location
#1,as shown in the figure below:
, then click the save key to save all the
present input/output switching relations to Location #1.
Retrieve Function Description: To retrieve the saved input/output switching relations.
A specific example of the Retrieve Function is described below:
To retrieve the input/output corresponding relations saved in Location #1. First, select Location
#1 as shown in the figure below:
, then click the Load key to retrieve all the
input/output corresponding relations stored in Location #1.
7.0.2.6 Scan Function Usage
Use the mouse to click the Scan key to refresh the AV Matrix operating interface.
7.0.2.7 Options Function Usage
Activation Function:
In the main menu, select Options to prop up the Options window as shown in Figure 7-4(a)
Figure 7-4(a) Figure 7-4(b)
Function Description:
Linking Methods: In “
” select either COM1 port or COM2 port as shown in
