VAX Matrix Switching System—User Manual
20

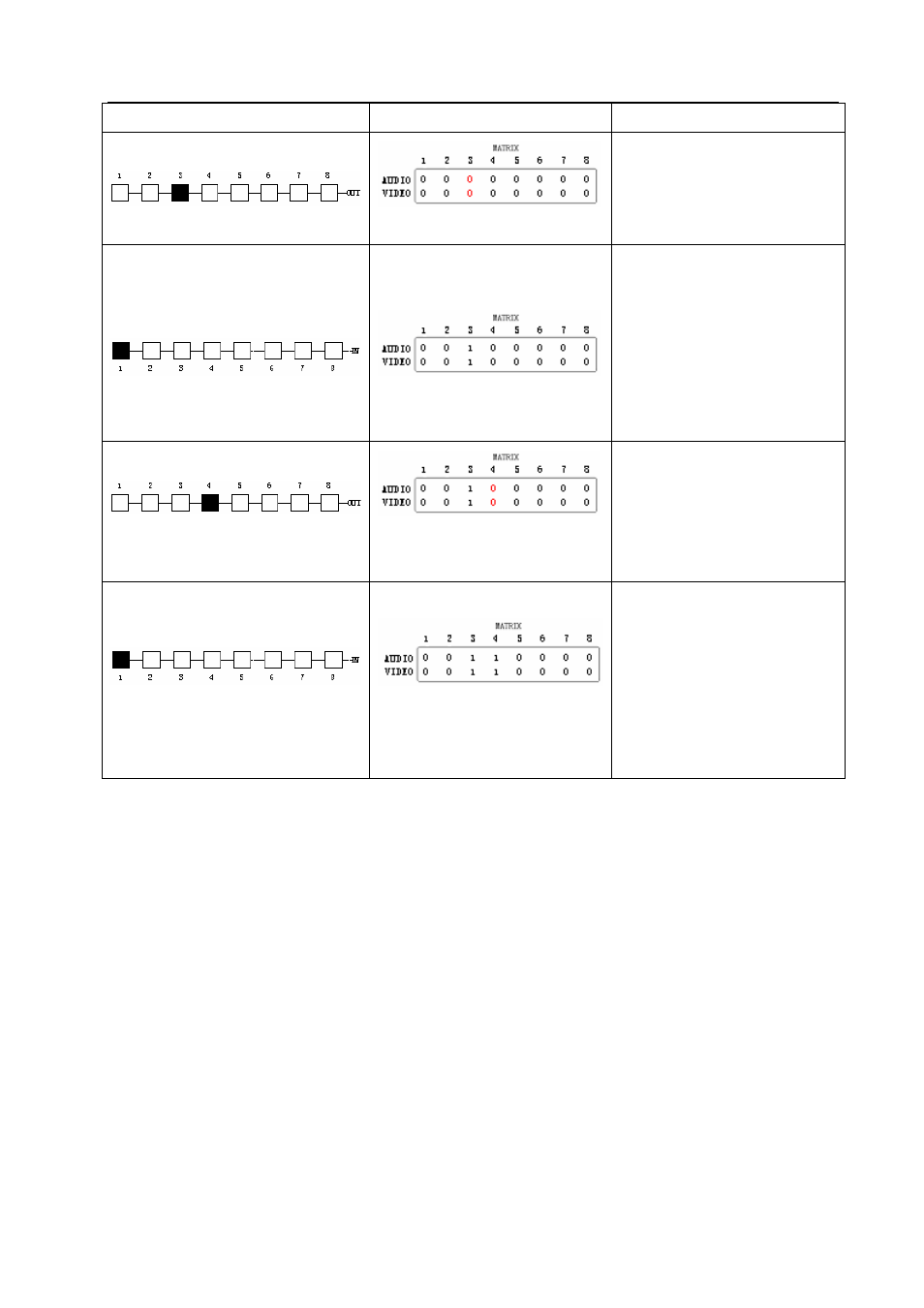

Key LCD
Display
Operation
1. Press the NO. 3 key of the
output channel for 2 seconds, then
enter the input channel when the
red 0 on LCD begins to flicker.
2.Press the NO.1 key of the Input
channel for 2 seconds for selection
of NO.1 channel to input into
NO.3 channel
for output. The LCD shows 1 at
channel NO.3 for both Audio and
Video. Enter the Output channels.
3. Press the NO.4 key of the
output channel for 2 seconds
and then enter the input
channel when the red 0 on
LCD flickers.
4.Press the NO.1 key of the output
channel for 2 seconds for selection
of NO.1 channel for input and
NO.3 and NO.4 channels for
output. NO.3 and NO.4 channels
on LCD show “1” for both Audio
and Video.
