VAX Matrix Switching System—User Manual
25
the Deselect all output key). This way, you have selected audio switching of input 02 and output
08.
Upon completion of the above 4 steps, you have completed the operation of switching video
channel 1 to output channels 1, 6, and 7 while also switching audio channel 2 to output channel
8.
7.0.2.2 Disconnect Function Keys
Close all the unused output ports.
A specific example of operation is described below:

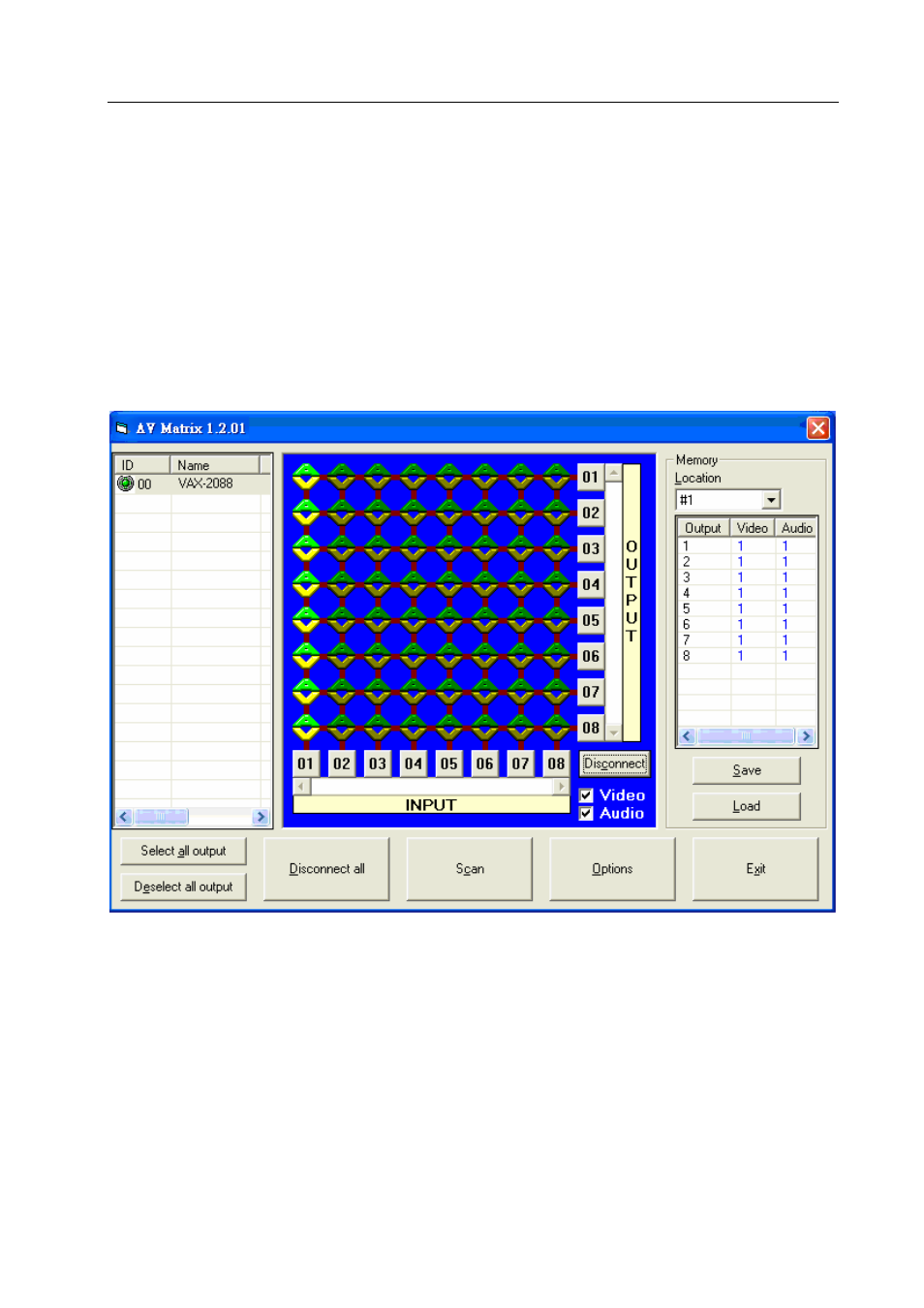

The present input and output relations are shown in Figure 7-2 below:
Figure 7-2
Now, you have to close the output ports 03、05、and 06.
Step 1: First press down the output number keys 03, 05 and 06 to the right;
Step 2: Press the “Disconnect” key;
Step 3: Press the previously-pressed output number keys 03, 05 and 06 (or press the
“Deselect all output” key) to complete the operation.
The final results will be as shown in Figure 7-3 below:
