Matrix Switching System—User Manual
21
2. Press the NO.1 key of the
Input channel for 2 seconds.
3. Press the ALL key on the
front panel, and then press the
OFF key to cancel all the
settings.

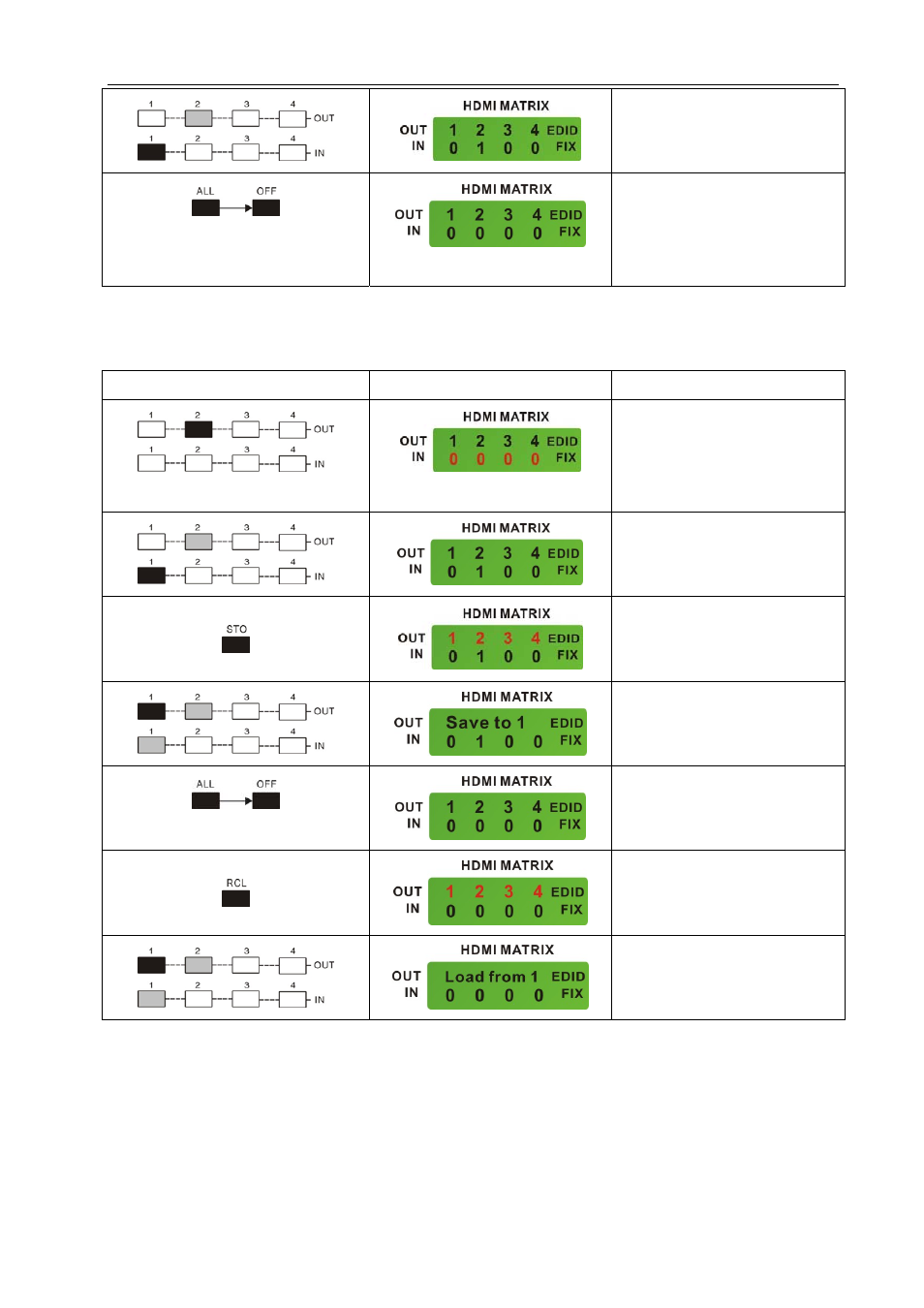

Example 4: “STO” and “RCL” functions.
Key LCD Display Operation
1. Press the NO.2 key of the
output channel for 2 seconds,
then the input channels will
begin to flicker.
2. Press the NO.1 key of the
Input channel for 2 seconds.
3. Press the STO key on the
front panel, then the OUT
channels will begin to flicker.
4. Press the NO.1 key of the
output channel to save the
setting in the NO.1 channcel.
5. Press the ALL key on the
front panel, and then press the
OFF key to cancel the setting.
6. Press the RCL key on the
front panel, then the OUT
channels will begin to flicker.
7. Press the NO.1 key of the
output channel to Load the
previously saving.
