Matrix Switching System—User Manual
19

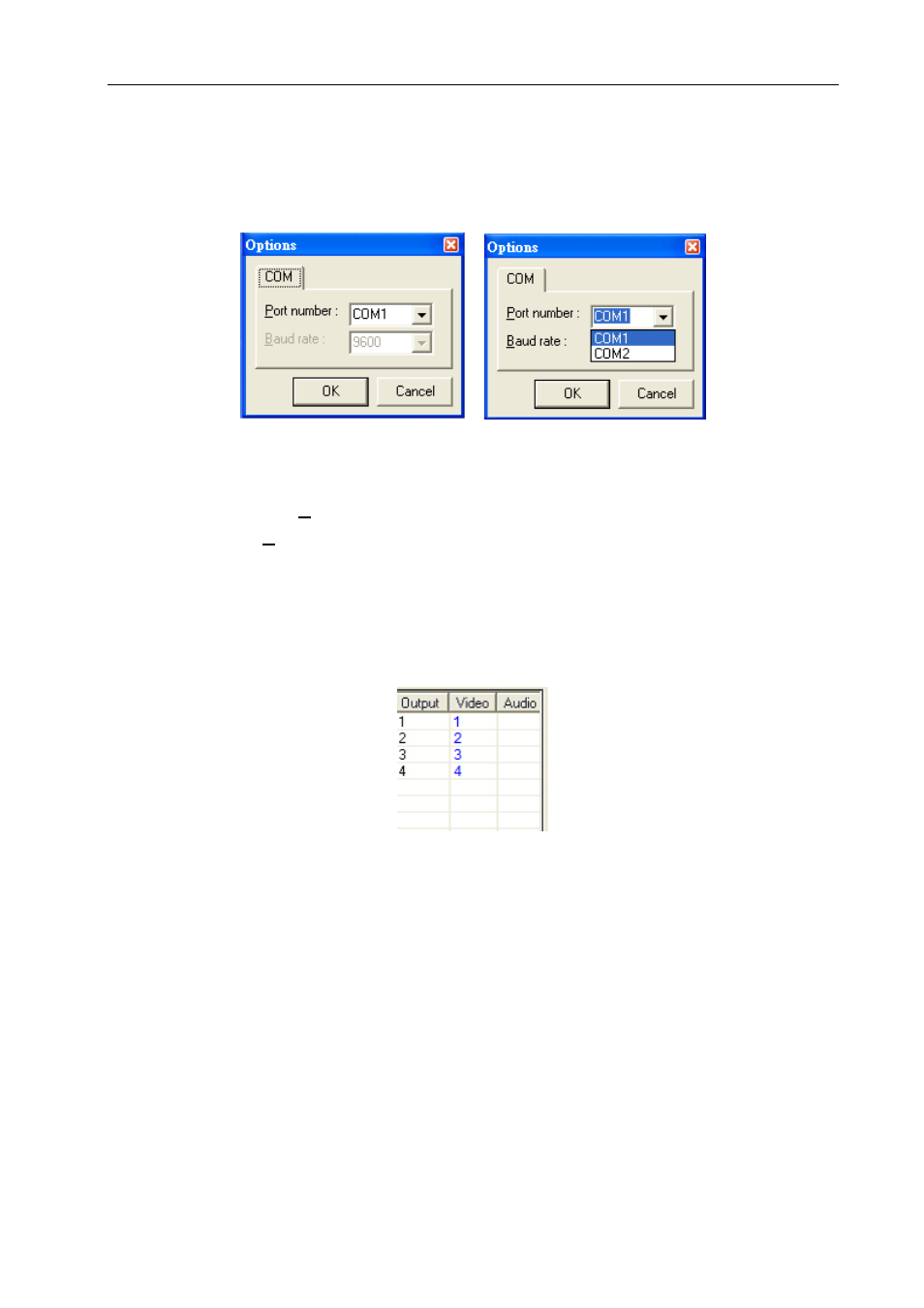

6.0.2.6 Options Function
Activation Function:
In the main configuration menu, select Options to prop up the Options Window as
shown in Figure 6-6（a）
Figure 6-6（a） Figure 6-6（b）
Function Description:
Linking Methods: In “Port number” select either COM1 port or COM2 port as shown in
Figure 6-6 （b）; in “Baud rate” select 9600 for signal transmission as shown in Figure 6-6
（a）
6.0.2.7 Other Application
Displays the presently saved switching status as shown in Figure 6-7 below:
Figure 6-7
When input corresponding to Output is enabling, it shows the Output ports correspond to
the Input ports; when they are disable it will show red “None” in the relative field.
