Matrix Switching System—User Manual
18
6.0.2.4 Disconnect all Command
Function Description: To disable all the switching functions. Press the “Disconnect
all” key to disable all the connections of input and output ports.
6.0.2.5 Memory Function
Function Description: To store and retrieve the settings.
Store Functin Description: The Store Function saves all the present input/output
switching relations to any Locations from #1 to #4 you desired.
A specific example of the Store Function is described below:

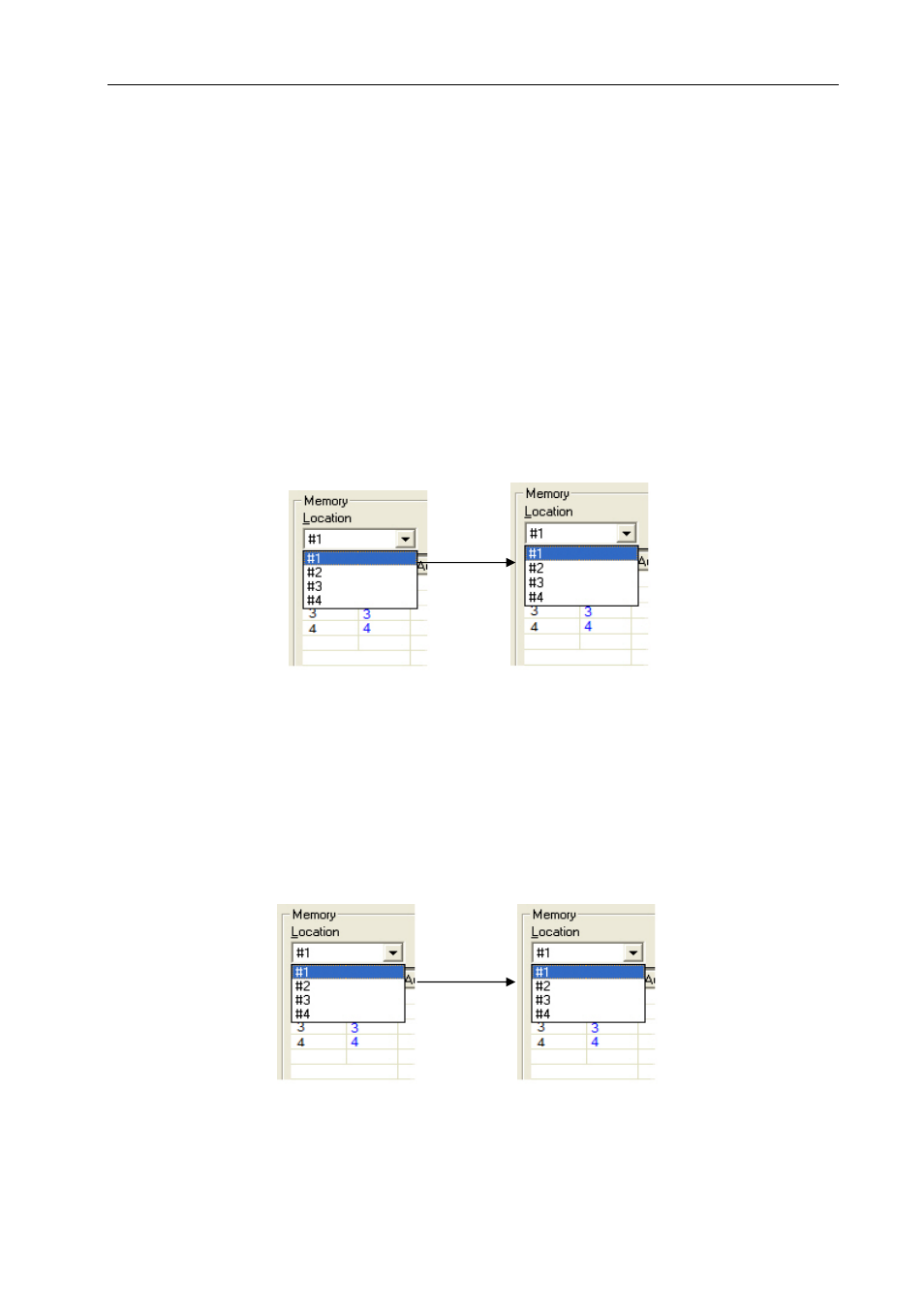

Stores all the present input/output switching relations to Location #1. First, select
Location #1, as shown in the figure below. Then click the Save key to save all the
present input/output switching relations to Location #1.
Figure 6-4
Retrieve Function Description: To retrieve the saved input/output switching relations.
A specific example of the Retrieve Function is described below:
To retrieve the input/output corresponding relations saved in Location #1. First, select
Location #1 as shown in the figure below. Then click the Load key to retrieve all the
input/output corresponding relations stored in Location #1.
,
Figure 6-5
