Matrix Switching System—User Manual
13
6.0.2 Software Features
The software controls signal connection between the corresponding input port and
output port as required. The main configuration screen is as below:

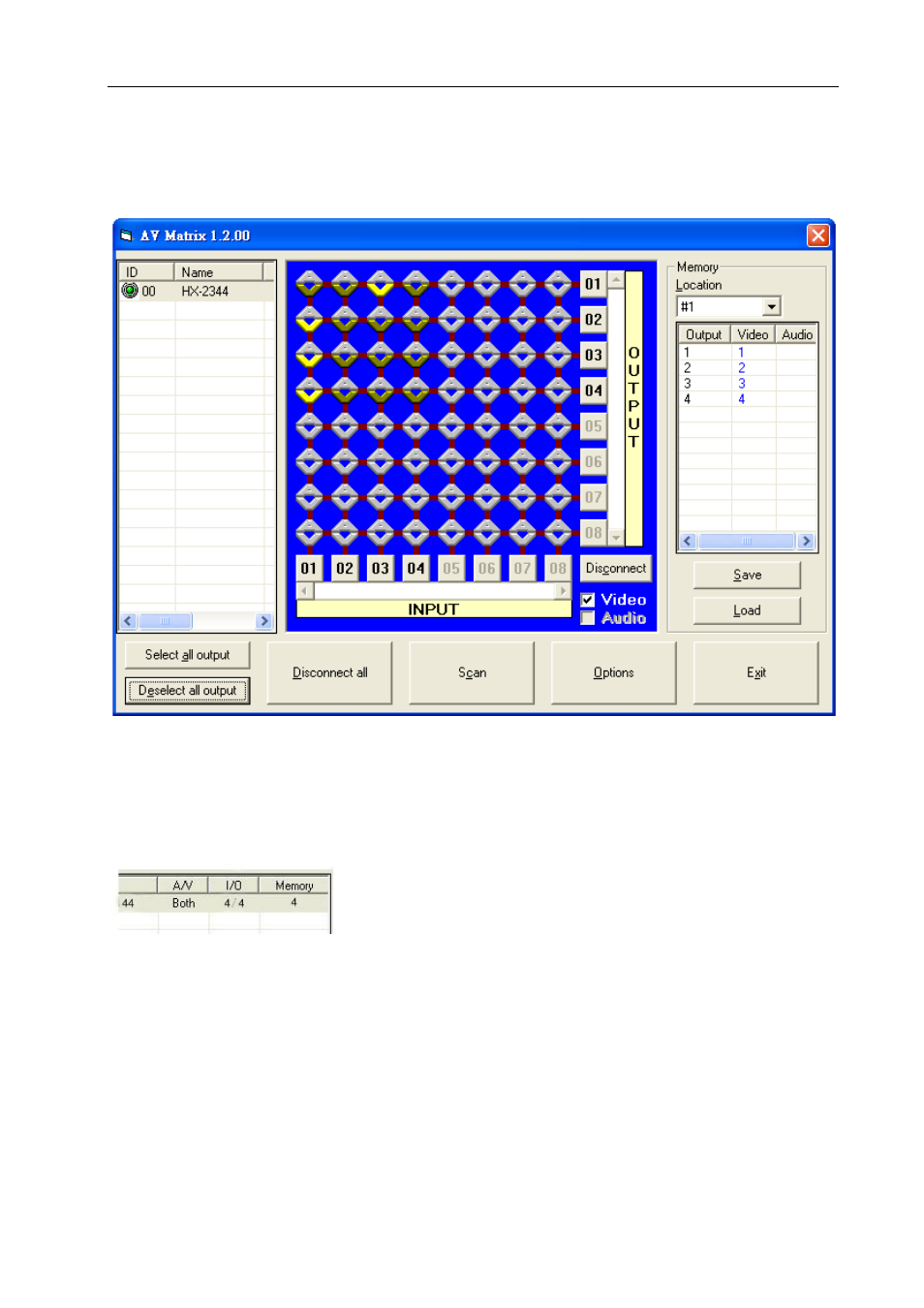

Figure 6-1 《AV Matrix》Software Configuration Screen
) HX-2344 is integrated Video/Audio switching equipment; please select the Video
check box before you begin to operate the software.
Scroll on the left area of the main screen to view contents as shown below.
